Frame support parts Support head
- Support head
- Used to secure the pipe frame and support the conveyor frame from directly below.
-
Purpose
Supports the conveyor frame from directly below.
Use to secure pipe frames.
Wiring inside the support head is also possible.
-
Usage image
[Click to enlarge]
[Click to enlarge]
Control panel installation
[Click to enlarge]
[Click to enlarge]

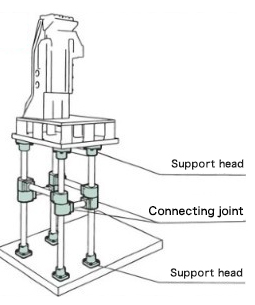

Use as an attachment
[Click to enlarge]
[Click to enlarge]
For a list of frame support parts and applicable part combinations for each pipe, please refer to the applicable part combination table by pipe size below.
Support head list
| Model number | TP-CPSH48 | TP-CPSH60 |
|---|---|---|
| type | - | |
| Pipe nominal diameter mm | Φ48.6 | Φ60.5 |
| Pipe outer diameter mm | 1½ | 2 |
| Bolt size | - | |
| shape |  |
|
| Body material | reinforced polyamide | |
| Body exterior color | black | |
| Bolt, nut and washer materials | stainless steel | |
| Bolt Material | - | |
| Bush Material | - | |
| Nut Material | - | |
| Foot bolt and nut material | - | |
| Anti-slip rubber pad material | - | |
| Anti-slip rubber pad exterior color | - | |
| MB equivalent product | - | |
| Model number | TP-C14050T-BH | TP-C14741T-BH | TP-C14739T-BH |
|---|---|---|---|
| type | Mounting hole fixing | Variable mounting holes | |
| Pipe nominal diameter mm | Φ48.6 | Φ60.5 | |
| Pipe outer diameter mm | 1½ | 2 | |
| Bolt size | - | ||
| shape |  |
 |
|
| Body material | reinforced polyamide | ||
| Body exterior color | black | ||
| Bolt, nut and washer materials | stainless steel | ||
| Bolt Material | - | ||
| Bush Material | - | ||
| Nut Material | - | ||
| Foot bolt and nut material | - | ||
| Anti-slip rubber pad material | - | ||
| Anti-slip rubber pad exterior color | - | ||
| MB equivalent product | MB198-59161-BH | MB28-63503-BH | MB280-66781-BH |
