Support head
Use it to secure the pipe to the frame. It can also be used to route wiring inside the support head.
[Click to enlarge]
| Model number | Material | color | Outer diameter of pipe used ΦDf (Nominal diameter) |
Outer diameter ΦA |
MB equivalent product | DXF Drawing data |
標準価格 | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | bolt, nut, Washer |
|||||||||

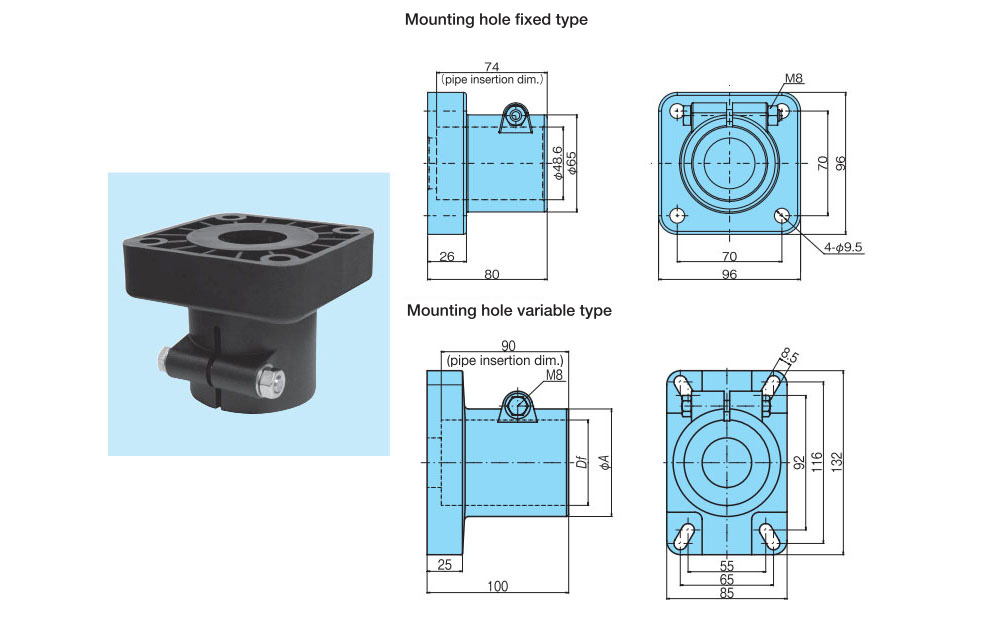

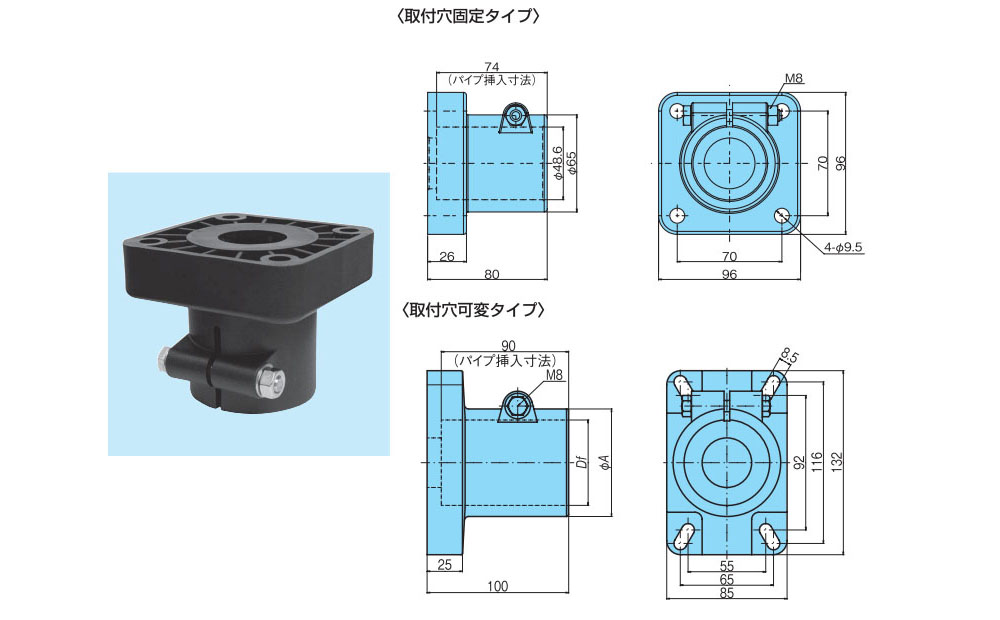

| TP-C14050T-BH | reinforced polyamide | stainless steel | black | 48.6 (1½) | 65 | MB198-59161-BH | DXF | Please contact us |
Please contact us |
|
| Model number | Material | color | Outer diameter of pipe used ΦDf (Nominal diameter) |
Outer diameter ΦA |
MB equivalent product | DXF Drawing data |
標準価格 | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | bolt, nut, Washer |
|||||||||

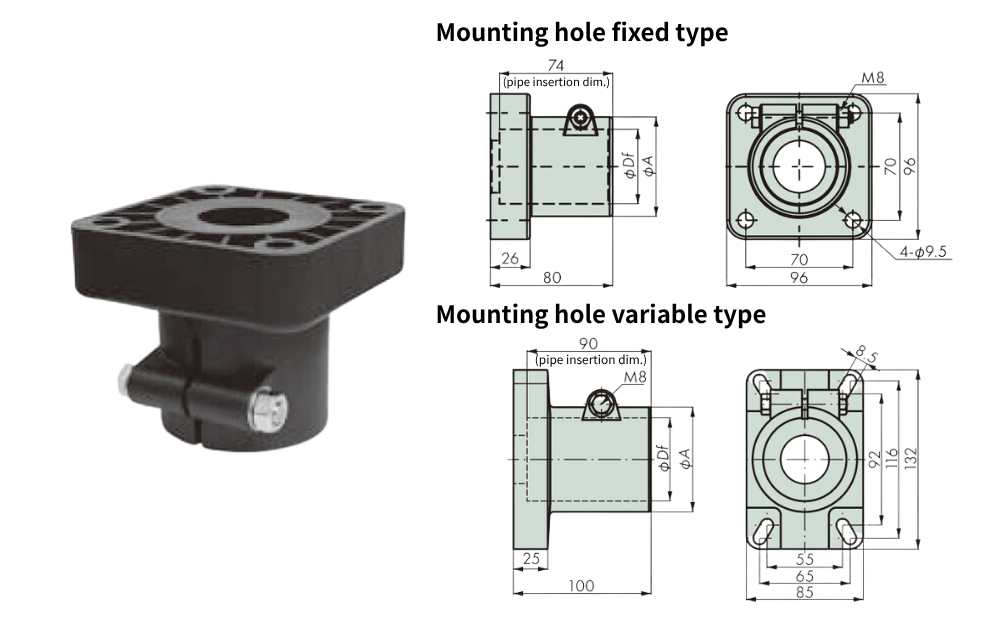

| TP-C14741T-BH | reinforced polyamide | stainless steel | black | 48.6 (1½) | 65 | MB280-63503-BH | DXF | Please contact us |
Please contact us |
|
| TP-C14739T-BH | 60.5 (2) | 76 | MB280-66781-BH | DXF | Please contact us |
Please contact us |
||||
[Click to enlarge]
| Model number | Material | color | Outer diameter of pipe used ΦDf (Nominal diameter) |
DXF Drawing data |
標準価格 | Delivery | PDF Dimensions |
3DCAD | |
|---|---|---|---|---|---|---|---|---|---|
| Main unit | bolt, nut, Washer |
||||||||

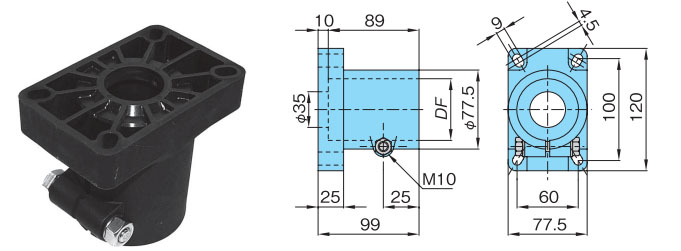

| TP-CPSH48 | reinforced polyamide | stainless steel | black | 48.6 (1½) | DXF | Please contact us |
Please contact us |
3DCAD | |
| TP-CPSH60 | 60.5 (2) | DXF | Please contact us |
Please contact us |
3DCAD | ||||
