Chain guide parts Return roller/Guide flange
- Return roller/guide flange
- Use as a chain receiver on return-way of the conveyor.
- Note: Cannot be used with accumulation chains or Plastic Roller tables.
-
Purpose
Use as a chain receiver on return-way of the conveyor.
The rotation of the rollers reduces sliding resistance and reduces scratches on the top surface of the chain.
Please use in conjunction with a guide flange.
-
Usage image
[Click to enlarge]
[Click to enlarge]
Return roller/guide flange list
Small diameter return roller
| type | - | ||
|---|---|---|---|
| Model number | TP-RR20650 | TP-RR30850 | TP-RR41050 |
| Other features | - | ||
| Applicable guide flange model number | TP-DP206 | TP-DP308 | TP-DP410 |
| Applicable sprocket model number | - | ||
| Applicable spacer model number | - | ||
| Applicable washer model number | - | ||
| Dedicated rail model number | - | ||
| Applicable sliding shoe model number | - | ||
| shape |  |
||
| Body material | polyamide | ||
| Body exterior color | black | ||
| Outer material | - | ||
| Outer appearance color | - | ||
| Roller exterior color | - | ||
| Pin and hexagon socket bolt material | - | ||
| Outer diameter mm | Φ20 | Φ32 | Φ40 |
| Inner diameter mm | Φ6.5 | Φ8.5 | Φ10.5 |
| Width mm | 49 | ||
| MB equivalent product | - | ||
Return roller
| type | - | |||
|---|---|---|---|---|
| Model number | TP-RR41532 | TP-RR41544 | TP-RR42032 | TP-RR42044 |
| Other features | - | |||
| Applicable guide flange model number | TP-DP415 | TP-DP420 | ||
| Applicable sprocket model number | - | |||
| Applicable spacer model number | - | |||
| Applicable washer model number | - | |||
| Dedicated rail model number | - | |||
| Applicable sliding shoe model number | - | |||
| shape |  |
|||
| Body material | polyamide | |||
| Body exterior color | black | |||
| Outer material | - | |||
| Outer appearance color | - | |||
| Roller exterior color | - | |||
| Pin and hexagon socket bolt material | - | |||
| Outer diameter mm | Φ40 | |||
| Inner diameter mm | Φ15.5 | Φ20.5 | ||
| Width mm | 82 | 114 | 82 | 114 |
| MB equivalent product | - | |||
| type | - | |||
|---|---|---|---|---|
| Model number | TP-RR61532 | TP-RR61544 | TP-RR62032 | TP-RR62044 |
| Other features | - | |||
| Applicable guide flange model number | TP-DP615 | TP-DP620 | ||
| Applicable sprocket model number | - | |||
| Applicable spacer model number | - | |||
| Applicable washer model number | - | |||
| Dedicated rail model number | - | |||
| Applicable sliding shoe model number | - | |||
| shape | |
|||
| Body material | polyamide | |||
| Body exterior color | black | |||
| Outer material | - | |||
| Outer appearance color | - | |||
| Roller exterior color | - | |||
| Pin and hexagon socket bolt material | - | |||
| Outer diameter mm | Φ60 | |||
| Inner diameter mm | Φ15.5 | Φ20.5 | ||
| Width mm | 82 | 114 | 82 | 114 |
| MB equivalent product | - | |||
Small diameter return rollers and return roller guide flanges
| type | - | |
|---|---|---|
| Model number | TP-DP206 | TP-DP308 |
| Other features | - | |
| Applicable return roller model number | TP-RR20650 | TP-RR30850 |
| Applicable sprocket model number | - | |
| Applicable spacer model number | - | |
| Applicable washer model number | - | |
| Dedicated rail model number | - | |
| Applicable sliding shoe model number | - | |
| shape |  |
|
| Body material | polyamide | |
| Body exterior color | black | |
| Outer material | - | |
| Outer appearance color | - | |
| Roller exterior color | - | |
| Pin and hexagon socket bolt material | - | |
| Outer diameter mm | Φ32 | Φ45 |
| Inner diameter mm | Φ6.5 | Φ8.5 |
| Width mm | - | |
| MB equivalent product | - | |
| type | - | ||
|---|---|---|---|
| Model number | TP-DP410 | TP-DP415 | TP-DP420 |
| Other features | - | ||
| Applicable return roller model number | TP-RR41050 | TP-RR41532, TP-RR41544 | TP-RR42032, TP-RR42044 |
| Applicable sprocket model number | - | ||
| Applicable spacer model number | - | ||
| Applicable washer model number | - | ||
| Dedicated rail model number | - | ||
| Applicable sliding shoe model number | - | ||
| shape | |
||
| Body material | polyamide | ||
| Body exterior color | black | ||
| Outer material | - | ||
| Outer appearance color | - | ||
| Roller exterior color | - | ||
| Pin and hexagon socket bolt material | - | ||
| Outer diameter mm | Φ55 | ||
| Inner diameter mm | Φ10.5 | Φ16 | Φ21 |
| Width mm | - | ||
| MB equivalent product | - | ||
| type | - | |
|---|---|---|
| Model number | TP-DP615 | TP-DP620 |
| Other features | - | |
| Applicable return roller model number | TP-RR61532, TP-RR61544 | TP-RR62032, TP-RR62044 |
| Applicable sprocket model number | - | |
| Applicable spacer model number | - | |
| Applicable washer model number | - | |
| Dedicated rail model number | - | |
| Applicable sliding shoe model number | - | |
| shape | |
|
| Body material | polyamide | |
| Body exterior color | black | |
| Outer material | - | |
| Outer appearance color | - | |
| Roller exterior color | - | |
| Pin and hexagon socket bolt material | - | |
| Outer diameter mm | Φ80 | |
| Inner diameter mm | Φ16 | Φ21 |
| Width mm | - | |
| MB equivalent product | - | |
Left and right split return roller
| type | - | |||
|---|---|---|---|---|
| Model number | TP-C122113NT-RR | TP-C12535NT-RR | TP-C122116NT-RR | TP-C12536NT-RR |
| Other features | Without guide flange | With guide flange | ||
| Applicable guide flange model number | TP-C12842T-GF | TP-C12534T-GF | - | |
| Applicable sprocket model number | - | |||
| Applicable spacer model number | - | |||
| Applicable washer model number | - | |||
| Dedicated rail model number | - | |||
| Applicable sliding shoe model number | - | |||
| shape |  |
 |
||
| Body material | polyamide | |||
| Body exterior color | black | |||
| Outer material | - | |||
| Outer appearance color | - | |||
| Roller exterior color | - | |||
| Pin and hexagon socket bolt material | - | |||
| Outer diameter mm | Φ60 | Φ75 | ||
| Inner diameter mm | Φ15.5 | Φ20.5 | Φ15.5 | Φ20.5 |
| Width mm | 40.5 | 43 | ||
| MB equivalent product | MB554-695141-RR | MB554-695171-RR | MB556-695221-RR | MB556-695251-RR |
Guide flange (left and right split return roller guide flange not included)
| type | - | |
|---|---|---|
| Model number | TP-C12842T-GF | TP-C12534T-GF |
| Other features | - | |
| Applicable return roller model number | TP-C122113NT-RR | TP-C12535NT-RR |
| Applicable sprocket model number | - | |
| Applicable spacer model number | - | |
| Applicable washer model number | - | |
| Dedicated rail model number | - | |
| Applicable sliding shoe model number | - | |
| shape |  |
|
| Body material | polyamide | |
| Body exterior color | green | |
| Outer material | - | |
| Outer appearance color | - | |
| Roller exterior color | - | |
| Pin and hexagon socket bolt material | - | |
| Outer diameter mm | Φ70 | |
| Inner diameter mm | Φ15.5 | Φ20.5 |
| Width mm | - | |
| MB equivalent product | - | |

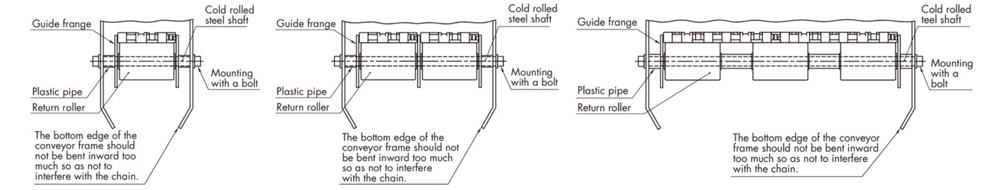

■(Small diameter) return roller/guide flange
■Left and right split return roller/guide flange (for left and right split return rollers without guide flange)
1. Normal
2. When the two chains are moving in opposite directions or at different speeds
Note: If the top plate width is 83mm or more, please adjust it using PVC pipes or something similar instead of distance parts.

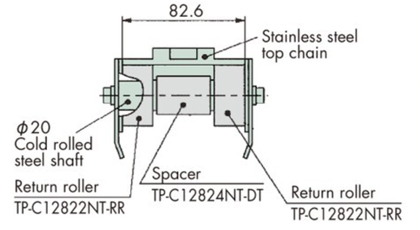

■ Return rollers (for stainless steel Top chain)/spacers
Note: When combined with a plastic chain, the return roller for a stainless steel Top chain will not rotate and the top surface of the plate may wear unevenly.

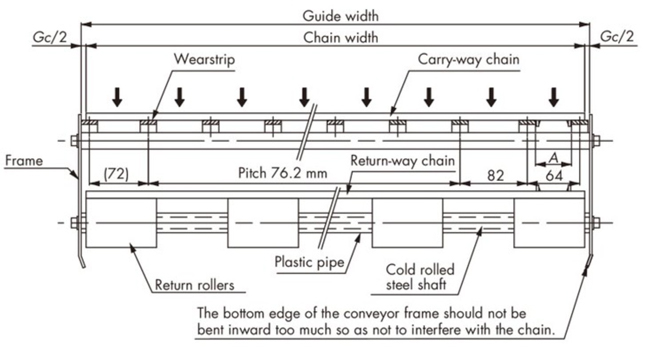

■When used with wide Plastic modular chain
