Return roller
Use the return roller as a support for the top of the chain on the return side of the conveyor.
[Click to enlarge]
| Model number | Shaft diameter Df |
Material | Operating temperature range °C |
color | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|

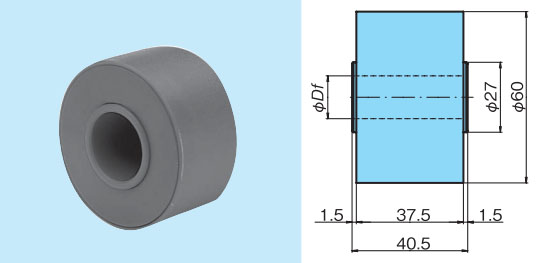

| TP-C122113NT-RR | 15.5 | High-density polyethylene | -20～60 | black | MB554-695141-RR | DXF | Please contact us | Please contact us | |
| TP-C12535NT-RR | 20.5 | MB554-695171-RR | DXF | Please contact us | Please contact us |
Note
1.TP-C12535NT-RR is suitable for wide chains.
[Click to enlarge]
| Model number | Shaft diameter Df |
Material | Operating temperature range °C |
color | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|

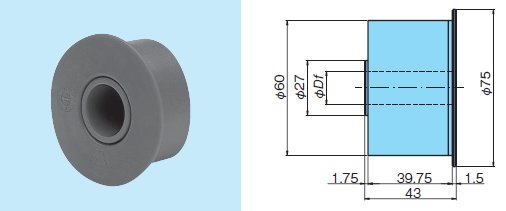

| TP-C122116NT-RR | 15.5 | High-density polyethylene | -20～60 | black | MB556-695221-RR | DXF | Please contact us | Please contact us | |
| TP-C12536NT-RR | 20.5 | MB556-695251-RR | DXF | Please contact us | Please contact us |
Note
1.TP-C12536NT-RR is suitable for wide chains.
[Click to enlarge]
| Model number | size | Material | Operating temperature range °C |
Applicable Guide flange |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | L | Main unit | Outer periphery rubber | ||||||||

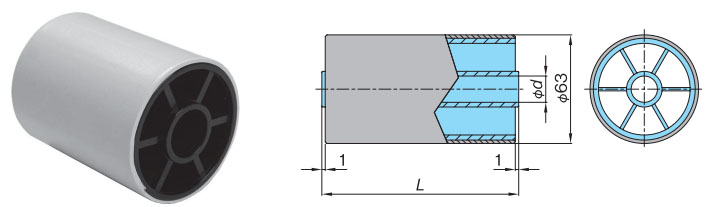

| TP-RR61544-RB | 15.5 | 114 | polyamide | Olefin Elastomer |
-20～80 | TP-DP615 | DXF | Please contact us | Please contact us | 3DCAD | |
| TP-RR62032-RB | 20.5 | 82 | TP-DP620 | DXF | Please contact us | Please contact us | |||||
| TP-RR62044-RB | 20.5 | 114 | TP-DP620 | DXF | Please contact us | Please contact us | |||||
Note
1. This product is made to order.
[Click to enlarge]
| Model number | size | Material | Operating temperature range °C |
Applicable Guide flange |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | d | L | |||||||||

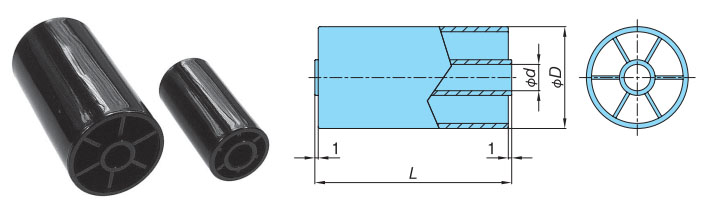

| TP-RR41532 | 40 | 15.5 | 82 | polyamide | -20～80 | TP-DP415 | DXF | Please contact us | Please contact us | 3DCAD | |
| TP-RR41544 | 40 | 15.5 | 114 | TP-DP415 | DXF | Please contact us | Please contact us | ||||
| TP-RR42032 | 40 | 20.5 | 82 | TP-DP420 | DXF | Please contact us | Please contact us | ||||
| TP-RR42044 | 40 | 20.5 | 114 | TP-DP420 | DXF | Please contact us | Please contact us | ||||
| TP-RR61532 | 60 | 15.5 | 82 | TP-DP615 | DXF | Please contact us | Please contact us | ||||
| TP-RR61544 | 60 | 15.5 | 114 | TP-DP615 | DXF | Please contact us | Please contact us | ||||
| TP-RR62032 | 60 | 20.5 | 82 | TP-DP620 | DXF | Please contact us | Please contact us | ||||
| TP-RR62044 | 60 | 20.5 | 114 | TP-DP620 | DXF | Please contact us | Please contact us | ||||
Note
1. For resin chains, please use products with d=15.5.
[Click to enlarge]
| Model number | size | Material | Operating temperature range °C |
Applicable Guide flange |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | d | L | |||||||||
| TP-RR20650 | 20 | 6.5 | 49 | polyamide | -20～80 | TP-DP206 | DXF | Please contact us | Please contact us | 3DCAD | |

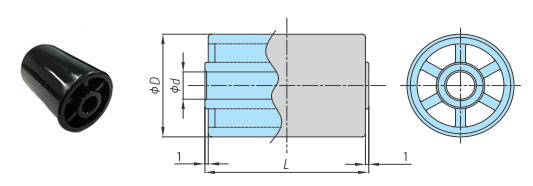

| TP-RR30850 | 32 | 8.5 | 49 | TP-DP308 | DXF | Please contact us | Please contact us | ||||
| TP-RR41050 | 40 | 10.5 | 49 | TP-DP410 | DXF | Please contact us | Please contact us | ||||
Note
1. Applicable chain types: WT0705-W, WT1515-W, WT1516-W, WT1515G-M, BTC4.
2. If the chain width is 50mm, Plastic top chain can also be used.
[Click to enlarge]
| Model number | Shaft diameter Df |
Material | Operating temperature range °C |
color | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|

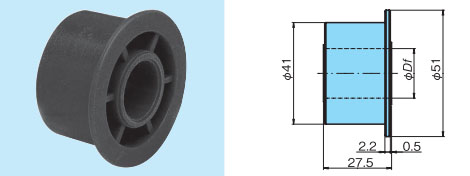

| TP-C12822NT-RR | 20.5 | High-density polyethylene | -20 to 60 (Excluding hot water atmosphere) |
black | MB73-5068-RR | DXF | Please contact us | Please contact us |
Note
1.Please use with a stainless Top chain.
[Click to enlarge]
| Model number | Shaft diameter Df |
Material | Operating temperature range °C |
color | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|

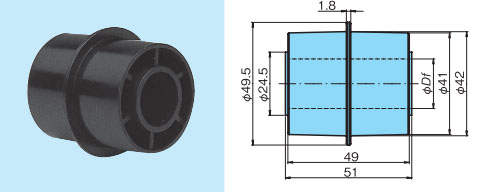

| TP-C12862NT-DR | 20.5 | High-density polyethylene | -20 to 60 (Excluding hot water atmosphere) |
black | MB125-68873-DR | DXF | Please contact us | Please contact us |
Note
1.Please use with a stainless Top chain.

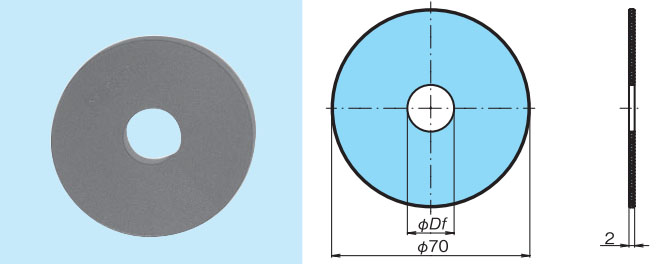

Guide flange (for left and right split type)
[Click to enlarge]
| Model number | Shaft diameter Df |
Material | Operating temperature range °C |
color | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| TP-C12842T-GF | 15.5 | polypropylene | 0～80 | green | MB555-695181-GF | DXF | Please contact us | Please contact us | |
| TP-C12534T-GF | 20.5 | MB555-695211-GF | DXF | Please contact us | Please contact us |
Note
1. Use in conjunction with the left and right split return rollers.
Guide flange
[Click to enlarge]
| Model number | size | Material | Operating temperature range °C |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | |
|---|---|---|---|---|---|---|---|---|---|
| D | d | ||||||||
| TP-DP206 | 32 | 6.5 | polyamide | -20～80 | DXF | Please contact us | Please contact us | 3DCAD | |
| TP-DP308 | 45 | 8.5 | DXF | Please contact us | Please contact us | ||||
| TP-DP410 | 55 | 10.5 | DXF | Please contact us | Please contact us | ||||
| TP-DP415 | 55 | 16 | DXF | Please contact us | Please contact us | ||||
| TP-DP420 | 55 | 21 | DXF | Please contact us | Please contact us | ||||
| TP-DP615 | 80 | 16 | DXF | Please contact us | Please contact us | ||||
| TP-DP620 | 80 | 21 | DXF | Please contact us | Please contact us | ||||
