Top Roller Chains
- Based on each conveyor chain specification, a top roller is attached to the top of the chain mid-pitch, and this top roller directly transports the transported goods.
- Top rollers can also be manufactured using engineering plastic or with bearing rollers.
- *Standard sprockets cannot be used. A special sprocket is required, so please contact us for details.
Catalogs and Instruction Manuals
Purpose
- - When the chain is running continuously and the transported items are accumulated or temporarily stopped at the stopper on the conveyor.

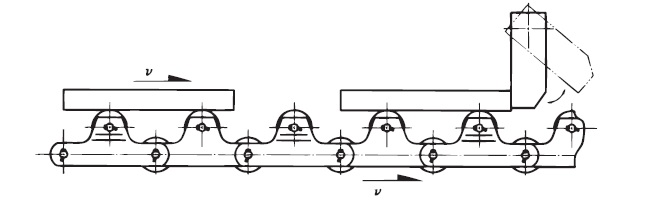

- - When transport and stopping work are carried out simultaneously on the same chain.

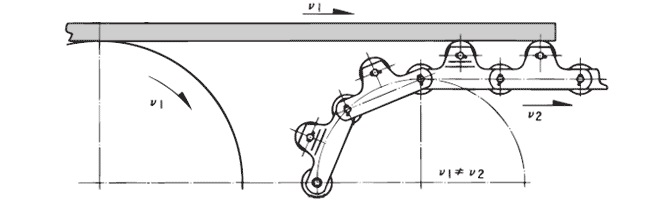

- - Reduces shock when transferring onto a conveyor
Product List
※Click to display detailed information
* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.
*Please contact us for average tensile strength.
| size | Roller Type |
Pitch | Roller Outer diameter |
Inner link Inner width |
Top Roller Outer diameter |
||||
|---|---|---|---|---|---|---|---|---|---|
| 75mm | 100mm | 150mm | 152.4mm | 200mm | Φmm | mm | Φmm | ||
| RF03 | R | RF03075R-TR | RF03100R-TR | --- | --- | --- | 31.8 | 16.1 | 40 |
| RF05 | R | --- | RF05100R-TR | RF05150R-TR | --- | --- | 40 | 22 | 40 |
| RF08 | R | --- | --- | RF08150R-TR | --- | --- | 44.5 | 27 | 40 |
| RF10 | R | --- | --- | RF10150R-TR | --- | --- | 50.8 | 30 | 50.8 |
| RF6205 | R | --- | --- | --- | RF6205R-TR | --- | 57.2 | 37.1 | 57.2 |
| RF12 | R | --- | --- | --- | --- | RF12200R-TR | 65 | 37.1 | 65 |
| RF17 | R | --- | --- | --- | --- | RF17200R-TR | 80 | 51.4 | 80 |
