Corrosion Resistant Conveyor Chain　SSA Series

製品写真
  • The wear resistance between SS Series bushing and roller has been improved.
  • -Compared to SS Series, this specification improves wear resistance between the bushing and roller by 1.5 times.
  • - The allowable roller load for the R roller and F roller has also been improved by 1.3 times.
  • ・Operating Ambient Temperature: -20℃ to 200℃
  • *Please contact us for use below -20°C.

*Please also consider the "Screw Lock Link," a connecting link that makes connection and disconnection easy.

バナー画像

Catalogs and Instruction Manuals

Features

Compared to SS Series, SSA Series has improved wear resistance between the bushing and roller.

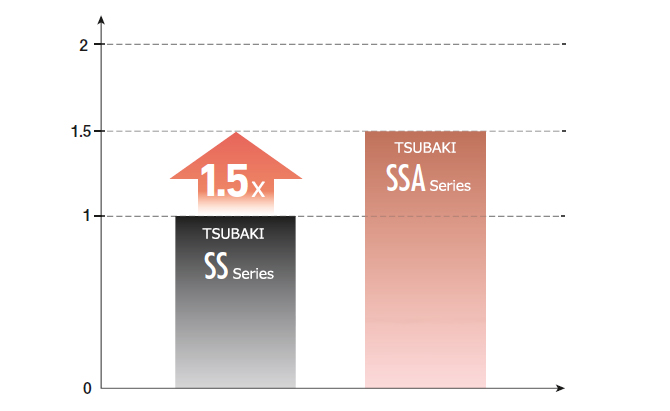

  • - Wear resistance between bush and roller

    ブシュ～ローラ間耐摩耗性能

  • -Comparing wear over the same period of time

    Bush Comparison Roller comparison
    SSA Series ブシュ比較　SSA仕様 ローラ比較　SSA仕様
    SS Series ブシュ比較　SS仕様 ローラ比較　SS仕様

Product List

※Click to display detailed information

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Metric pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
75mm 100mm 125mm 150mm 200mm 250mm 300mm 450mm Φmm mm
RF03 R RF03075R-SSA RF03100R-SSA --- --- --- --- --- --- 31.8 16.1
F RF03075F-SSA RF03100F-SSA --- --- --- --- --- --- 31.8
S RF03075S-SSA RF03100S-SSA --- --- --- --- --- --- 15.9
RF05 R --- RF05100R-SSA RF05125R-SSA RF05150R-SSA --- --- --- --- 40 22
F --- RF05100F-SSA RF05125F-SSA RF05150F-SSA --- --- --- --- 40
S RF05075S-SSA RF05100S-SSA RF05125S-SSA RF05150S-SSA --- --- --- --- 22.2
RF08 R --- --- RF08125R-SSA RF08150R-SSA --- --- --- --- 44.5 27
F --- --- RF08125F-SSA RF08150F-SSA --- --- --- --- 44.5
S --- --- RF08125S-SSA RF08150S-SSA --- --- --- --- 22.2
RF10 R --- RF10100R-SSA RF10125R-SSA RF10150R-SSA --- --- --- --- 50.8 30
F --- --- RF10125F-SSA RF10150F-SSA --- --- --- --- 50.8
S --- RF10100S-SSA RF10125S-SSA RF10150S-SSA --- --- --- --- 29
M --- RF10100M-SSA RF10125M-SSA RF10150M-SSA --- --- --- --- 31.8
RF12 R --- --- --- --- RF12200R-SSA RF12250R-SSA --- --- 65 37.1
F --- --- --- --- RF12200F-SSA RF12250F-SSA --- --- 65
S --- --- --- --- RF12200S-SSA RF12250S-SSA --- --- 34.9
M --- --- --- --- RF12200M-SSA RF12250M-SSA --- --- 38.1
RF17 R --- --- --- --- RF17200R-SSA RF17250R-SSA RF17300R-SSA --- 80 51.4
F --- --- --- --- RF17200F-SSA RF17250F-SSA RF17300F-SSA --- 80
S --- --- --- --- RF17200S-SSA RF17250S-SSA RF17300S-SSA --- 40.1
M --- --- --- --- RF17200M-SSA RF17250M-SSA RF17300M-SSA --- 44.5
RF26 R --- --- --- --- --- RF26250R-SSA RF26300R-SSA RF26450R-SSA 100 57.2
F --- --- --- --- --- RF26250F-SSA RF26300F-SSA RF26450F-SSA 100
S --- --- --- --- RF26200S-SSA RF26250S-SSA RF26300S-SSA RF26450S-SSA 44.5
M --- --- --- --- RF26200M-SSA RF26250M-SSA RF26300M-SSA RF26450M-SSA 50.8
*Pitches other than those listed above may be available. Please contact us for details.
*Inch pitch is a special order product. Please contact us. Return to the top of this page
