Outboard Roller Chains

製品写真
  • This chain is based on the S rollers of each conveyor chain specification and has outboard roller attached.
  • The sprocket meshes with the central S roller and travel is controlled by outboard roller, resulting in stable travel.
  • Conveyor chains can be manufactured to various specifications.

Catalogs and Instruction Manuals

Purpose

  • ・When attaching a special attachment to a plate (Fig. 1)
  • - When it is difficult to support the load with the central S roller
  • ・When it is difficult to guide the return side of the chain
  • - When using R-type outboard roller with double speed or accumulation functions (Fig. 2)

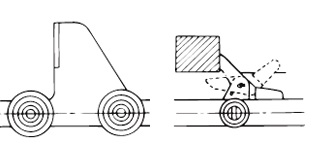

Figure 1: Examples of special attachments

特殊アタッチメントの例

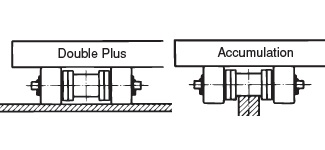

Figure 2: Example of double speed and accumulation

倍速・アキュムレートの例

Product List

※Click to display detailed informationOpen all Close all

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Metric pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
75mm 100mm 125mm 150mm 200mm 250mm 300mm 450mm Φmm mm
RF03 S RF03075S-SR RF03100S-SR --- --- --- --- --- --- 15.9 16.1
RF05 S RF05075S-SR RF05100S-SR RF05125S-SR RF05150S-SR --- --- --- --- 22.2 22
RF10 S --- RF10100S-SR RF10125S-SR RF10150S-SR --- --- --- --- 29 30
RF12 S --- --- --- --- RF12200S-SR RF12250S-SR --- --- 34.9 37.1
RF17 S --- --- --- --- RF17200S-SR RF17250S-SR RF17300S-SR --- 40.1 51.4
RF26 S --- --- --- --- RF26200S-SR RF26250S-SR RF26300S-SR --- 44.5 57.2
RF36 S --- --- --- --- --- RF36250S-SR RF36300S-SR RF36450S-SR 50.8 66.7
*We may be able to produce pitches other than those listed above. Please contact us. Return to top of page

Inch pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
101.6mm 152.4mm Φmm mm
RF430 S RF430S-SR --- 20.1 22.6
RF450 S RF450S-SR --- 22.2 27
RF6205 S --- RF6205S-SR 34.9 37.1
