Corrosion Resistant Conveyor Chain　GSA Series

製品写真
  • This is a higher specification than GS Series, with improved wear resistance and Maximum allowable load.
  • - Compared to GS Series, wear resistance between the bushing and roller is doubled, wear resistance between the pin and bushing is 1.5 times greater, and Maximum allowable load and allowable load on the R roller and F roller are 1.3 times greater.
  • Ambient temperature: -20°C* to 200°C
  • *Please contact us for use below -20°C.

Features

Compared to the GS GS Series, GSA Series has improved wear resistance and Maximum allowable load.

  • - 1.5 times the wear resistance between pins and bushes

    Wear resistance between pin and bush (compared to in-house tests)

    ピン～ブシュ間の耐摩耗性能1.5倍

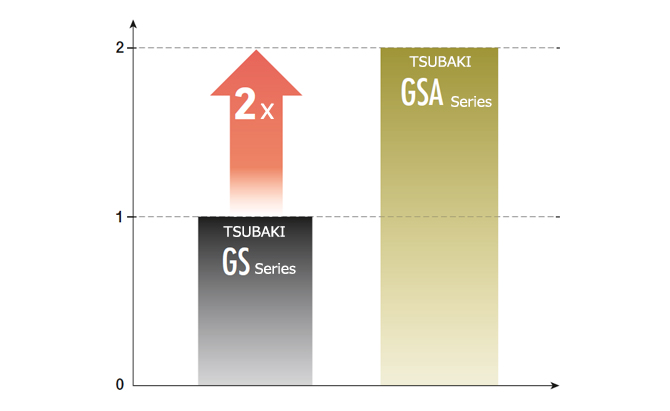

  • - Wear resistance between bushing and roller doubled

    Bush-roller wear resistance (compared to in-house testing)

    ブシュ～ローラ間の耐摩耗性能2倍

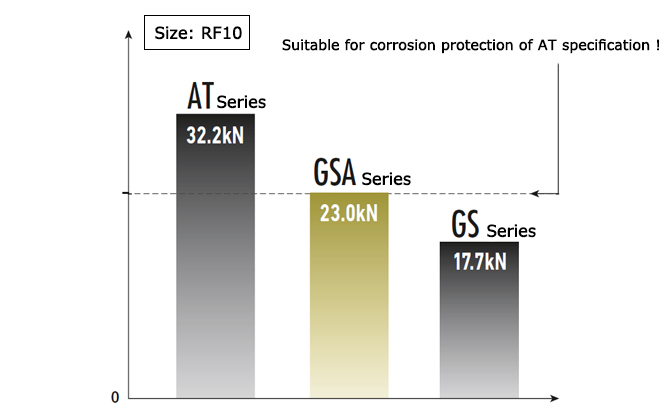

  • -Maximum allowable load, R roller, F roller allowable load 1.3 times

    Comparison of Maximum allowable load (compared to in-house experiments)

    最大許容張力、Rローラ、Fローラ許容負荷1.3倍

Catalogs and Instruction Manuals

Product List

※Click to display detailed information

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Metric pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
75mm 100mm 125mm 150mm 200mm 250mm 300mm 450mm Φmm mm
RF03 R RF03075R-GSA RF03100R-GSA --- --- --- --- --- --- 31.8 16.1
F RF03075F-GSA RF03100F-GSA --- --- --- --- --- --- 31.8
S RF03075S-GSA RF03100S-GSA --- --- --- --- --- --- 15.9
RF05 R --- RF05100R-GSA RF05125R-GSA RF05150R-GSA --- --- --- --- 40 22
F --- RF05100F-GSA RF05125F-GSA RF05150F-GSA --- --- --- --- 40
S RF05075S-GSA RF05100S-GSA RF05125S-GSA RF05150S-GSA --- --- --- --- 22.2
RF08 R --- --- RF08125R-GSA RF08150R-GSA --- --- --- --- 44.5 27
F --- --- RF08125F-GSA RF08150F-GSA --- --- --- --- 44.5
S --- --- RF08125S-GSA RF08150S-GSA --- --- --- --- 22.2
RF10 R --- RF10100R-GSA RF10125R-GSA RF10150R-GSA --- --- --- --- 50.8 30
F --- --- RF10125F-GSA RF10150F-GSA --- --- --- --- 50.8
S --- RF10100S-GSA RF10125S-GSA RF10150S-GSA --- --- --- --- 29
M --- RF10100M-GSA RF10125M-GSA RF10150M-GSA --- --- --- --- 31.8
RF12 R --- --- --- --- RF12200R-GSA RF12250R-GSA --- --- 65 37.1
F --- --- --- --- RF12200F-GSA RF12250F-GSA --- --- 65
S --- --- --- --- RF12200S-GSA RF12250S-GSA --- --- 34.9
M --- --- --- --- RF12200M-GSA RF12250M-GSA --- --- 38.1
RF17 R --- --- --- --- RF17200R-GSA RF17250R-GSA RF17300R-GSA --- 80 51.4
F --- --- --- --- RF17200F-GSA RF17250F-GSA RF17300F-GSA --- 80
S --- --- --- --- RF17200S-GSA RF17250S-GSA RF17300S-GSA --- 40.1
M --- --- --- --- RF17200M-GSA RF17250M-GSA RF17300M-GSA --- 44.5
RF26 R --- --- --- --- --- RF26250R-GSA RF26300R-GSA RF26450R-GSA 100 57.2
F --- --- --- --- --- RF26250F-GSA RF26300F-GSA RF26450F-GSA 100
S --- --- --- --- RF26200S-GSA RF26250S-GSA RF26300S-GSA RF26450S-GSA 44.5
M --- --- --- --- RF26200M-GSA RF26250M-GSA RF26300M-GSA RF26450M-GSA 50.8
*Pitches other than those listed above may be available. Please contact us for details.
*Inch pitch is a special order product. Please contact us. Return to the top of this page
