Flow Conveyor Chain

This chain is designed specifically for flow conveyors to transport powder and granular materials in sealed cases.
Under the name "Tsubaki Flow," we boast a long track record of adoption and high technology.
The lineup includes horizontal flow, inclined vertical flow, and grain flow conveyors.
We also offer FA specifications with bushings and rollers that have been specially hardened to improve wear resistance.

*Please also consider the "Screw Lock Link," a connecting link that makes connection and disconnection easy.

Catalogs and Instruction Manuals

Features and attachments

- Flow conveyors transport powder and granular materials in a sealed case, so the materials do not scatter, making them bulk item bulk material conveyors for preventing pollution.
・Based on our extensive experience and track record, we can recommend and provide the most suitable attachments depending on the type of transport, such as horizontal flow, inclined vertical flow, grain flow, and the items being transported.
- The attachment material is standard carbon steel, but stainless steel can also be manufactured.
We will propose the most suitable specifications for the main body material depending on the properties of the transported items. Please contact us for details.
・The types of attachments are as shown in the diagram below. For more information, please check the product details page from the product list.

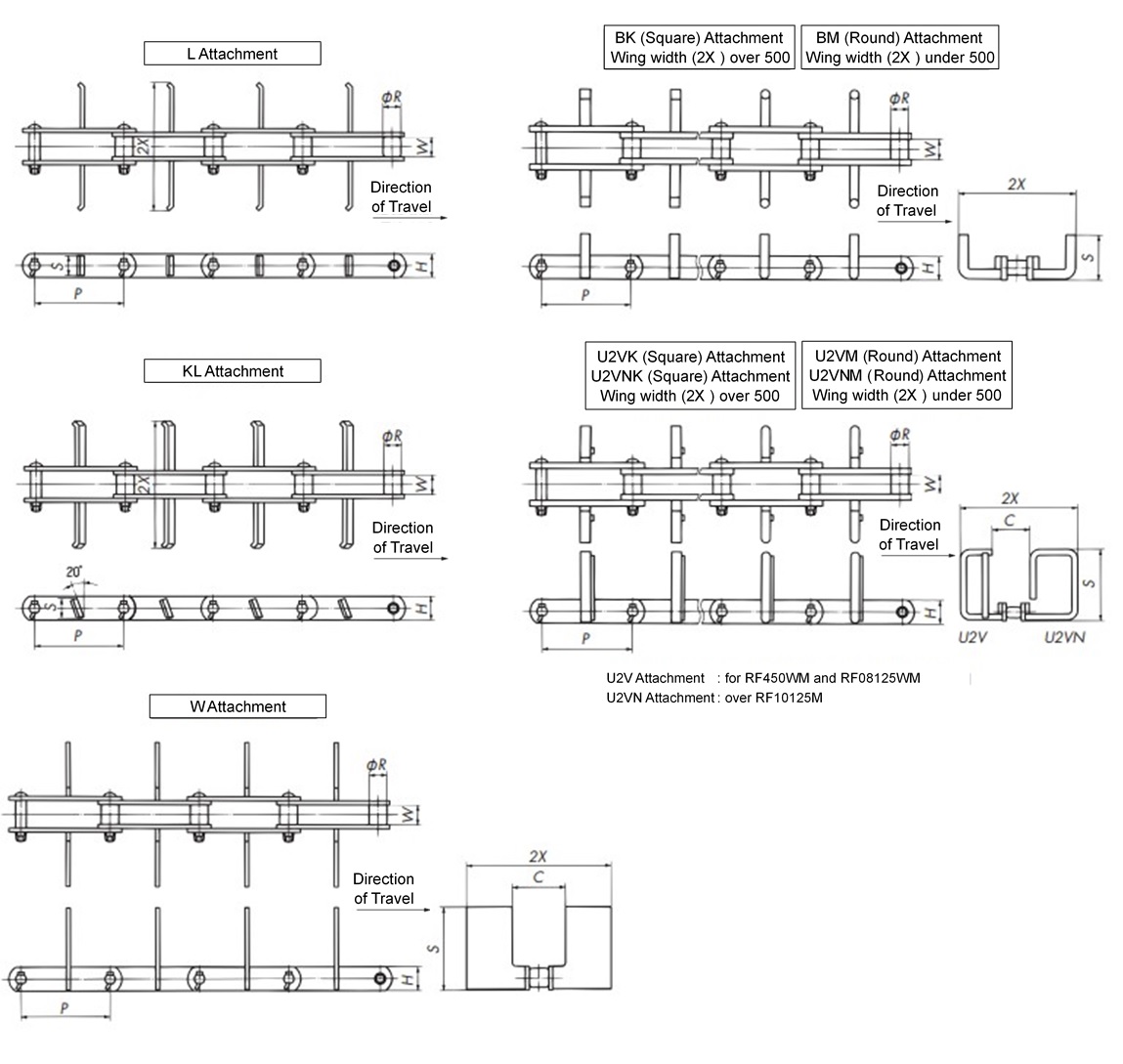

Horizontal Flow Conveyor Chain Attachment Types

- The attachment material is standard carbon steel, but stainless steel can also be manufactured upon request.
・The standard chain body materials are DT Series and AT Series specifications, but other chain specifications can also be selected depending on the nature of the transported goods.
・We recommend the W attachment over the U2V and U2VN attachments in terms of price and delivery time.

Horizontal Flow Conveyor Chain Attachment Types

When installing a flow attachment every two links, it is usually installed on Inner link.
In this case, the attachment format will end with RL (e.g., 2LKL45RL).

Types of Conveyor Chain Attachments for Inclined Vertical Flow

・Attachment type and use

UM (round): For general powder transport
UK (square): For conveying lumpy, powdery or adhesive materials
U2M (round), U2NM (round): For transport with higher transport efficiency than UM
U2K (square), U2NK (square): For transport with higher transport efficiency than UK

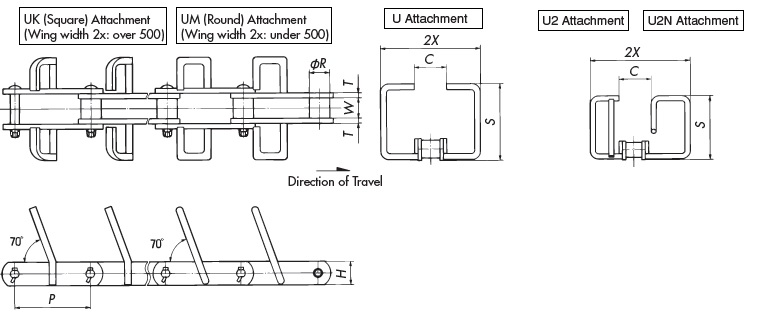

Types of Conveyor Chain Attachments for Inclined Vertical Flow

-When installing a flow attachment every two links, it is usually installed on Inner link.
・In this case, the attachment format will end with RL (e.g. 2LUM32RL).

Product List

※Click to display detailed informationOpen all Close all

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Horizontal flow conveyor chain

Metric pitch

size	Roller Type	Pitch					Roller Outer diameter	Inner link Inner width	case Inner width
size	Roller Type	125mm	150mm	200mm	250mm	300mm	Φmm	mm	mm
RF08W	M	RF08125WM	---	---	---	---	25.4	27	200
RF10	M	RF10125M	RF10150M	---	---	---	31.8	30	200/270
RF12	M	---	---	RF12200M	---	---	38.1	37.1	350
RF17	M	---	---	RF17200M	RF17250M	---	44.5	51.4	350/450
RF26	M	---	---	RF26200M	---	---	50.8	57.2	410
RF26	N	---	---	---	RF26250N	RF26300N	50.8	57.2	450/580
RF36	M	---	---	---	---	RF36300M	57.2	66.7	580
RF36	N	---	---	---	---	RF36300N	57.2	66.7	580

*We may be able to produce pitches other than those listed above. Please contact us. Return to top of page

Inch pitch

size	Roller Type	Pitch		Roller Outer diameter	Inner link Inner width	case Inner width
size	Roller Type	101.6mm	152.4mm	Φmm	mm	mm
RF450W	M	RF450WM	---	25.4	27	150
RF6205	M	---	RF6205M	38.1	37.1	270

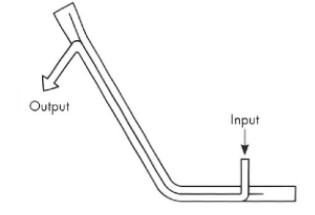

Inclined vertical flow conveyor chain
