General-use, Heavy Duty Conveyor Chain　DTA Series

製品写真
  • DT Series wear-resistant specifications (advanced model)
  • Compared to the DT Series, wear resistance between the bush and roller is tripled.
  • Only R rollers and F rollers are supported.
  • Operating Ambient Temperature: -20℃ to 200℃

*Please also consider the "Screw Lock Link," a connecting link that makes connection and disconnection easy.

バナー画像

Catalogs and Instruction Manuals

Features

Compared to DT Series, DTA Series has improved wear resistance between the bushing and roller.

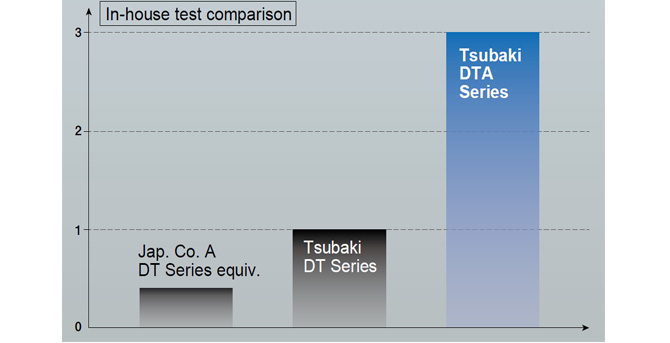

  • - Wear resistance between bush and roller

    ブシュ～ローラ間耐摩耗性能

  • -Comparing wear over the same period of time

    Bush Comparison Roller comparison
    DTA Series ブシュ比較　DTA仕様 ローラ比較　DTA仕様
    DT Series ブシュ比較　DT仕様 ローラ比較　DT仕様

Product List

※Click to display detailed informationOpen all Close all

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Metric pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
75mm 100mm 125mm 150mm 200mm 250mm 300mm 450mm 600mm Φmm mm
RF03 R RF03075R-DTA RF03100R-DTA --- --- --- --- --- --- --- 31.8 16.1
F RF03075F-DTA RF03100F-DTA --- --- --- --- --- --- --- 31.8
RF05 R --- RF05100R-DTA RF05125R-DTA RF05150R-DTA --- --- --- --- --- 40 22
F --- RF05100F-DTA RF05125F-DTA RF05150F-DTA --- --- --- --- --- 40
RF08 R --- --- RF08125R-DTA RF08150R-DTA --- --- --- --- --- 44.5 27
F --- --- RF08125F-DTA RF08150F-DTA --- --- --- --- --- 44.5
RF10 R --- RF10100R-DTA RF10125R-DTA RF10150R-DTA --- --- --- --- --- 50.8 30
F --- --- RF10125F-DTA RF10150F-DTA --- --- --- --- --- 50.8
RF12 R --- --- --- --- RF12200R-DTA RF12250R-DTA --- --- --- 65 37.1
F --- --- --- --- RF12200F-DTA RF12250F-DTA --- --- --- 65
RF17 R --- --- --- --- RF17200R-DTA RF17250R-DTA RF17300R-DTA --- --- 80 51.4
F --- --- --- --- RF17200F-DTA RF17250F-DTA RF17300F-DTA --- --- 80
RF26 R --- --- --- --- --- RF26250R-DTA RF26300R-DTA RF26450R-DTA --- 100 57.2
F --- --- --- --- --- RF26250F-DTA RF26300F-DTA RF26450F-DTA --- 100
RF36 R --- --- --- --- --- --- RF36300R-DTA RF36450R-DTA RF36600R-DTA 125 66.7
F --- --- --- --- --- --- RF36300F-DTA RF36450F-DTA RF36600F-DTA 125
*We may be able to produce pitches other than those listed above. Please contact us. Return to top of page

Inch pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
101.6mm 152.4mm Φmm mm
RF430 R RF430R-DTA --- 38.1 22.6
RF450 R RF450R-DTA --- 44.5 27
F RF450F-DTA --- 44.5
RF650 R --- RF650R-DTA 50.8 30.2
F --- RF650F-DTA 50.8
RF214 R RF214R-DTA --- 44.5 31.6
RF6205 R --- RF6205R-DTA 57.2 37.1
F --- RF6205F-DTA 57.2
RF212 R --- RF212R-DTA 69.9 37.1
*Inch pitch is a special order product. Please contact us. Return to the top of this page
