General-use, Heavy Duty Conveyor Chain　ATA Series

製品写真
  • High-end AT Series (Advanced model)
  • Compared to AT Series, wear resistance between the bush and roller is doubled, wear resistance between the pin and bush is 1.5 times greater, and Maximum allowable load is 1.2 times greater.
  • Compatible with RF08 to RF36 sizes R roller and F roller only.
  • Ambient temperature: -20°C* to 200°C
  • *Please contact us for use below -20°C.

*Please also consider the "Screw Lock Link," a connecting link that makes connection and disconnection easy.

バナー画像

Catalogs and Instruction Manuals

Features

ATA Series has improved wear resistance and Maximum allowable load compared to AT Series.

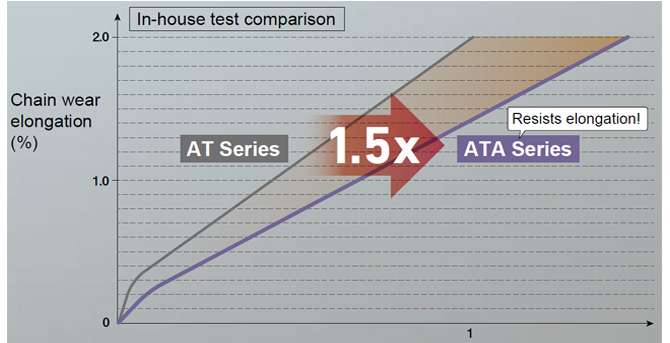

  • - 1.5 times the wear resistance between pins and bushes

    ピン～ブシュ間の耐摩耗性能1.5倍

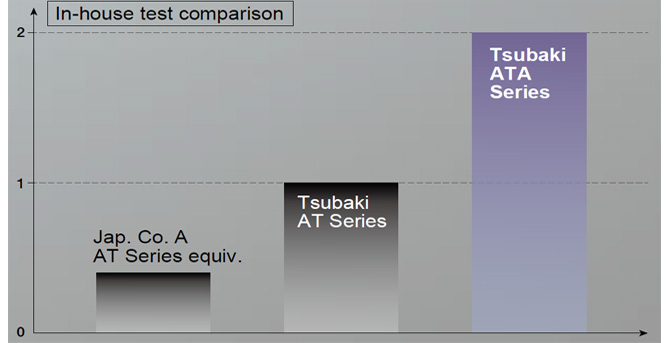

  • - Wear resistance between bushing and roller doubled

    ブシュ～ローラ間の耐摩耗性能2倍

  • ・ Maximum allowable load 1.2 times

* Maximum allowable load is a value set based on fatigue limit, allowable surface pressure, etc.

Product List

※Click to display detailed information

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Metric pitch

size Roller
Type		 Pitch Roller
Outer diameter		 Inner link
Inner width
100mm 125mm 150mm 200mm 250mm 300mm 450mm 600mm Φmm mm
RF08 R --- RF08125R-ATA RF08150R-ATA --- --- --- --- --- 44.5 27
F --- RF08125F-ATA RF08150F-ATA --- --- --- --- --- 44.5
RF10 R RF10100R-ATA RF10125R-ATA RF10150R-ATA --- --- --- --- --- 50.8 30
F --- RF10125F-ATA RF10150F-ATA --- --- --- --- --- 50.8
RF12 R --- --- --- RF12200R-ATA RF12250R-ATA --- --- --- 65 37.1
F --- --- --- RF12200F-ATA RF12250F-ATA --- --- --- 65
RF17 R --- --- --- RF17200R-ATA RF17250R-ATA RF17300R-ATA --- --- 80 51.4
F --- --- --- RF17200F-ATA RF17250F-ATA RF17300F-ATA --- --- 80
RF26 R --- --- --- --- RF26250R-ATA RF26300R-ATA RF26450R-ATA --- 100 57.2
F --- --- --- --- RF26250F-ATA RF26300F-ATA RF26450F-ATA --- 100
RF36 R --- --- --- --- --- RF36300R-ATA RF36450R-ATA RF36600R-ATA 125 66.7
F --- --- --- --- --- RF36300F-ATA RF36450F-ATA RF36600F-ATA 125
*We may be able to produce pitches other than those listed above. Please contact us. Return to top of page
