Block Chain

製品写真
  • This chain is simple, strong, and has excellent rigidity and tensile strength.
  • This chain is made up of two outer plates, one or two Inner link, and a pin, and has excellent structural rigidity and high tensile strength per unit of chain mass, making it very tough.
  • In addition, hardened steel is used for the main parts, making them highly resistant to wear and heat.
  • Normally, dogs are attached to the chain as shown in the diagram below, but we also manufacture dogs for flow applications.

Purpose

  • - Towing carts, etc.
  • ・When transporting high-temperature items (direct loading)
  • ・For draw benches
  • ・We can also manufacture products with flow attachments. Please contact us for details.
  • *Please use sprockets with "pieces" that reduce internal tension.

Dog

There are various types of dogs, but here are the main ones.

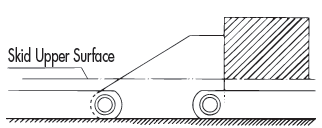

  • ・Fixed dog

    Inner link or outer plate is raised to push the transported items.

    固定式ドッグ

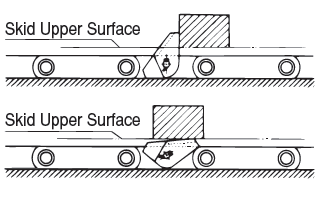

  • ・ Tilting dog

    The items being transported in front are pushed forward in the same way as with a fixed dog, but when an item comes from behind, the dog tilts forward to allow the item to pass.

    Once the transported item has passed, the dog automatically returns to its original position.

    チルチングドッグ

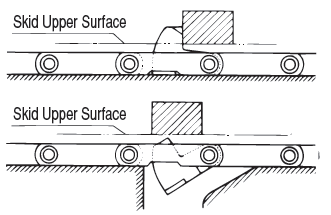

  • ・Ducking Dog

    The dog sends the transported goods along guide channel, but if guide channel is interrupted, the dog ducks and passes underneath, leaving the transported goods behind.

    ダッキングドッグ

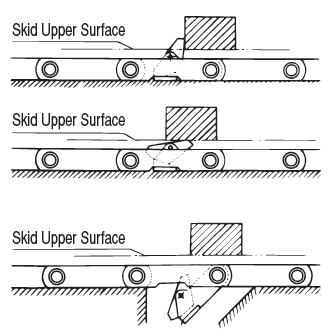

  • ・Tilting, ducking dog

    This dog can be used as both tilting dog and a ducking dog.
    When passing over guide channel, the transported items are pushed forward, and items coming from behind are allowed to pass through as is. When guide channel stops, the transported items pass underneath, leaving them in place.

    チルチング、ダッキングドッグ

Catalogs and Instruction Manuals

Product List

※Click to display detailed information

* Maximum allowable load is a value calculated based on our design standards and is the calculated strength. Unless otherwise specified, Maximum allowable load is used when selecting Large size conveyor chain.
This value varies depending on the manufacturer and is not a guaranteed value.

*Please contact us for average tensile strength.

Metric pitch

size Pitch Inner link
Inner width
150mm 200mm 250mm 300mm 350mm mm
NF30 NF30150 NF30200 --- --- --- 23.3
NF40 NF40150 NF40200 --- --- --- 26.5
NF56 --- NF56200 NF56250 --- --- 29.5
NF63 --- NF63200 NF63250 --- --- 31.5
NF70 --- NF70200 NF70250 --- --- 33.5
NF90 --- NF90200 NF90250 --- --- 38
NF115 --- --- NF115250 NF115300 --- 40
NF140 --- --- NF140250 NF140300 --- 47.5
NF180 --- --- --- NF180300 NF180350 52.5
NF210 --- --- --- NF210300 NF210350 59
NF250 --- --- --- NF250300 NF250350 66
NF280 --- --- --- NF280300 NF280350 67
