Plastic Series Open type TKZP
- Link
Shortening/lengthening
- Cable Carrier (CABLEVEYOR) is easy to handle thanks to Tsubaki's unique zip structure.
- - Can be opened and closed easily by hand without using any tools.
Features

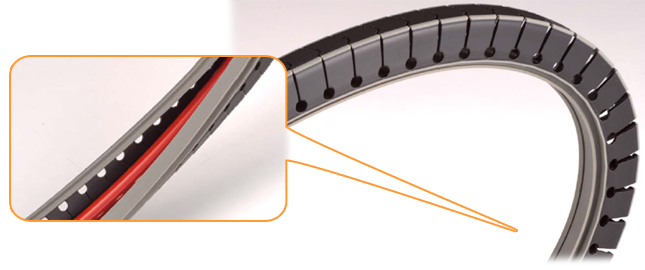

1. Easy to handle and install
Cables and hoses can be inserted simply by folding the sheet and closing the inner zipper, making installation and maintenance easy.

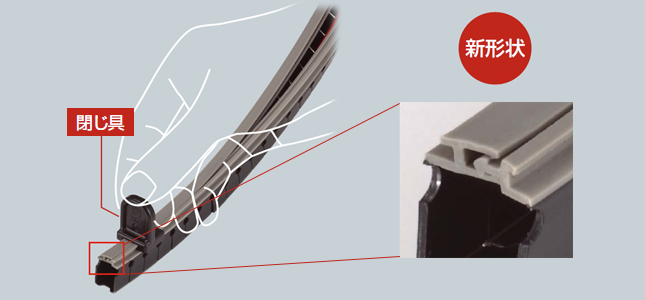

2. Speeding up opening and closing operations
The zipper can be easily closed using the special fastener.
3. Easy to cut
The main body can be easily cut to adjust to the required length.
4. Low noise and low dust generation
The track curves in only one direction, and the short pitch and linkless structure ensure low noise and low dust generation.
Special specifications
Catalogs and Instruction Manuals
Product List
*Click to display detailed information.
| Cables ・Hose Maximum Outer Diameter mm |
Inner Height mm |
Inner width mm |
Allowable bending radius mm |
Pitch mm |
Product name |
|---|---|---|---|---|---|
| 6 | 13 | 10 | 50 | 10 | TKZP10H13-40W10 |
| 15 | TKZP10H13-40W15 | ||||
| 20 | TKZP10H13-40W20 | ||||
| 25 | TKZP10H13-40W25 |
