Cable Carrier (CABLEVEYOR) Steel Series TKV Type Major Specifications

TKV(TKV130)

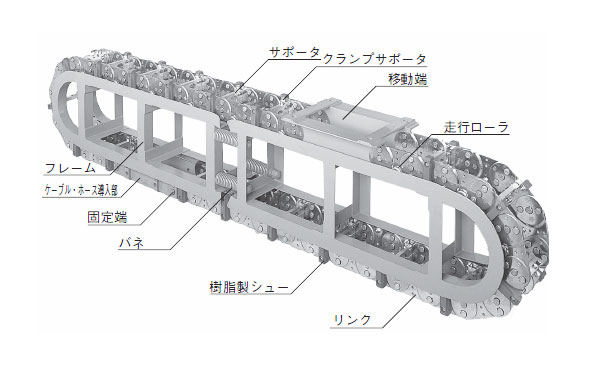

Structure


[Click to enlarge]
PDF outline drawing

Please contact us

DXF Drawing data

Please contact us
(Click here for a list of DXF data)

Catalogs and Instruction Manuals

Basic specifications

It can be used at high speed and high frequency.

Link pitch mm 130
Maximum travel length m 30
Maximum cable/hose outer diameter mm 60
Maximum cable/hose mass kg/m 50
Maximum travel speed m/min 150
Operating temperature range -10ﾟC～80ﾟC
Body material steel
Supporter material aluminum

Note
1. Selection and ordering of this product requires consultation with our company. Please contact us.
2. In addition to the TKV130, we also have a lightweight TKV type (TKV095) in stock.

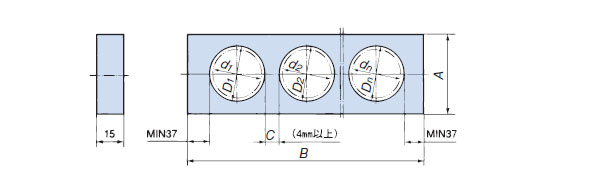

Supporter dimensions


[Click to enlarge]

Unit: mm
Cables and Hoses
Maximum outer diameter
d		 Supporter height
A
Φ46 65
Φ55 75
Φ60 90
Unit: mm
bending radius R Supporter width B
150 200 250 300 350 400
200 ○ ○ ○ ○ ○ ○
250 - ○ ○ ○ ○ ○
300 - - ○ ○ ○ ○
400 - - - ○ ○ ○

Note
1. B dimension can be manufactured even if it is 400 or more, so please contact us.
2. The width and height of the supporter will be manufactured to your order dimensions.

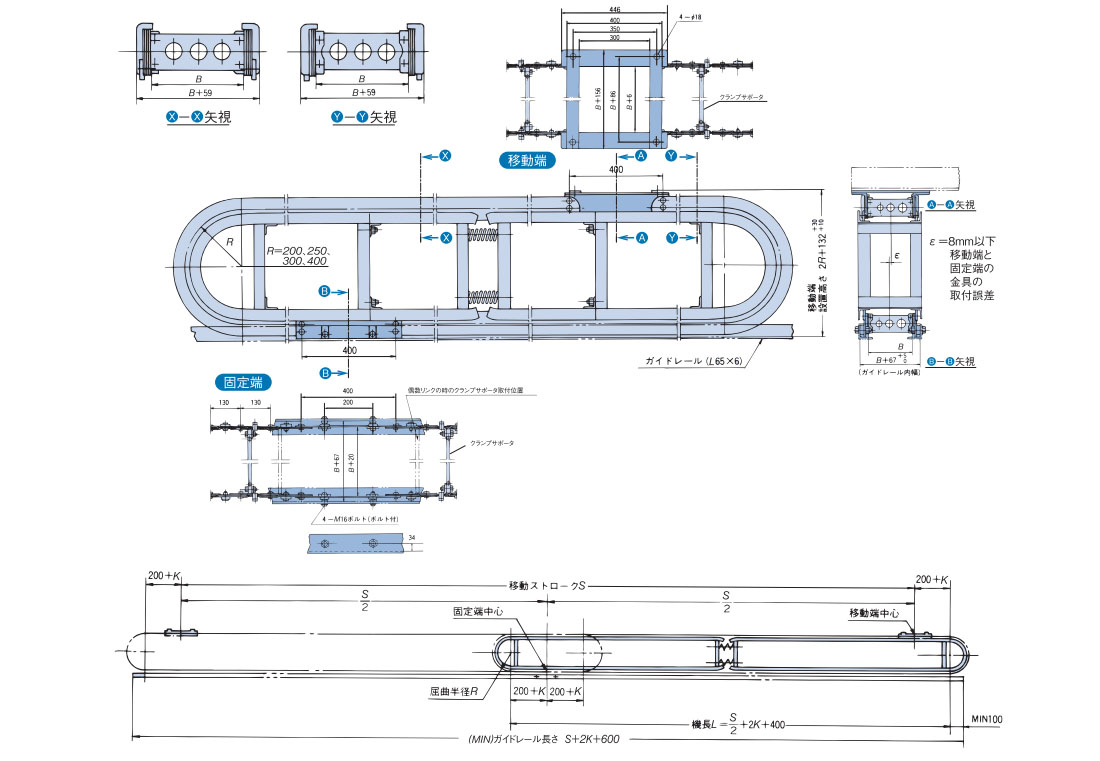

Dimensions


[Click to enlarge]

Note
*Our manufacturing scope: frames, links, supporters (connecting plates)
- The standard paint color is Munsell symbol 2.5B6/2.
- The supporters on both the moving end and fixed end act as clamp supporters to clamp cables and hoses, so please let us know the actual outer diameter.
*Customer installation scope: guide channel, moving end connection fittings, terminal box
