Plastic Series Open type TKQ

Link
Shortening/lengthening

This Cable Carrier (CABLEVEYOR) is quieter, generates less dust, and generates less vibration than the TKP MW specification, allowing for high-speed operation.
- Achieves ISO Class 4 cleanliness (based on our in-house testing results).
-Protects cables and hoses under high speed and high acceleration conditions.

Features

1. Low noise

The short pitch reduces bending noise and collision noise with the floor, resulting in low noise.

・Relationship between pitch and noise

Conventional Cable Carrier (CABLEVEYOR) have a link structure, which causes polygonal movement, resulting in bending noises and collision noises with the floor.

The TKQ type uses a relatively soft resin and Tsubaki's unique special continuous structure, which results in little bending noise, and the bending motion is close to a circular arc, which means there is little impact noise with the floor, making it low noise.

2. Low dust generation

The special continuous structure of the links eliminates sliding wear between the pins and pin holes, reducing dust generation.

3. long life

Wire is built into the side bands, making it highly resistant to bending.

It survived an internal durability test of 12 million strokes without breaking.

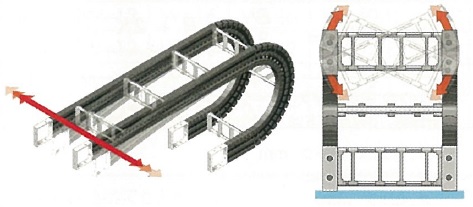

4. flexible

The side bands are flexible and can withstand slight twisting and bending.

5. High speed and high acceleration

It is lightweight and the bending section is close to a circular arc, allowing it to run with low vibration.

(Maximum travel speed m/min 600m/min, maximum acceleration 4G)

6. Supports multi-level partitions

The storage space can be divided into multiple levels, allowing for greater flexibility in layout.

Special specifications

For special specifications, please refer to here.

Catalogs and Instruction Manuals

Product List

*Click to display detailed information. Open all Close all

Cable/hose maximum outer diameter 25mm (TKQ15H28~)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	36	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E36R60
75	TKQ15H28E36R75
90	TKQ15H28E36R90
110	TKQ15H28E36R110
150	TKQ15H28E36R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	44	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E44R60
75	TKQ15H28E44R75
90	TKQ15H28E44R90
110	TKQ15H28E44R110
150	TKQ15H28E44R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	52	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E52R60
75	TKQ15H28E52R75
90	TKQ15H28E52R90
110	TKQ15H28E52R110
150	TKQ15H28E52R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	60	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E60R60
75	TKQ15H28E60R75
90	TKQ15H28E60R90
110	TKQ15H28E60R110
150	TKQ15H28E60R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	68	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E68R60
75	TKQ15H28E68R75
90	TKQ15H28E68R90
110	TKQ15H28E68R110
150	TKQ15H28E68R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	76	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E76R60
75	TKQ15H28E76R75
90	TKQ15H28E76R90
110	TKQ15H28E76R110
150	TKQ15H28E76R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	84	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E84R60
75	TKQ15H28E84R75
90	TKQ15H28E84R90
110	TKQ15H28E84R110
150	TKQ15H28E84R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	92	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E92R60
75	TKQ15H28E92R75
90	TKQ15H28E92R90
110	TKQ15H28E92R110
150	TKQ15H28E92R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	100	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E100R60
75	TKQ15H28E100R75
90	TKQ15H28E100R90
110	TKQ15H28E100R110
150	TKQ15H28E100R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fasten the vertical divider: Slide Type
25	28	108	60	15	Inner and outer circumference of arm Opening and closing type	TKQ15H28E108R60
75	TKQ15H28E108R75
90	TKQ15H28E108R90
110	TKQ15H28E108R110
150	TKQ15H28E108R150

Cable/hose maximum outer diameter 38mm (TKQ20H42 and above)

Open all Close all

Inner width 84mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	84	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E84R100C	TKQ20H42E84R100B	TKQ20H42E84R100A
150	TKQ20H42E84R150C	TKQ20H42E84R150B	TKQ20H42E84R150A
190	TKQ20H42E84R190C	TKQ20H42E84R190B	TKQ20H42E84R190A
250	TKQ20H42E84R250C	TKQ20H42E84R250B	TKQ20H42E84R250A

Inner width 92mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	92	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E92R100C	---	---
150	TKQ20H42E92R150C	---	---
190	TKQ20H42E92R190C	---	---
250	TKQ20H42E92R250C	---	---

Inner width 100mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	100	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E100R100C	---	---
150	TKQ20H42E100R150C	---	---
190	TKQ20H42E100R190C	---	---
250	TKQ20H42E100R250C	---	---

Inner width 108mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	108	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E108R100C	---	---
150	TKQ20H42E108R150C	---	---
190	TKQ20H42E108R190C	---	---
250	TKQ20H42E108R250C	---	---

Inner width 116mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	116	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E116R100C	---	---
150	TKQ20H42E116R150C	---	---
190	TKQ20H42E116R190C	---	---
250	TKQ20H42E116R250C	---	---

Inner width 124mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	124	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E124R100C	TKQ20H42E124R100B	TKQ20H42E124R100A
150	TKQ20H42E124R150C	TKQ20H42E124R150B	TKQ20H42E124R150A
190	TKQ20H42E124R190C	TKQ20H42E124R190B	TKQ20H42E124R190A
250	TKQ20H42E124R250C	TKQ20H42E124R250B	TKQ20H42E124R250A

Inner width 132mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	132	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E132R100C	---	---
150	TKQ20H42E132R150C	---	---
190	TKQ20H42E132R190C	---	---
250	TKQ20H42E132R250C	---	---

Inner width 140mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	140	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E140R100C	---	---
150	TKQ20H42E140R150C	---	---
190	TKQ20H42E140R190C	---	---
250	TKQ20H42E140R250C	---	---

Inner width 148mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	148	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E148R100C	---	---
150	TKQ20H42E148R150C	---	---
190	TKQ20H42E148R190C	---	---
250	TKQ20H42E148R250C	---	---

Inner width 156mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	156	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E156R100C	---	---
150	TKQ20H42E156R150C	---	---
190	TKQ20H42E156R190C	---	---
250	TKQ20H42E156R250C	---	---

Inner width 164mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	164	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E164R100C	---	---
150	TKQ20H42E164R150C	---	---
190	TKQ20H42E164R190C	---	---
250	TKQ20H42E164R250C	---	---

Inner width 172mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
38	42	172	100	20	Inner and outer circumference of arm Opening and closing type	TKQ20H42E172R100C	TKQ20H42E172R100B	TKQ20H42E172R100A
150	TKQ20H42E172R150C	TKQ20H42E172R150B	TKQ20H42E172R150A
190	TKQ20H42E172R190C	TKQ20H42E172R190B	TKQ20H42E172R190A
250	TKQ20H42E172R250C	TKQ20H42E172R250B	TKQ20H42E172R250A

Cable/hose maximum outer diameter 52mm (TKQ25H58~)

Open all Close all

Inner width 122mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	122	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E122R170C	TKQ25H58E122R170B	TKQ25H58E122R170A
200	TKQ25H58E122R200C	TKQ25H58E122R200B	TKQ25H58E122R200A
250	TKQ25H58E122R250C	TKQ25H58E122R250B	TKQ25H58E122R250A
320	TKQ25H58E122R320C	TKQ25H58E122R320B	TKQ25H58E122R320A

Inner width 138mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	138	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E138R170C	---	---
200	TKQ25H58E138R200C	---	---
250	TKQ25H58E138R250C	---	---
320	TKQ25H58E138R320C	---	---

Inner width 154mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	154	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E154R170C	---	---
200	TKQ25H58E154R200C	---	---
250	TKQ25H58E154R250C	---	---
320	TKQ25H58E154R320C	---	---

Inner width 170mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	170	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E170R170C	TKQ25H58E170R170B	TKQ25H58E170R170A
200	TKQ25H58E170R200C	TKQ25H58E170R200B	TKQ25H58E170R200A
250	TKQ25H58E170R250C	TKQ25H58E170R250B	TKQ25H58E170R250A
320	TKQ25H58E170R320C	TKQ25H58E170R320B	TKQ25H58E170R320A

Inner width 186mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	186	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E186R170C	---	---
200	TKQ25H58E186R200C	---	---
250	TKQ25H58E186R250C	---	---
320	TKQ25H58E186R320C	---	---

Inner width 202mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	202	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E202R170C	---	---
200	TKQ25H58E202R200C	---	---
250	TKQ25H58E202R250C	---	---
320	TKQ25H58E202R320C	---	---

Inner width 218mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	218	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E218R170C	TKQ25H58E218R170B	TKQ25H58E218R170A
200	TKQ25H58E218R200C	TKQ25H58E218R200B	TKQ25H58E218R200A
250	TKQ25H58E218R250C	TKQ25H58E218R250B	TKQ25H58E218R250A
320	TKQ25H58E218R320C	TKQ25H58E218R320B	TKQ25H58E218R320A

Inner width 234mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	234	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E234R170C	---	---
200	TKQ25H58E234R200C	---	---
250	TKQ25H58E234R250C	---	---
320	TKQ25H58E234R320C	---	---

Inner width 250mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	250	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E250R170C	---	---
200	TKQ25H58E250R200C	---	---
250	TKQ25H58E250R250C	---	---
320	TKQ25H58E250R320C	---	---

Inner width 266mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
52	58	266	170	25	Inner and outer circumference of arm Opening and closing type	TKQ25H58E266R170C	TKQ25H58E266R170B	TKQ25H58E266R170A
200	TKQ25H58E266R200C	TKQ25H58E266R200B	TKQ25H58E266R200A
250	TKQ25H58E266R250C	TKQ25H58E266R250B	TKQ25H58E266R250A
320	TKQ25H58E266R320C	TKQ25H58E266R320B	TKQ25H58E266R320A

Cable/hose maximum outer diameter 65mm (TKQ30H72 and above)

Open all Close all

Inner width 170mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	170	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E170R180C	TKQ30H72E170R180B	TKQ30H72E170R180A
250	TKQ30H72E170R250C	TKQ30H72E170R250B	TKQ30H72E170R250A
300	TKQ30H72E170R300C	TKQ30H72E170R300B	TKQ30H72E170R300A
370	TKQ30H72E170R370C	TKQ30H72E170R370B	TKQ30H72E170R370A

Inner width 186mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	186	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E186R180C	---	---
250	TKQ30H72E186R250C	---	---
300	TKQ30H72E186R300C	---	---
370	TKQ30H72E186R370C	---	---

Inner width 202mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	202	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E202R180C	---	---
250	TKQ30H72E202R250C	---	---
300	TKQ30H72E202R300C	---	---
370	TKQ30H72E202R370C	---	---

Inner width 218mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	218	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E218R180C	---	---
250	TKQ30H72E218R250C	---	---
300	TKQ30H72E218R300C	---	---
370	TKQ30H72E218R370C	---	---

Inner width 234mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	234	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E234R180C	---	---
250	TKQ30H72E234R250C	---	---
300	TKQ30H72E234R300C	---	---
370	TKQ30H72E234R370C	---	---

Inner width 250mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	250	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E250R180C	---	---
250	TKQ30H72E250R250C	---	---
300	TKQ30H72E250R300C	---	---
370	TKQ30H72E250R370C	---	---

Inner width 266mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	266	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E266R180C	TKQ30H72E266R180B	TKQ30H72E266R180A
250	TKQ30H72E266R250C	TKQ30H72E266R250B	TKQ30H72E266R250A
300	TKQ30H72E266R300C	TKQ30H72E266R300B	TKQ30H72E266R300A
370	TKQ30H72E266R370C	TKQ30H72E266R370B	TKQ30H72E266R370A

Inner width 282mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	282	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E282R180C	---	---
250	TKQ30H72E282R250C	---	---
300	TKQ30H72E282R300C	---	---
370	TKQ30H72E282R370C	---	---

Inner width 298mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	298	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E298R180C	---	---
250	TKQ30H72E298R250C	---	---
300	TKQ30H72E298R300C	---	---
370	TKQ30H72E298R370C	---	---

Inner width 314mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	314	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E314R180C	---	---
250	TKQ30H72E314R250C	---	---
300	TKQ30H72E314R300C	---	---
370	TKQ30H72E314R370C	---	---

Inner width 330mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	330	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E330R180C	---	---
250	TKQ30H72E330R250C	---	---
300	TKQ30H72E330R300C	---	---
370	TKQ30H72E330R370C	---	---

Inner width 346mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	346	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E346R180C	---	---
250	TKQ30H72E346R250C	---	---
300	TKQ30H72E346R300C	---	---
370	TKQ30H72E346R370C	---	---

Inner width 362mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure	How to fix the vertical divider
65	72	362	180	30	Inner and outer circumference of arm Opening and closing type	TKQ30H72E362R180C	---	---
250	TKQ30H72E362R250C	---	---
300	TKQ30H72E362R300C	---	---
370	TKQ30H72E362R370C	---	---

Inner width 378mm

TSUBAKI Power Transmission Products Information Site

Plastic Series Open type TKQ

Features

1. Low noise

2. Low dust generation

3. long life

4. flexible

5. High speed and high acceleration

6. Supports multi-level partitions

Special specifications

Catalogs and Instruction Manuals

Product List
