Plastic Series closed type TKA type

Link
Shortening/lengthening

A highly sealed Cable Carrier (CABLEVEYOR).
- The sealed structure protects cables and hoses, preventing dust and spatter from entering.
- Lighter and more space-saving than other closed types, it achieves a long free span.

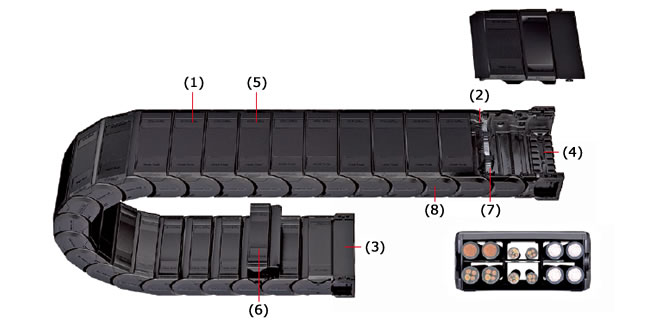

Structure and Features

(1) Sealed structure that prevents dust and other particles from entering from the outside
(2) Damper structure achieves low noise
(3) Brackets also come with covers
(4) Bracket that can be fitted with strain relief combs strain relief

(5) Lineup includes inner and outer circumferential opening and closing types
(6) The cover can be opened and closed easily and quickly from any position
(7) Vertical and horizontal dividers can be installed
(8) Special engineering plastics

1. Low noise

The wedge-shaped notch absorbs shock and reduces noise during operation.

2. Supports multi-level partitions

The storage space can be divided into multiple levels, allowing for greater flexibility in layout.

3. The cover is easy to open and close.

The cover can be easily opened from any position and is securely fastened in place.

4. Graduated cover

The cover has markings on it, allowing you to quickly arrange the vertical dividers.

Special specifications

For special specifications, please refer to here.

Catalogs and Instruction Manuals

Product List

*Click to display detailed information. Open all Close all

Cable/hose maximum outer diameter: 13mm, 18mm (TKA30H20 and above)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
13	20.5	15	55	30.5	TKA30H20-80W15R55	TKA30H20-60W15R55
75	TKA30H20-80W15R75	TKA30H20-60W15R75
95	TKA30H20-80W15R95	TKA30H20-60W15R95
125	TKA30H20-80W15R125	TKA30H20-60W15R125
145	TKA30H20-80W15R145	TKA30H20-60W15R145
180	TKA30H20-80W15R180	TKA30H20-60W15R180

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
18	20.5	20	55	30.5	TKA30H20-80W20R55	TKA30H20-60W20R55
75	TKA30H20-80W20R75	TKA30H20-60W20R75
95	TKA30H20-80W20R95	TKA30H20-60W20R95
125	TKA30H20-80W20R125	TKA30H20-60W20R125
145	TKA30H20-80W20R145	TKA30H20-60W20R145
180	TKA30H20-80W20R180	TKA30H20-60W20R180

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
18	20.5	25	55	30.5	TKA30H20-80W25R55	TKA30H20-60W25R55
75	TKA30H20-80W25R75	TKA30H20-60W25R75
95	TKA30H20-80W25R95	TKA30H20-60W25R95
125	TKA30H20-80W25R125	TKA30H20-60W25R125
145	TKA30H20-80W25R145	TKA30H20-60W25R145
180	TKA30H20-80W25R180	TKA30H20-60W25R180

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
18	20.5	38	55	30.5	TKA30H20-80W38R55	TKA30H20-60W38R55
75	TKA30H20-80W38R75	TKA30H20-60W38R75
95	TKA30H20-80W38R95	TKA30H20-60W38R95
125	TKA30H20-80W38R125	TKA30H20-60W38R125
145	TKA30H20-80W38R145	TKA30H20-60W38R145
180	TKA30H20-80W38R180	TKA30H20-60W38R180

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
18	20.5	50	55	30.5	TKA30H20-80W50R55	TKA30H20-60W50R55
75	TKA30H20-80W50R75	TKA30H20-60W50R75
95	TKA30H20-80W50R95	TKA30H20-60W50R95
125	TKA30H20-80W50R125	TKA30H20-60W50R125
145	TKA30H20-80W50R145	TKA30H20-60W50R145
180	TKA30H20-80W50R180	TKA30H20-60W50R180

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
18	20.5	65	55	30.5	TKA30H20-80W65R55	TKA30H20-60W65R55
75	TKA30H20-80W65R75	TKA30H20-60W65R75
95	TKA30H20-80W65R95	TKA30H20-60W65R95
125	TKA30H20-80W65R125	TKA30H20-60W65R125
145	TKA30H20-80W65R145	TKA30H20-60W65R145
180	TKA30H20-80W65R180	TKA30H20-60W65R180

Cable/hose maximum outer diameter: 22mm, 23mm (TKA38H26~)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
22	26	25	70	38.5	TKA38H26-80W25R70	TKA38H26-60W25R70
95	TKA38H26-80W25R95	TKA38H26-60W25R95
120	TKA38H26-80W25R120	TKA38H26-60W25R120
145	TKA38H26-80W25R145	TKA38H26-60W25R145
170	TKA38H26-80W25R170	TKA38H26-60W25R170
195	TKA38H26-80W25R195	TKA38H26-60W25R195
230	TKA38H26-80W25R230	TKA38H26-60W25R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
23	26	38	70	38.5	TKA38H26-80W38R70	TKA38H26-60W38R70
95	TKA38H26-80W38R95	TKA38H26-60W38R95
120	TKA38H26-80W38R120	TKA38H26-60W38R120
145	TKA38H26-80W38R145	TKA38H26-60W38R145
170	TKA38H26-80W38R170	TKA38H26-60W38R170
195	TKA38H26-80W38R195	TKA38H26-60W38R195
230	TKA38H26-80W38R230	TKA38H26-60W38R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
23	26	58	70	38.5	TKA38H26-80W58R70	TKA38H26-60W58R70
95	TKA38H26-80W58R95	TKA38H26-60W58R95
120	TKA38H26-80W58R120	TKA38H26-60W58R120
145	TKA38H26-80W58R145	TKA38H26-60W58R145
170	TKA38H26-80W58R170	TKA38H26-60W58R170
195	TKA38H26-80W58R195	TKA38H26-60W58R195
230	TKA38H26-80W58R230	TKA38H26-60W58R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
23	26	78	70	38.5	TKA38H26-80W78R70	TKA38H26-60W78R70
95	TKA38H26-80W78R95	TKA38H26-60W78R95
120	TKA38H26-80W78R120	TKA38H26-60W78R120
145	TKA38H26-80W78R145	TKA38H26-60W78R145
170	TKA38H26-80W78R170	TKA38H26-60W78R170
195	TKA38H26-80W78R195	TKA38H26-60W78R195
230	TKA38H26-80W78R230	TKA38H26-60W78R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
23	26	103	70	38.5	TKA38H26-80W103R70	TKA38H26-60W103R70
95	TKA38H26-80W103R95	TKA38H26-60W103R95
120	TKA38H26-80W103R120	TKA38H26-60W103R120
145	TKA38H26-80W103R145	TKA38H26-60W103R145
170	TKA38H26-80W103R170	TKA38H26-60W103R170
195	TKA38H26-80W103R195	TKA38H26-60W103R195
230	TKA38H26-80W103R230	TKA38H26-60W103R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
23	26	130	70	38.5	TKA38H26-80W130R70	TKA38H26-60W130R70
95	TKA38H26-80W130R95	TKA38H26-60W130R95
120	TKA38H26-80W130R120	TKA38H26-60W130R120
145	TKA38H26-80W130R145	TKA38H26-60W130R145
170	TKA38H26-80W130R170	TKA38H26-60W130R170
195	TKA38H26-80W130R195	TKA38H26-60W130R195
230	TKA38H26-80W130R230	TKA38H26-60W130R230

Cable/hose maximum outer diameter 32mm (TKA45H36~)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
32	36	50	82	45.5	TKA45H36-80W50R82	TKA45H36-60W50R82
95	TKA45H36-80W50R95	TKA45H36-60W50R95
125	TKA45H36-80W50R125	TKA45H36-60W50R125
145	TKA45H36-80W50R145	TKA45H36-60W50R145
170	TKA45H36-80W50R170	TKA45H36-60W50R170
200	TKA45H36-80W50R200	TKA45H36-60W50R200
230	TKA45H36-80W50R230	TKA45H36-60W50R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
32	36	75	82	45.5	TKA45H36-80W75R82	TKA45H36-60W75R82
95	TKA45H36-80W75R95	TKA45H36-60W75R95
125	TKA45H36-80W75R125	TKA45H36-60W75R125
145	TKA45H36-80W75R145	TKA45H36-60W75R145
170	TKA45H36-80W75R170	TKA45H36-60W75R170
200	TKA45H36-80W75R200	TKA45H36-60W75R200
230	TKA45H36-80W75R230	TKA45H36-60W75R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
32	36	100	82	45.5	TKA45H36-80W100R82	TKA45H36-60W100R82
95	TKA45H36-80W100R95	TKA45H36-60W100R95
125	TKA45H36-80W100R125	TKA45H36-60W100R125
145	TKA45H36-80W100R145	TKA45H36-60W100R145
170	TKA45H36-80W100R170	TKA45H36-60W100R170
200	TKA45H36-80W100R200	TKA45H36-60W100R200
230	TKA45H36-80W100R230	TKA45H36-60W100R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
32	36	125	82	45.5	TKA45H36-80W125R82	TKA45H36-60W125R82
95	TKA45H36-80W125R95	TKA45H36-60W125R95
125	TKA45H36-80W125R125	TKA45H36-60W125R125
145	TKA45H36-80W125R145	TKA45H36-60W125R145
170	TKA45H36-80W125R170	TKA45H36-60W125R170
200	TKA45H36-80W125R200	TKA45H36-60W125R200
230	TKA45H36-80W125R230	TKA45H36-60W125R230

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
32	36	150	82	45.5	TKA45H36-80W150R82	TKA45H36-60W150R82
95	TKA45H36-80W150R95	TKA45H36-60W150R95
125	TKA45H36-80W150R125	TKA45H36-60W150R125
145	TKA45H36-80W150R145	TKA45H36-60W150R145
170	TKA45H36-80W150R170	TKA45H36-60W150R170
200	TKA45H36-80W150R200	TKA45H36-60W150R200
230	TKA45H36-80W150R230	TKA45H36-60W150R230

Cable/hose maximum outer diameter 40mm (TKA55H45 and above)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Outside openable stay type	Arm inner circumference opening and closing type
40	45	50	100	55.5	TKA55H45-80W50R100	TKA55H45-60W50R100
			120		TKA55H45-80W50R120	TKA55H45-60W50R120
			140		TKA55H45-80W50R140	TKA55H45-60W50R140
			170		TKA55H45-80W50R170	TKA55H45-60W50R170
			195		TKA55H45-80W50R195	TKA55H45-60W50R195
			225		TKA55H45-80W50R225	TKA55H45-60W50R225
			250		TKA55H45-80W50R250	TKA55H45-60W50R250
			300		TKA55H45-80W50R300	TKA55H45-60W50R300

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Outside openable stay type	Arm inner circumference opening and closing type
40	45	75	100	55.5	TKA55H45-80W75R100	TKA55H45-60W75R100
			120		TKA55H45-80W75R120	TKA55H45-60W75R120
			140		TKA55H45-80W75R140	TKA55H45-60W75R140
			170		TKA55H45-80W75R170	TKA55H45-60W75R170
			195		TKA55H45-80W75R195	TKA55H45-60W75R195
			225		TKA55H45-80W75R225	TKA55H45-60W75R225
			250		TKA55H45-80W75R250	TKA55H45-60W75R250
			300		TKA55H45-80W75R300	TKA55H45-60W75R300

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Outside openable stay type	Arm inner circumference opening and closing type
40	45	100	100	55.5	TKA55H45-80W100R100	TKA55H45-60W100R100
			120		TKA55H45-80W100R120	TKA55H45-60W100R120
			140		TKA55H45-80W100R140	TKA55H45-60W100R140
			170		TKA55H45-80W100R170	TKA55H45-60W100R170
			195		TKA55H45-80W100R195	TKA55H45-60W100R195
			225		TKA55H45-80W100R225	TKA55H45-60W100R225
			250		TKA55H45-80W100R250	TKA55H45-60W100R250
			300		TKA55H45-80W100R300	TKA55H45-60W100R300

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Outside openable stay type	Arm inner circumference opening and closing type
40	45	125	100	55.5	TKA55H45-80W125R100	TKA55H45-60W125R100
			120		TKA55H45-80W125R120	TKA55H45-60W125R120
			140		TKA55H45-80W125R140	TKA55H45-60W125R140
			170		TKA55H45-80W125R170	TKA55H45-60W125R170
			195		TKA55H45-80W125R195	TKA55H45-60W125R195
			225		TKA55H45-80W125R225	TKA55H45-60W125R225
			250		TKA55H45-80W125R250	TKA55H45-60W125R250
			300		TKA55H45-80W125R300	TKA55H45-60W125R300

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Stay openable structure
Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	bending radius mm	Pitch mm	Outside openable stay type	Arm inner circumference opening and closing type
40	45	150	100	55.5	TKA55H45-80W150R100	TKA55H45-60W150R100
			120		TKA55H45-80W150R120	TKA55H45-60W150R120
			140		TKA55H45-80W150R140	TKA55H45-60W150R140
			170		TKA55H45-80W150R170	TKA55H45-60W150R170
			195		TKA55H45-80W150R195	TKA55H45-60W150R195
			225		TKA55H45-80W150R225	TKA55H45-60W150R225
			250		TKA55H45-80W150R250	TKA55H45-60W150R250
			300		TKA55H45-80W150R300	TKA55H45-60W150R300
