Plastic Series 3D PMA Type
- Link
Shortening/lengthening
- A hose-type Cable Carrier (CABLEVEYOR) that can move freely in three-dimensional space.
- - An integrated Cable Carrier (CABLEVEYOR) made by extrusion molding.
- - Eight sizes of main body and connectors are available.
- - Lengths up to 50m or 30m are available.

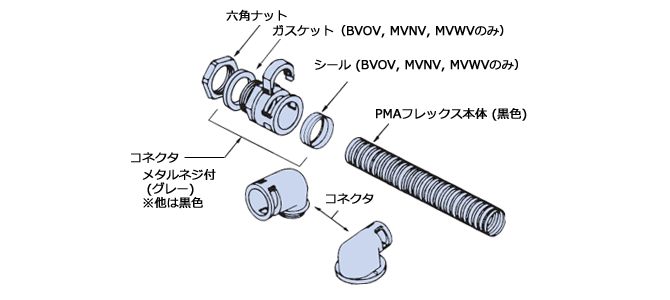

Structure
Features
1. Made of polyamide resin
It is lightweight, tough, and strong. It has excellent cold resistance, heat resistance (-50 to 85°C), weather resistance, and oil resistance.
2. One-touch mounting connector
Press the lock piece from above to fasten it together with one touch. Use a flathead screwdriver to lift the lock piece and easily remove it.
3. A wide range of models
Eight sizes with inner diameters ranging from Φ6.2 to Φ46.7 are available, with five types of connectors.
Catalogs and Instruction Manuals
Product List
*Click to display detailed information.

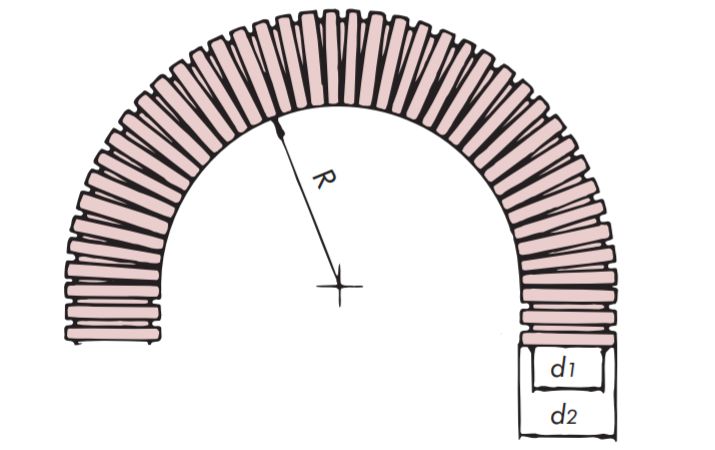

| series | Product name | Outer diameter Φd 2 mm |
Inner diameter Φd 1 mm |
Allowable bending radius R mm | Maximum length per piece m |
|
|---|---|---|---|---|---|---|
| static | dynamic | |||||
| PMA Series | PIST-07B | 10.0 | 6.2 | 15 | 40 | 50 |
| PIST-10B | 13.0 | 9.6 | 20 | 50 | 50 | |
| PIST-12B | 15.8 | 11.9 | 25 | 65 | 50 | |
| PIST-17B | 21.1 | 16.4 | 30 | 65 | 50 | |
| PISG-23B | 28.4 | 21.7 | 40 | 100 | 50 | |
| PISG-29B | 34.7 | 27.9 | 50 | 120 | 50 | |
| PISG-36B | 42.3 | 35.8 | 60 | 180 | 30 | |
| PISG-48B | 54.2 | 46.7 | 70 | 200 | 30 | |
