Plastic Series 3D FTP Type
- Link
Shortening/lengthening
- A closed-type 3D Cable Carrier (CABLEVEYOR) with a link structure.
- - The spherical structure of the link allows it to follow twists and rotations.
- - Tsubaki's unique simple closed structure.
- - You can create two-dimensional movements and straight lines.

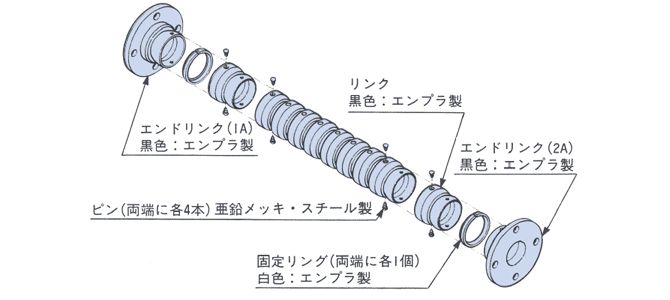

Structure
Features

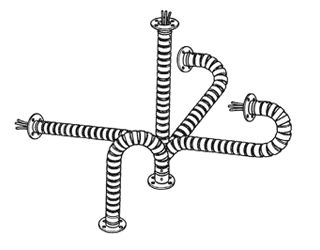

1. Able to bend in three dimensions
The connections between links and between links and end links are spherical, allowing for three-dimensional movement and twisting/rotation.
2. Two-dimensional restrictions and fixations are also possible.
Tsubaki's unique link structure allows you to restrict movement to two dimensions by inserting a pin into the link.
In addition, by using a fixing ring, you can create straight or free-standing sections.
3. Cable and hose protection
It will not bend below a certain bending radius and also has dustproof properties, protecting cables and hoses.
Catalogs and Instruction Manuals
Product List
*Click to display detailed information.

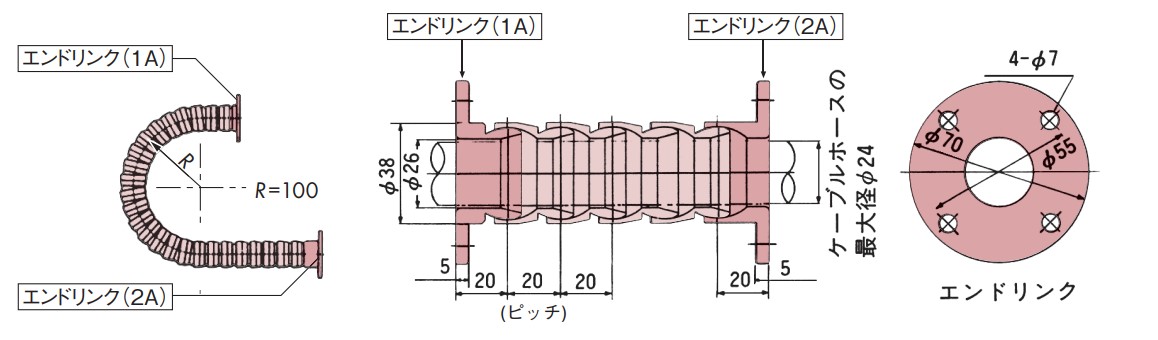

| Series | Product name | Outer diameter mm |
Inner diameter mm |
Allowable bending radius mm |
Pitch mm |
Cables and Hoses Maximum diameter mm |
Cables and Hoses Maximum mass kg/m |
|---|---|---|---|---|---|---|---|
| FTP Series | FTP026R100 | 38 | 26 | 100 | 20 | 24 | 1 |
