Cable Carrier (CABLEVEYOR) Cable Carrier (CABLEVEYOR) Dedicated Flexible cable Cables
- Flexible cable developed specifically for cable hose support and guide devices.
- ・A wide variety of products available
- ・Complies with international standards
- ・We can also provide a set of various cables stored in Cable Carrier (CABLEVEYOR) upon request.
Features

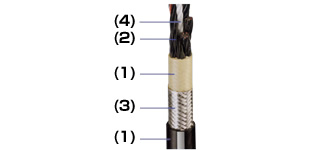

1. Achieves long life and small bending radius
(1) Unique high-performance sheath (valley seal structure) realized by pressure extrusion molding technology
(2) Core twisting optimized to meet specifications
(3) Braided shield with the required electrical properties and excellent continuous flexibility
(4) High-quality central reinforcement optimized for each application
2. Meeting diversifying needs
・We offer a lineup of various cables for control, power, communication, and signal transmission.
- Certified to UL*, CSA*, and CE marking, required for overseas use (depending on cable type)

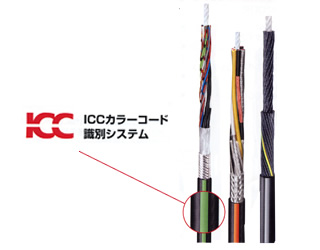

- DESINA compatible ICC color code identification system (depending on cable type)
- Can be purchased by the meter. No need to hold unnecessary inventory.
[DESINA]
This is a concept related to the decentralization and standardization of fluid (hydraulic and pneumatic) and electrical technology for machine tools and production equipment, and is an abbreviation for "Distributed Standardized Installation technology."
Catalogs and Instruction Manuals
Specifications
| Control 200 series |
Control and communication 400 series |
400 for power series |
700 Series | S700C Series M700C Series |
|
|---|---|---|---|---|---|
| Maximum allowable acceleration m/s2 | 10 | 20 | 20 | 50 | 50 |
| Maximum allowable speed m/s (Short span) |
3.5 | 5 | 5 | 20 | 5 |
| Maximum allowable speed m/s (Gliding arrangement) |
2 | 3.5 | 3.5 | 5 | 5 |
| travel distance Recommended range of use m |
25 | 100 | 100 | 500 | 50 |
| Operating temperature range ℃ | -5～80 | -5～80 | -5～80 | -35～90 | -35～90 |
| Minimum bending radius (No shield) |
Cable outer diameter 10 times more |
Cable outer diameter 7.5 times more |
Cable outer diameter 7.5 times more |
Cable outer diameter 7.5 times more |
Depends on the type of cable |
| Minimum bending radius (Shielded) |
Cable outer diameter 10 times more |
Cable outer diameter 7.5 times more |
Cable outer diameter 7.5 times more |
Cable outer diameter 7.5 times more |
Depends on the type of cable |
| cURus certified | ○ | ○ | ○ | ○ | ○ |
| UV resistance | Excellent | Excellent | Excellent | Yes (other colors) Excellent (black case) |
Yes (other colors) Excellent (black case) |
| CFC-free | ○ | ○ | ○ | ○ | ○ |
| Flame retardant | ○ | ○ | ○ | ○ | ○ |
| Halogen-free | × | × | × | ○ | ○ |
| oil resistant | ○ | ○ | ○ | ○ | ○ |
| Silicone-free | ○ | ○ | ○ | ○ | ○ |
