PX belt RC type

Product Photos
  • The construction materials have been improved based on PX Belt, which has a rational arc tooth shape based on precise meshing theory.
    It has evolved into a clean and eco-friendly Synchronous Belts.

Features

  • Clean: tooth fabric processing method has been changed to reduce the scattering of rubber powder, enabling clean power transmission.
  • ・Longer life: Improved bending fatigue resistance can be expected to extend the life in multi-axis layouts. *1
  • -Because it is less likely to stretch, the belt needs to be re-tensioned less frequently. *2
  • - By changing tooth fabric from black to beige, it is easier to see and determine the tooth chipping lifespan.

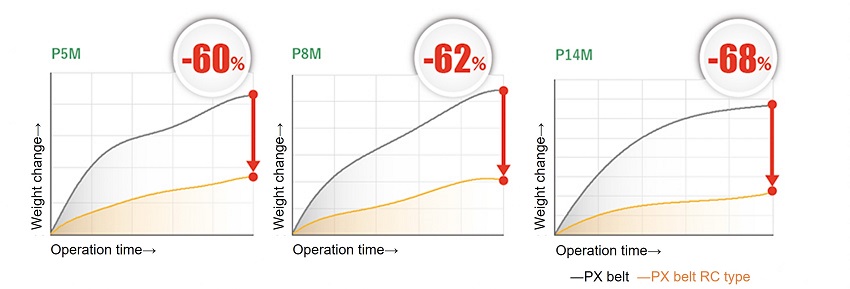

1. Clean

Weight change

clean

2. long life

Flex fatigue resistance

long life

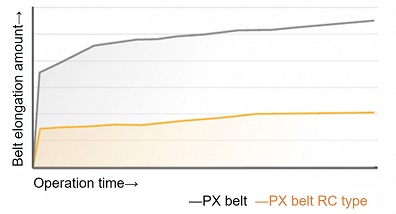

3. Reduced operating elongation

Change in belt elongation with operating time

Reduced operating elongation

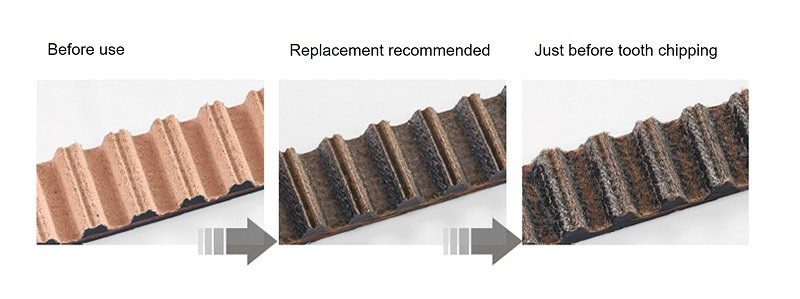

4. Visualization of lifespan judgment

Visualization of lifespan judgment

*1 Excluding P2M, P3M, and P14M.
*2 Excluding P2M and P3M.

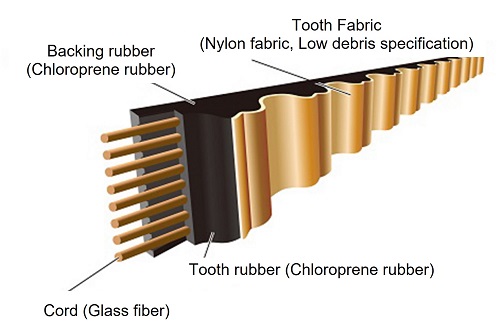

Structure

Structure

Catalogs and Instruction Manuals

Model number display example

BG 300 P 5M 10 - RC
｜
｜
｜		 ｜
Belt length
mm		 ｜
｜
｜		 ｜
Types
(pitch)		 ｜
Belt width
mm		 ｜
specification
Synchronous Belt P:PX
UP: Ultra PX

Product List

*Click to display detailed information.

Pitch
mm		 Basic model number Belt width mm
10 15 25 40 60 80 100 120
5 P5M10-RC ○
P5M15-RC ○
P5M25-RC ○
8 P8M15-RC ○
P8M25-RC ○
P8M40-RC ○
P8M60-RC ○
14 P14M40-RC ○
P14M60-RC ○
P14M80-RC ○
P14M100-RC ○
P14M120-RC ○
