Ultra PX Belt HC type
- Based on PX Belt tooth profile, high-strength materials are used to achieve high load transmission, long life, and compactness.
- A new generation Synchronous Belts that pursues the performance required of a belt.
Features
- High accuracy: Improved transmission accuracy due to reduced operating elongation leads to improved equipment accuracy. There is also no need to reset the belt tension.
- High strength: Transmission capacity is more than double that of conventional PX Belt. Space-saving designs are possible, such as narrower belts and smaller pulley teeth.
- Clean: Wear-resistant tooth fabric is used, minimizing scattering of wear debris and enabling clean power transmission.
- - Color (blue) that lets you see the wear condition at a glance: The blue tooth rubber makes it possible to see the wear condition at a glance.
1. High precision and strength

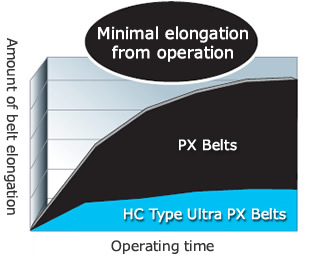

Comparison of belt elongation due to operating time

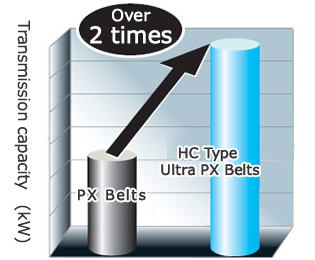

Transmission capacity comparison

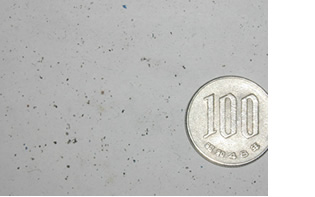

2. Clean with minimal scattering of Wear debris
PX Belt
Ultra PX Belt HC Type
3. Easy to know when to replace
The blue color makes it easy to see the wear condition and when it's time to replace it.

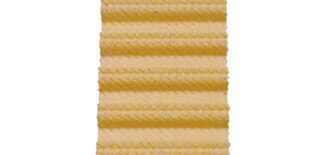

Before use

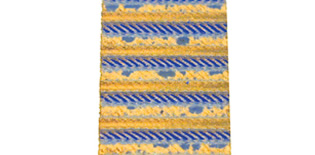

After use
*3M and 5M use black rubber.
Catalogs and Instruction Manuals
Model number display example
| BG | 300 | UP | 3M | 6 | - | HC |
| ｜ ｜ ｜ |
｜ Belt length mm |
｜ ｜ ｜ |
｜ Types (pitch) |
｜ Belt width mm |
｜ specification |
|
| Synchronous Belt | P:PX UP: Ultra PX |
|||||
Product List
*Click to display detailed information.
| Pitch mm |
Basic model number | Belt width mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 10 | 15 | 25 | 40 | 60 | 80 | 100 | 120 | ||
| 3 | UP3M6-HC | ○ | ||||||||
| UP3M10-HC | ○ | |||||||||
| UP3M15-HC | ○ | |||||||||
| 5 | UP5M10-HC | ○ | ||||||||
| UP5M15-HC | ○ | |||||||||
| UP5M25-HC | ○ | |||||||||
| 8 | UP8M15-HC | ○ | ||||||||
| UP8M25-HC | ○ | |||||||||
| UP8M40-HC | ○ | |||||||||
| UP8M60-HC | ○ | |||||||||
| 14 | UP14M40-HC | ○ | ||||||||
| UP14M60-HC | ○ | |||||||||
| UP14M80-HC | ○ | |||||||||
| UP14M100-HC | ○ | |||||||||
| UP14M120-HC | ○ | |||||||||
