Ultra PX Belt HA type(Oil proof/Water proof type)
- Can be used in environments where oil or water is present
- This belt is based on the high-performance belt "Ultra PX Belt HC Type" and is oil and water resistant, providing transmission capacity equivalent to HC Type.
- *Made to order (orders can be made for as little as one piece, except for 14mm pitch)
Features
- *Oil and water resistance: The main body rubber is made of oil and water resistant material. It can be used in environments where it is exposed to oil or water, and the belt's physical properties are hardly deteriorated.
- *High strength and high precision: It has the same power transmission capacity as Ultra PX Belt HC Type. It also has extremely little elongation during operation, allowing for high-precision power transmission.
- (We do not guarantee resistance to all oil types and operating conditions. We recommend testing on the actual equipment before use.)
1. Oil resistance comparison

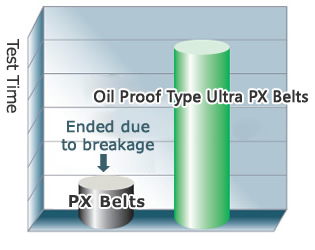

Endurance test results in an oily environment

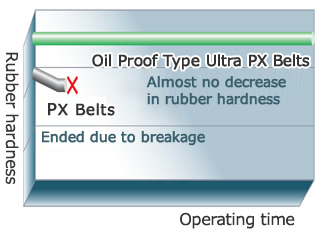

Rubber hardening changes in an oily environment
2. High strength and high precision

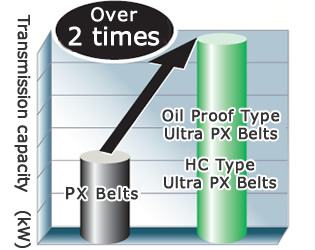

Transmission capacity comparison
Comparison of belt elongation due to operating time
Catalogs and Instruction Manuals
Model number display example
| BG | 300 | UP | 5M | 10 | - | HA |
| ｜ ｜ ｜ |
｜ Belt length mm |
｜ ｜ ｜ |
｜ Types (pitch) |
｜ Belt width mm |
｜ specification |
|
| Synchronous Belt | P:PX UP: Ultra PX |
|||||
Product List
*Click to display detailed information.
| Pitch mm |
Basic model number | Belt width mm | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 15 | 25 | 40 | 60 | 80 | 100 | 120 | ||
| 5 | UP5M10-HA | ○ | |||||||
| UP5M15-HA | ○ | ||||||||
| UP5M25-HA | ○ | ||||||||
| 8 | UP8M15-HA | ○ | |||||||
| UP8M25-HA | ○ | ||||||||
| UP8M40-HA | ○ | ||||||||
| UP8M60-HA | ○ | ||||||||
| 14 | UP14M40-HA | ○ | |||||||
| UP14M60-HA | ○ | ||||||||
| UP14M80-HA | ○ | ||||||||
| UP14M100-HA | ○ | ||||||||
| UP14M120-HA | ○ | ||||||||
