Belt clamp
- "Mounting brackets" used to secure workpieces to belts and attach Open-ended belt
- Now that it is in standard stock, it is even easier to use.
Please also use the "Tsubaki Belt Clamp" in conjunction with the Tsubaki Synchronous Belts and Belt Sprockets.
Features
- *Standard stock items: In stock and ready to ship, so you can get them immediately.
- *Pre-drilled holes: The mounting holes are pre-drilled, so you can use it immediately after purchase.
- *Products without drilled holes: Additional machining can be done to suit the customer's installation method, increasing flexibility.
- * Wide variety of products: In addition to the standard widths of Synchronous Belts (P5M, P8M), we have added 40/60mm belt widths to our lineup of products without holes.
Catalogs and Instruction Manuals
Belt clamp usage example
1. Fixing a reciprocating workpiece
[Click to enlarge]
2. As a fixed end for Open-ended belt
[Click to enlarge]
Model number display example
| BDCP | - | P5M | 10 | N |
| ｜ Belt clamp |
｜ kinds |
｜ Belt width used |
｜ ｜ N: No mounting holes No symbol: Mounting holes included |

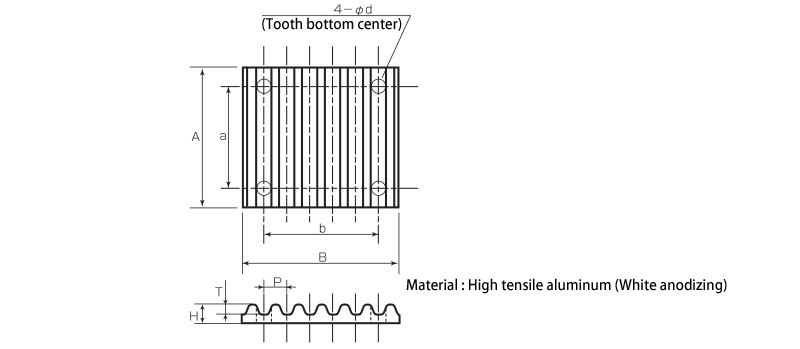

Dimensions, standard price, delivery
[Click to enlarge]
| Model number | kinds· pitch |
Applicable Belt width mm |
width A |
length B |
Full thickness H |
tooth length T |
Mounting holes pitch a |
Mounting holes pitch b |
Installation Hole Diameter d |
Tooth shape pitch P |
DXF Drawing 3D CAD data |
Price | Delivery |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDCP-P5M10 | P5M | 10 | 27 | 35 | 6 | 1.90 | 16 | 25 | 4.5 | 5.00 | DXF・3DCAD | お問合せください | お問合せください |
| BDCP-P5M10N | - | - | - | DXF・3DCAD | お問合せください | お問合せください | |||||||
| BDCP-P5M15 | 15 | 32 | 21 | 25 | 4.5 | DXF・3DCAD | お問合せください | お問合せください | |||||
| BDCP-P5M15N | - | - | - | DXF・3DCAD | お問合せください | お問合せください | |||||||
| BDCP-P5M20 | 20 | 37 | 26 | 25 | 4.5 | DXF・3DCAD | お問合せください | お問合せください | |||||
| BDCP-P5M20N | - | - | - | DXF・3DCAD | お問合せください | お問合せください | |||||||
| BDCP-P5M25 | 25 | 42 | 31 | 25 | 4.5 | DXF・3DCAD | お問合せください | お問合せください | |||||
| BDCP-P5M25N | - | - | - | DXF・3DCAD | お問合せください | お問合せください | |||||||
| BDCP-P8M15 | P8M | 15 | 34 | 54 | 8 | 3.00 | 22 | 40 | 5.5 | 8.00 | DXF・3DCAD | お問合せください | お問合せください |
| BDCP-P8M15N | - | - | - | DXF・3DCAD | お問合せください | お問合せください | |||||||
| BDCP-P8M20 | 20 | 39 | 27 | 40 | 5.5 | DXF・3DCAD | お問合せください | お問合せください | |||||
| BDCP-P8M20N | - | - | - | DXF・3DCAD | お問合せください | お問合せください | |||||||
| BDCP-P8M25 | 25 | 44 | 32 | 40 | 5.5 | DXF・3DCAD | お問合せください | お問合せください | |||||
| BDCP-P8M25N | - | - | - | DXF・3DCAD | お問合せください | お問合せください | |||||||
| BDCP-P8M40N | 40 | 60 | - | - | - | DXF・3DCAD | お問合せください | お問合せください | |||||
| BDCP-P8M60N | 60 | 80 | - | - | - | DXF・3DCAD | お問合せください | お問合せください |
