Sprockets for sludge collectors: ACP, ACR, and ACS types

ACP type sprocket

ACR type sprocket

ACS type sprocket

• 1. Select the sprocket shape type from the table below.

• Structure	Specification Code
  Integrated type	No symbol
  Two-piece unit (C-split type)	TS

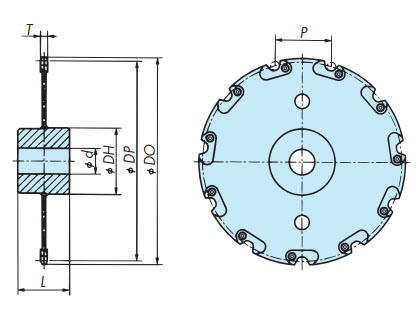

  Tooth Block Replacement Teeth	BK

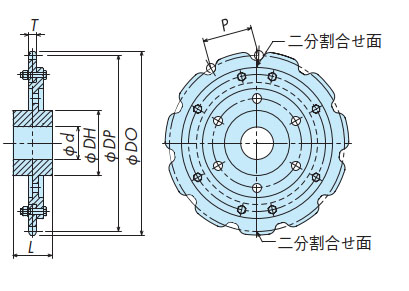

  Ring replacement teeth (D-split type)	RK

• 2. The material combinations are as shown in the table below.

• *If the tooth material is SCS2 or FCD600, the tooth tip is hardened.

  Structure		Material
  Hub and arm parts	Casting structure	SCS2、FCD600、SCS13
  	Welded structure	SS400 + S25C (hub and arm)
  Teeth	Integrated type/TS (C-split type)	SCS2 or FCD600
  	RK (D-split type)	Choose between SCS2 or resin.
  	BK (tooth block replacement teeth)	SCS2

• 3. If the distribution of hub length is different on the left and right, please specify each dimension.
• 4. Painting specifications will vary depending on the government agency you specify, so please be sure to refer to the customer's specifications before providing instructions.
  Our standard specifications for pilot bore are coated with zinc-rich primer once, while finished holes are coated with zinc-rich primer once and epoxy resin twice.
  Resin, SCS13, and stainless steel 300 series are unpainted. All are coated with pre-vin oil on the shaft bore and hub end face.
• 5. Please provide drawings or other information to clarify the specifications.

• [Product Precautions]
• - When ordering, please specify the drive shaft diameter, key dimensions, sleeve outer diameter dimensions of the driven shaft, and hub dimensions.
  ・The standard number of teeth is listed, but we can also manufacture gears with other numbers of teeth than those listed above. Please contact us separately.
  - If the chain roller material is stainless steel 300 series or resin, the sprocket will be a special specification.
  ・For Square hub assembly, please specify the finishing hole. The maximum shaft diameter for the finishing hole is 160 mm.
  ・    The dimensions shown are for reference only and are not standard product dimensions. When requesting a quote, please specify the dimensions and number of teeth for each item, or attach a drawing.
  ・The dimensions listed are nominal dimensions and may differ from the actual dimensions.
  - Only C type is available for tooth counts of 25 or less.
