Power Cylinder F Series
- A simple electric cylinder with a rated thrust of 100N or more that can be used with battery power.
- It has a compact design with the actuator and motor sections intersecting at right angles.
- Rated thrust: 100N to 6.00kN
- Rated speed: 8-54mm/s
Features
-
・Compact and lightweight, making effective use of installation space
It has a compact design with the actuator and motor arranged at right angles. The clevis bracket is open in two perpendicular directions, so you can choose from four installation directions to avoid interference with the mating machine.
-
・Can be used outdoors
Ideal for outdoor use such as agricultural machinery and multi-story parking lots.
-
・Abundant options
We offer a wide range of options, including position detection units and overload detection units.

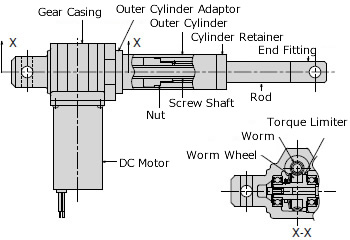

Structure
Catalogs and Instruction Manuals
Model number display example
| LPF | 040 | L | 2.0 | V |
| ｜ Series Name |
｜ Rated thrust |
｜ Rated speed |
｜ stroke |
｜ Voltage Symbol |
| Power Cylinder F Series |
010：100N{10.2kgf} 020：200N{20.4kgf} 040：400N{40.8kgf} 100：1.00kN{102kgf} 200：2.00kN{204kgf} 300：3.00kN{306kgf} 600：6.00kN{612kgf} |
L, M, H The speed of each model More information Please refer to. |
0.5：50mm 1.0：100mm 1.5：150mm 2.0：200mm 2.5：250mm 3.0：300mm 4.0：400mm 5.0：500mm 6.0：600mm |
No symbol: DC12V V: DC24V |
■ Tsubaki model No. navigation
Rated thrust
This is the rated thrust at which the motor can operate.
Rated speed
This is the operating speed when the rated thrust is generated.
Please refer to the detailed information for the speed values of each model.
Stroke
The stroke distance of the operating part.
The manufacturing range varies depending on the thrust.
Voltage Symbol
V: Compatible with DC24V power supply.
Option symbol
L: Comes with a limit switch for stroke adjustment.
K2: Equipped with a built-in microswitch that detects the stroke position.
P: Comes with a potentiometer.
J: It comes with bellows.
*For model numbers including options, please check here.
Product model number list
*Click on the model number to display detailed information.
Special support
・Special support is available to suit your usage conditions.
