Shock Relay ​SB Series

Product Photos
  • The self-holding type and Auto reset type have been combined into one, making it even easier to use.
  • Equipped with a CPU, it achieves stable current detection.
  • This is the successor model to Shock Relay SS/SA series.
  • CE marking, cUL, CCC certified product

Standard Model

Model number CT integrated type External CT mounting type
TSBSB05 TSBSB10 TSBSB30 TSBSB60 TSBSB100 TSBSB200 TSBSB300
Current setting range 0.5～6A 1～12A 3～30A 5～60A 10～100A 20～200A 30～300A
motor 200V CT penetration number 4 0.1kW - - - - - -
3 0.2kW - - - - - -
2 0.4kW - - - - - -
1 0.75kW 1.5kW, 2.2kW 3.7kW, 5.5kW 7.5kW, 11kW 15kW, 18.5kW 22kW, 30kW, 37kW 45kW, 55kW, 75kW
400V 4 0.2kW - - - - - -
3 0.4kW - - - - - -
2 0.75kW - - - - - -
1 1.5kW, 2.2kW 3.7kW 5.5kW, 7.5kW, 11kW 15kW, 18.5kW, 22kW 30kW, 37kW, 45kW 55kW, 75kW, 90kW 192kW, 254kW

Features

  • ・Self-holding and Auto reset of output relay can be selected
  • ・Compact with integrated CT:
    *TSBSB100/TSBSB200/TSBSB300 are external CT mounting types.
  • ・Compatible with a wide range of power sources:
    Standard products are compatible with AC/DC 24 to 240V.
  • ・Stable current detection:
    The use of a digital circuit equipped with a CPU makes current detection even more stable.
  • - CE marking, cUL, CCC certified, and RoHS directive compliant.

Shock Relay TSBSB Series Application Examples

Detecting jamming in packaging machines

Prevents damage to the cutter

Detecting jamming in packaging machines

Washer overload protection

It can be stored inside the control panel and used for machines that use water.

Washer overload protection

shredder

Pause when load becomes heavy

shredder

It can also be used in a variety of other applications.

  • ・Lifting device
  • ・Chip conveyor
  • ・Screw conveyor
  • ・Mixer
  • ・Water treatment facilities
  • ・Food waste disposal machine
  • ·feeder
  • ・Food machinery, etc.

Catalogs and Instruction Manuals

Product model number list

CT integrated type CT external mounting type
TSBSB05 TSBSB100
TSBSB10 TSBSB200
TSBSB30 TSBSB300
TSBSB60

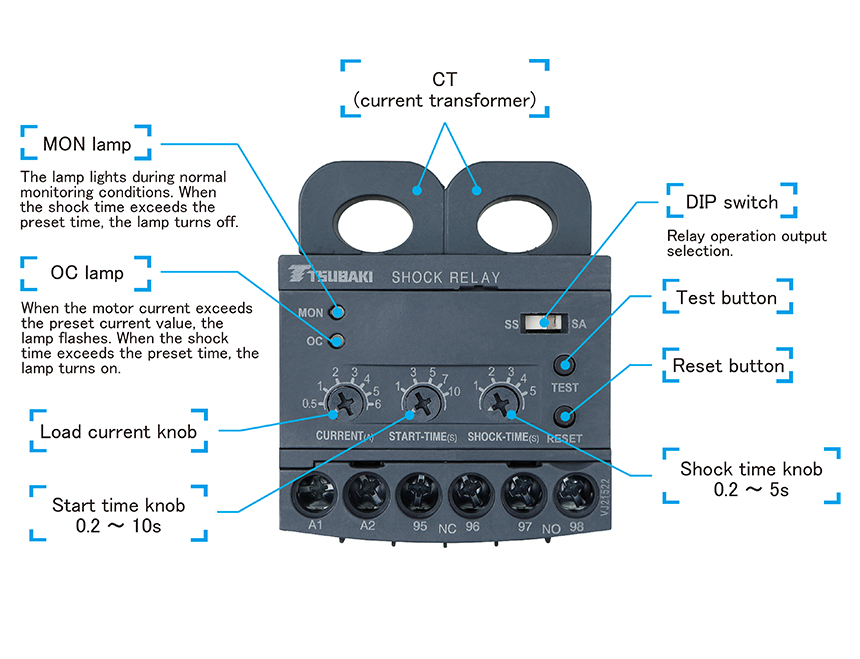

Part names and functions

Part names and functions
