Shock Relay 150 Series
- This is Shock Relay's best-selling model.
- It comes with an analog meter and is a self-holding type with a separate CT.
Standard Model
| Model number | TSB151 | TSB152 | |
|---|---|---|---|
| Road Current (Current setting range) |
30% to 130% of the motor rated current | ||
| Applicable motor capacity | 200V class | 0.2～3.7kW | 5.5～90kW |
| 400V class | |||
Features
- ・Current value can be checked using an analog meter.
- -Self-holding type with separate CT.
- ・Special requests such as changing the start time are possible. Please contact us for details.
Catalogs and Instruction Manuals

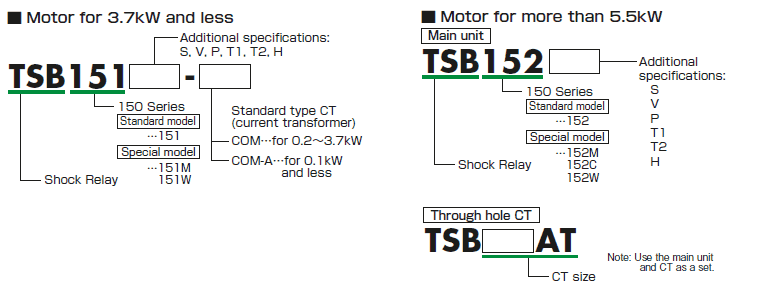

Product model number list
Additional Specifications List
| symbol | Specification Name |
|---|---|
| S | Subtropical specifications |
| V | Control power supply voltage change |
| P | Panel Mounting |
| T1 | Start time change |
| T2 | Shock time change |
| H | Auto reset |
| For motors 3.7kW or less | For common type CT TSB151 | For motors of 5.5kW or more | Penetrating CT for TSB152 |
|---|---|---|---|
| TSB151-COM | TSB-COM | TSB152 | TSB100AT |
| TSB151-COM-A | TSB-COM-A | TSB152C | TSB120AT |
| TSB151H-COM | TSB152H | TSB150AT | |
| TSB151M-COM | TSB152M | TSB200AT | |
| TSB151S-COM | TSB152S | TSB250AT | |
| TSB151W-COM | TSB152W | TSB300AT |
