ECHT-FLEX Coupling NEH Series (Disc Coupling)

製品写真
  • This is a large disc coupling that can be used with a maximum torque of 176,000 Nm.
  • The unit spacer type allows the spacer unit to be removed and assembled without disassembling the disc joint.
  • The adapter hub type allows for a larger shaft hole diameter than the standard hub.
  • ・Applicable shaft diameter: Φ72mm to Φ289mm
  • Torque range: 8820 to 176000 Nm

Features

  • In addition to the standard hub (N hub), there is also an adapter hub (A hub) that allows for a larger shaft hole diameter, and the disc connection part can be disassembled.
    We offer a range of unit spacer hubs (U-hubs) that allow for easy removal and assembly of spacer units without the need for additional spacers.
  • - Gear coupling compatible specifications can also be manufactured for replacing gear couplings.
  • -Long spacer types can also be manufactured.
  • - Electrically insulated specifications can also be manufactured using split spacers and insulating bolt sets.
  • *If you require fastening other than with a key, please contact us.

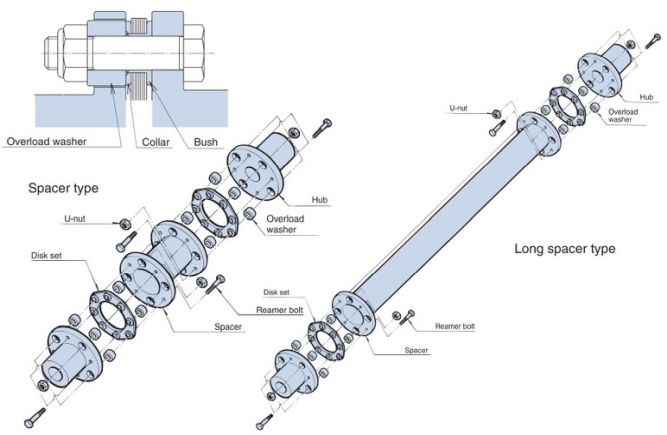

Structure

構造図

Various specifications (special specifications)

  • - One-side adapter hub type (A hub type) - Unit spacer type (U type)

    The adapter hub type allows for a larger bore diameter than the standard hub, and the unit spacer type allows for the removal and assembly of the spacer unit without disassembling the disc joint.

  • A hub type

    片側アダプタハブタイプ

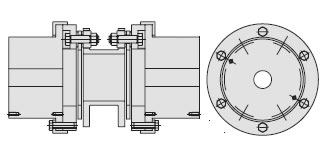

    U-type

    ユニットスペーサタイプ

  • ・Gear coupling compatible specifications

    The hub face distance (J dimension) has been shortened to make the overall length and hub length the same as the gear coupling. It can be replaced as is.

    It eliminates the cost and labor required for oiling gear couplings, making it ideal for TPM. (Please contact us for details.)

  • - Electrical insulation specifications

    The insulation resistance is 1MΩ or more, and all spacers undergo withstand voltage and insulation tests after assembly (compliant with JIS C 8201-1).

  • 電気絶縁仕様

Catalogs and Instruction Manuals

Model number display example

NEH 14 W - NH100JD2 V X AH120JD2 - J 1000
｜
series		 ｜
size		 ｜
｜
｜
 ｜
Left hub symbol		 ｜
｜
｜
 ｜
Right hub symbol		 ｜
｜
｜
 ｜
J dimension
type
W: Spacer type
U: Unit spacer type		 Vertical
Vertical long spacer
Indicates the diameter of the shaft hole on the bottom side.		 Long spacer
J: Long spacer
Long spacers
Please refer to the catalogue
Hub symbol details
Hub shape Shaft hole diameter tolerance Shaft Hole Diameter Keyway tolerance Set screw position
N H 100 J D2
A H 120 J D2
N:標準ハブ
A:アダプタハブ
U:ユニットハブ		 F:F7
G:G7
H:H7
J:JS7
P:P7
M:M7
N:N7
K:K7
R:R7		 Shaft hole diameter is
in 1mm increments		 J: New JIS Js9 (standard)
P: New JIS P9
F: Old JIS F7
E: Old JIS E9
[Click to enlarge]

Product model number list

*Click on the model number to display detailed information.

Allowable Torque
N･m		 type Standard Hub One-sided adapter hub
Pilot bore product Shaft hole processed products
8820 Spacer NEH09W-NRXNR NEH09W-N□□□□D□XN□□□□D□ NEH09W-N□□□□D□XA□□□□D□
Unit Spacer NEH09U-URXUR --- ---
13700 Spacer NEH14W-NRXNR NEH14W-N□□□□D□XN□□□□D□ NEH14W-N□□□□D□XA□□□□D□
Unit Spacer NEH14U-URXUR --- ---
19600 Spacer NEH20W-NRXNR NEH20W-N□□□□D□XN□□□□D□ NEH20W-N□□□□D□XA□□□□D□
Unit Spacer NEH20U-URXUR --- ---
29400 Spacer NEH30W-NRXNR NEH30W-N□□□□D□XN□□□□D□ NEH30W-N□□□□D□XA□□□□D□
Unit Spacer NEH30U-URXUR --- ---
40200 Spacer NEH41W-NRXNR NEH41W-N□□□□D□XN□□□□D□ NEH41W-N□□□□D□XA□□□□D□
Unit Spacer NEH41U-URXUR --- ---
53900 Spacer NEH55W-NRXNR --- ---
68600 Spacer NEH70W-NRXNR --- ---
88200 Spacer NEH90W-NRXNR --- ---
108000 Spacer NEH110W-NRXNR --- ---
132000 Spacer NEH135W-NRXNR --- ---
147000 Spacer NEH150W-NRXNR --- ---
176000 Spacer NEH180W-NRXNR --- ---

Note) The model number □□ includes the shaft bore tolerance, bore diameter, keyway tolerance, and set screw position.
