Nylon chain coupling (wrap type coupling)
- This is an economy type with a resin chain such as polyacetal wound around the sprocket.
- An economical flexible coupling with a resin chain made of polyacetal, a typical engineering plastic, wound around a sprocket.
is. - ・Applicable shaft diameter: 9.5Φmm to Φ55mm
- Torque range: 6.9 to 255 Nm

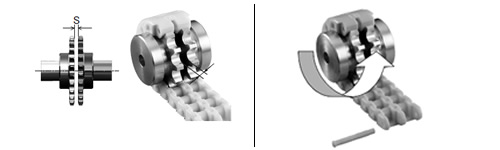

Standard type: Structure and features
-
・Can be installed with a short axis distance
The structure is simply two sprockets connected by a nylon chain, so it can be installed even when the distance between the two shafts is short, allowing for a compact overall device.
-
- Easy to put on and take off as it is wrapped around the body
Assembly is easy; just wrap the nylon chain around the outer circumference of the sprocket and insert the coupling pin.
In addition, when performing maintenance on the equipment, the connection can be cut off without moving the drive or driven machine.
-
・Torque can be increased without changing the overall length
Increasing the number of teeth on the sprocket increases the torque transmitted by the coupling, allowing you to increase the size of the coupling without changing the center distance of the device.
-
・Nylon chain specifications:
Material / Polyacetal Coupling pin material / Carbon steel Color / White
Standard type product lineup
| Model number | Maximum shaft bore diameter | Allowable transmission torque N・m |
Model number | Maximum shaft bore diameter | Allowable transmission torque N・m |
|---|---|---|---|---|---|
| CN310 | Φ12 | 6.86 | CN416 | Φ30 | 64.3 |
| CN311 | Φ14 | 8.82 | CN417 | Φ32 | 72.5 |
| CN312 | Φ16.5 | 10.8 | CN418 | Φ35 | 81.3 |
| CN313 | Φ18 | 12.7 | CN419 | Φ39.5 | 90.5 |
| CN314 | Φ16.5 | 14.7 | CN610 | Φ30 | 102 |
| CN315 | Φ19 | 16.7 | CN611 | Φ32 | 116 |
| CN316 | Φ20 | 18.6 | CN612 | Φ32 | 132 |
| CN317 | Φ24 | 21.6 | CN613 | Φ35 | 149 |
| CN410 | Φ16.5 | 25.4 | CN614 | Φ39.5 | 166 |
| CN411 | Φ20 | 30.6 | CN615 | Φ45.5 | 181 |
| CN412 | Φ22 | 36.4 | CN616 | Φ47.5 | 201 |
| CN413 | Φ20 | 42.6 | CN617 | Φ47.5 | 218 |
| CN414 | Φ24 | 49.3 | CN618 | Φ55 | 236 |
| CN415 | Φ28.5 | 56.6 | CN619 | Φ55 | 255 |
-
*The allowable transmission torque is the value below 100 r/min.
Catalogs and Instruction Manuals
Model number display example
| CN | 4 | 15 |
| ｜ series |
｜ Chain size |
｜ Number of teeth and links |
