Miter Gear Box

Product Photos

High performance, high efficiency general-purpose spiral bevel gearbox with right-angle shaft.
It is a long-lasting product that has been used for a variety of purposes for over half a century since its release.
Thanks to our extensive track record and experience, we have earned a high reputation for our reliability from customers in a wide range of fields.
By using a spiral bevel gear, high transmission and high efficiency are achieved.

Features

・Wide variation

You can choose the best one from a wide range of models.

We also handle various special specifications to meet all market needs.
・High quality

High-precision spiral bevel gears that comply with AGMA standards are used, achieving high efficiency and high transmission capacity.
・Food lubricant compatible

Models filled with NSF-certified H1 grade food lubricant are also available.

The external dimensions are the same as the standard specifications.

*Please contact us for details.

Standard Model

Model	ED2M, ED4M(B)～25M(B) (10 sizes)
Installation	Y, T, K1, K2, K3, K4
speed ratio	1/1(M), 1/1.5～1/3(B)
Input power	0.014～335kW

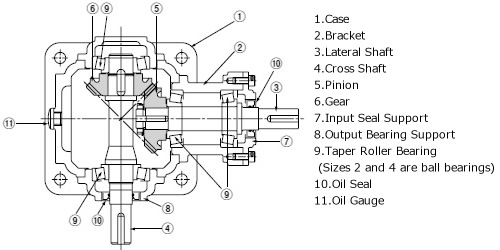

Structure (single reduction)

Structure

*Sizes 2 and 4 do not have an oil gauge.

Catalogs and Instruction Manuals

Model number display example

ED	10	M	-	1-LR-O	-	Y
｜ series	｜ size	｜ speed ratio		｜ Shaft arrangement and rotation		｜ Mounting Type
		M=1：1 B15=1.5：1 B20=2：1 B25=2.5：1 B30=3：1		*See the link below		(Y, T, K1 to K4) *See the link below

Shaft arrangement and rotation relationship diagram

Mounting type and plug position

■ Tsubaki model No. navigation

*To generate the correct model number, select items in order from left to right.

series	size	speed ratio	Shaft arrangement and rotation	Mounting Type
ED		M(1：1) B15(1.5：1) B20(2：1) B25(2.5：1) B30(3：1)	Learn more Lateral 1-shaft type Lateral 2-shaft type	Learn more Y: Floor mounting (Size 2, Size 4 is (Free installation direction) T: Ceiling mounting K1: Wall Mount 1 K2: Wall Mount 2 K3: Wall Mount 3 K4: Wall Mount 4

size

Indicates the size of the gearbox.

speed ratio

Indicates the speed ratio between the lateral shaft and the cross shaft.

Shaft arrangement and rotation

Indicates the positional and rotational relationships between the mounting surface and the lateral and cross axes.

Mounting Type

Specifies the installation direction.

Product List

*Click on the model number to display detailed information. Open all Close all

Model number ED2M (free installation direction - installation type code Y only)

Lateral 1-shaft type	ED2M-1-LR-Y	ED2M-1-R-Y	ED2M-1-L-Y	ED2M-1-LR-O-Y	ED2M-1-R-O-Y	ED2M-1-L-O-Y
	ED2M-1-UD-Y	ED2M-1-U-Y	ED2M-1-D-Y	ED2M-1-UD-O-Y	ED2M-1-U-O-Y	ED2M-1-D-O-Y
	ED2M-U-LR-Y	ED2M-U-R-Y	ED2M-U-L-Y	ED2M-U-LR-O-Y	ED2M-U-R-O-Y	ED2M-U-L-O-Y
	ED2M-D-LR-Y	ED2M-D-R-Y	ED2M-D-L-Y	ED2M-D-LR-O-Y	ED2M-D-R-O-Y	ED2M-D-L-O-Y
Lateral 2-shaft type	ED2M-1-1-UD-Y	ED2M-1-1-U-Y	ED2M-1-1-D-Y	ED2M-1-1-UD-O-Y	ED2M-1-1-U-O-Y	ED2M-1-1-D-O-Y
Lateral 2-shaft type	ED2M-U-D-LR-Y	ED2M-U-D-R-Y	ED2M-U-D-L-Y	ED2M-U-D-LR-O-Y	ED2M-U-D-R-O-Y	ED2M-U-D-L-O-Y

Back to top of this page

Model numbers ED4M, ED4B20 (free installation direction - installation type code Y only)

Lateral 1-shaft type	ED4M-1-LR-Y ED4B20-1-LR-Y	ED4M-1-R-Y ED4B20-1-R-Y	ED4M-1-L-Y ED4B20-1-L-Y	ED4M-1-LR-O-Y ED4B20-1-LR-O-Y	ED4M-1-R-O-Y ED4B20-1-R-O-Y	ED4M-1-L-O-Y ED4B20-1-L-O-Y
	ED4M-1-UD-Y ED4B20-1-UD-Y	ED4M-1-U-Y ED4B20-1-U-Y	ED4M-1-D-Y ED4B20-1-D-Y	ED4M-1-UD-O-Y ED4B20-1-UD-O-Y	ED4M-1-U-O-Y ED4B20-1-U-O-Y	ED4M-1-D-O-Y ED4B20-1-D-O-Y
	ED4M-U-LR-Y ED4B20-U-LR-Y	ED4M-U-R-Y ED4B20-U-R-Y	ED4M-U-L-Y ED4B20-U-L-Y	ED4M-U-LR-O-Y ED4B20-U-LR-O-Y	ED4M-U-R-O-Y ED4B20-U-R-O-Y	ED4M-U-L-O-Y ED4B20-U-L-O-Y
	ED4M-D-LR-Y ED4B20-D-LR-Y	ED4M-D-R-Y ED4B20-D-R-Y	ED4M-D-L-Y ED4B20-D-L-Y	ED4M-D-LR-O-Y ED4B20-D-LR-O-Y	ED4M-D-R-O-Y ED4B20-D-R-O-Y	ED4M-D-L-O-Y ED4B20-D-L-O-Y
Lateral 2-shaft type	ED4M-1-1-LR-Y ED4B20-1-1-LR-Y	ED4M-1-1-R-Y ED4B20-1-1-R-Y	ED4M-1-1-L-Y ED4B20-1-1-L-Y	ED4M-1-1-LR-O-Y ED4B20-1-1-LR-O-Y	ED4M-1-1-R-O-Y ED4B20-1-1-R-O-Y	ED4M-1-1-L-O-Y ED4B20-1-1-L-O-Y
	ED4M-1-1-UD-Y ED4B20-1-1-UD-Y	ED4M-1-1-U-Y ED4B20-1-1-U-Y	ED4M-1-1-D-Y ED4B20-1-1-D-Y	ED4M-1-1-UD-O-Y ED4B20-1-1-UD-O-Y	ED4M-1-1-U-O-Y ED4B20-1-1-U-O-Y	ED4M-1-1-D-O-Y ED4B20-1-1-D-O-Y
	ED4M-U-D-LR-Y ED4B20-U-D-LR-Y	ED4M-U-D-R-Y ED4B20-U-D-R-Y	ED4M-U-D-L-Y ED4B20-U-D-L-Y	ED4M-U-D-LR-O-Y ED4B20-U-D-LR-O-Y	ED4M-U-D-R-O-Y ED4B20-U-D-R-O-Y	ED4M-U-D-L-O-Y ED4B20-U-D-L-O-Y

Back to top of this page

Model number ED6M, ED6B15, ED6B20, ED6B25, ED6B30 (Mounting format: -Y,-T,-K1 to K4)

Lateral 1-shaft type	Select a mounting code. Y (floor mounting) T (ceiling mounting) K1 (wall mounting) K2 (wall mounting) K3 (wall mounting) K4 (wall mounting)	ED6M-1-LR ED6B15-1-LR ED6B20-1-LR ED6B25-1-LR ED6B30-1-LR	ED6M-1-R ED6B15-1-R ED6B20-1-R ED6B25-1-R ED6B30-1-R	ED6M-1-L ED6B15-1-L ED6B20-1-L ED6B25-1-L ED6B30-1-L	ED6M-1-LR-O ED6B15-1-LR-O ED6B20-1-LR-O ED6B25-1-LR-O ED6B30-1-LR-O	ED6M-1-R-O ED6B15-1-R-O ED6B20-1-R-O ED6B25-1-R-O ED6B30-1-R-O	ED6M-1-L-O ED6B15-1-L-O ED6B20-1-L-O ED6B25-1-L-O ED6B30-1-L-O
		ED6M-1-UD ED6B15-1-UD ED6B20-1-UD ED6B25-1-UD ED6B30-1-UD	ED6M-1-U ED6B15-1-U ED6B20-1-U ED6B25-1-U ED6B30-1-U	ED6M-1-D ED6B15-1-D ED6B20-1-D ED6B25-1-D ED6B30-1-D	ED6M-1-UD-O ED6B15-1-UD-O ED6B20-1-UD-O ED6B25-1-UD-O ED6B30-1-UD-O	ED6M-1-U-O ED6B15-1-U-O ED6B20-1-U-O ED6B25-1-U-O ED6B30-1-U-O	ED6M-1-D-O ED6B15-1-D-O ED6B20-1-D-O ED6B25-1-D-O ED6B30-1-D-O
		ED6M-U-LR ED6B15-U-LR ED6B20-U-LR ED6B25-U-LR ED6B30-U-LR	ED6M-U-R ED6B15-U-R ED6B20-U-R ED6B25-U-R ED6B30-U-R	ED6M-U-L ED6B15-U-L ED6B20-U-L ED6B25-U-L ED6B30-U-L	ED6M-U-LR-O ED6B15-U-LR-O ED6B20-U-LR-O ED6B25-U-LR-O ED6B30-U-LR-O	ED6M-U-R-O ED6B15-U-R-O ED6B20-U-R-O ED6B25-U-R-O ED6B30-U-R-O	ED6M-U-L-O ED6B15-U-L-O ED6B20-U-L-O ED6B25-U-L-O ED6B30-U-L-O
		ED6M-D-LR ED6B15-D-LR ED6B20-D-LR ED6B25-D-LR ED6B30-D-LR	ED6M-D-R ED6B15-D-R ED6B20-D-R ED6B25-D-R ED6B30-D-R	ED6M-D-L ED6B15-D-L ED6B20-D-L ED6B25-D-L ED6B30-D-L	ED6M-D-LR-O ED6B15-D-LR-O ED6B20-D-LR-O ED6B25-D-LR-O ED6B30-D-LR-O	ED6M-D-R-O ED6B15-D-R-O ED6B20-D-R-O ED6B25-D-R-O ED6B30-D-R-O	ED6M-D-L-O ED6B15-D-L-O ED6B20-D-L-O ED6B25-D-L-O ED6B30-D-L-O
Lateral 2-shaft type		ED6M-1-1-LR ED6B15-1-1-LR ED6B20-1-1-LR ED6B25-1-1-LR ED6B30-1-1-LR	ED6M-1-1-R ED6B15-1-1-R ED6B20-1-1-R ED6B25-1-1-R ED6B30-1-1-R	ED6M-1-1-L ED6B15-1-1-L ED6B20-1-1-L ED6B25-1-1-L ED6B30-1-1-L	ED6M-1-1-LR-O ED6B15-1-1-LR-O ED6B20-1-1-LR-O ED6B25-1-1-LR-O ED6B30-1-1-LR-O	ED6M-1-1-R-O ED6B15-1-1-R-O ED6B20-1-1-R-O ED6B25-1-1-R-O ED6B30-1-1-R-O	ED6M-1-1-L-O ED6B15-1-1-L-O ED6B20-1-1-L-O ED6B25-1-1-L-O ED6B30-1-1-L-O
		ED6M-1-1-UD ED6B15-1-1-UD ED6B20-1-1-UD ED6B25-1-1-UD ED6B30-1-1-UD	ED6M-1-1-U ED6B15-1-1-U ED6B20-1-1-U ED6B25-1-1-U ED6B30-1-1-U	ED6M-1-1-D ED6B15-1-1-D ED6B20-1-1-D ED6B25-1-1-D ED6B30-1-1-D	ED6M-1-1-UD-O ED6B15-1-1-UD-O ED6B20-1-1-UD-O ED6B25-1-1-UD-O ED6B30-1-1-UD-O	ED6M-1-1-U-O ED6B15-1-1-U-O ED6B20-1-1-U-O ED6B25-1-1-U-O ED6B30-1-1-U-O	ED6M-1-1-D-O ED6B15-1-1-D-O ED6B20-1-1-D-O ED6B25-1-1-D-O ED6B30-1-1-D-O
		ED6M-U-D-LR ED6B15-U-D-LR ED6B20-U-D-LR ED6B25-U-D-LR ED6B30-U-D-LR	ED6M-U-D-R ED6B15-U-D-R ED6B20-U-D-R ED6B25-U-D-R ED6B30-U-D-R	ED6M-U-D-L ED6B15-U-D-L ED6B20-U-D-L ED6B25-U-D-L ED6B30-U-D-L	ED6M-U-D-LR-O ED6B15-U-D-LR-O ED6B20-U-D-LR-O ED6B25-U-D-LR-O ED6B30-U-D-LR-O	ED6M-U-D-R-O ED6B15-U-D-R-O ED6B20-U-D-R-O ED6B25-U-D-R-O ED6B30-U-D-R-O	ED6M-U-D-L-O ED6B15-U-D-L-O ED6B20-U-D-L-O ED6B25-U-D-L-O ED6B30-U-D-L-O

Back to top of this page

Model number ED7M, ED7B15, ED7B20, ED7B25, ED7B30 (Mounting format: -Y,-T,-K1 to K4)

Lateral 1-shaft type	Select a mounting code. Y (floor mounting) T (ceiling mounting) K1 (wall mounting) K2 (wall mounting) K3 (wall mounting) K4 (wall mounting)	ED7M-1-LR ED7B15-1-LR ED7B20-1-LR ED7B25-1-LR ED7B30-1-LR	ED7M-1-R ED7B15-1-R ED7B20-1-R ED7B25-1-R ED7B30-1-R	ED7M-1-L ED7B15-1-L ED7B20-1-L ED7B25-1-L ED7B30-1-L	ED7M-1-LR-O ED7B15-1-LR-O ED7B20-1-LR-O ED7B25-1-LR-O ED7B30-1-LR-O	ED7M-1-R-O ED7B15-1-R-O ED7B20-1-R-O ED7B25-1-R-O ED7B30-1-R-O	ED7M-1-L-O ED7B15-1-L-O ED7B20-1-L-O ED7B25-1-L-O ED7B30-1-L-O
		ED7M-1-UD ED7B15-1-UD ED7B20-1-UD ED7B25-1-UD ED7B30-1-UD	ED7M-1-U ED7B15-1-U ED7B20-1-U ED7B25-1-U ED7B30-1-U	ED7M-1-D ED7B15-1-D ED7B20-1-D ED7B25-1-D ED7B30-1-D	ED7M-1-UD-O ED7B15-1-UD-O ED7B20-1-UD-O ED7B25-1-UD-O ED7B30-1-UD-O	ED7M-1-U-O ED7B15-1-U-O ED7B20-1-U-O ED7B25-1-U-O ED7B30-1-U-O	ED7M-1-D-O ED7B15-1-D-O ED7B20-1-D-O ED7B25-1-D-O ED7B30-1-D-O
		ED7M-U-LR ED7B15-U-LR ED7B20-U-LR ED7B25-U-LR ED7B30-U-LR	ED7M-U-R ED7B15-U-R ED7B20-U-R ED7B25-U-R ED7B30-U-R	ED7M-U-L ED7B15-U-L ED7B20-U-L ED7B25-U-L ED7B30-U-L	ED7M-U-LR-O ED7B15-U-LR-O ED7B20-U-LR-O ED7B25-U-LR-O ED7B30-U-LR-O	ED7M-U-R-O ED7B15-U-R-O ED7B20-U-R-O ED7B25-U-R-O ED7B30-U-R-O	ED7M-U-L-O ED7B15-U-L-O ED7B20-U-L-O ED7B25-U-L-O ED7B30-U-L-O
		ED7M-D-LR ED7B15-D-LR ED7B20-D-LR ED7B25-D-LR ED7B30-D-LR	ED7M-D-R ED7B15-D-R ED7B20-D-R ED7B25-D-R ED7B30-D-R	ED7M-D-L ED7B15-D-L ED7B20-D-L ED7B25-D-L ED7B30-D-L	ED7M-D-LR-O ED7B15-D-LR-O ED7B20-D-LR-O ED7B25-D-LR-O ED7B30-D-LR-O	ED7M-D-R-O ED7B15-D-R-O ED7B20-D-R-O ED7B25-D-R-O ED7B30-D-R-O	ED7M-D-L-O ED7B15-D-L-O ED7B20-D-L-O ED7B25-D-L-O ED7B30-D-L-O
Lateral 2-shaft type		ED7M-1-1-LR ED7B15-1-1-LR ED7B20-1-1-LR ED7B25-1-1-LR ED7B30-1-1-LR	ED7M-1-1-R ED7B15-1-1-R ED7B20-1-1-R ED7B25-1-1-R ED7B30-1-1-R	ED7M-1-1-L ED7B15-1-1-L ED7B20-1-1-L ED7B25-1-1-L ED7B30-1-1-L	ED7M-1-1-LR-O ED7B15-1-1-LR-O ED7B20-1-1-LR-O ED7B25-1-1-LR-O ED7B30-1-1-LR-O	ED7M-1-1-R-O ED7B15-1-1-R-O ED7B20-1-1-R-O ED7B25-1-1-R-O ED7B30-1-1-R-O	ED7M-1-1-L-O ED7B15-1-1-L-O ED7B20-1-1-L-O ED7B25-1-1-L-O ED7B30-1-1-L-O
		ED7M-1-1-UD ED7B15-1-1-UD ED7B20-1-1-UD ED7B25-1-1-UD ED7B30-1-1-UD	ED7M-1-1-U ED7B15-1-1-U ED7B20-1-1-U ED7B25-1-1-U ED7B30-1-1-U	ED7M-1-1-D ED7B15-1-1-D ED7B20-1-1-D ED7B25-1-1-D ED7B30-1-1-D	ED7M-1-1-UD-O ED7B15-1-1-UD-O ED7B20-1-1-UD-O ED7B25-1-1-UD-O ED7B30-1-1-UD-O	ED7M-1-1-U-O ED7B15-1-1-U-O ED7B20-1-1-U-O ED7B25-1-1-U-O ED7B30-1-1-U-O	ED7M-1-1-D-O ED7B15-1-1-D-O ED7B20-1-1-D-O ED7B25-1-1-D-O ED7B30-1-1-D-O
		ED7M-U-D-LR ED7B15-U-D-LR ED7B20-U-D-LR ED7B25-U-D-LR ED7B30-U-D-LR	ED7M-U-D-R ED7B15-U-D-R ED7B20-U-D-R ED7B25-U-D-R ED7B30-U-D-R	ED7M-U-D-L ED7B15-U-D-L ED7B20-U-D-L ED7B25-U-D-L ED7B30-U-D-L	ED7M-U-D-LR-O ED7B15-U-D-LR-O ED7B20-U-D-LR-O ED7B25-U-D-LR-O ED7B30-U-D-LR-O	ED7M-U-D-R-O ED7B15-U-D-R-O ED7B20-U-D-R-O ED7B25-U-D-R-O ED7B30-U-D-R-O	ED7M-U-D-L-O ED7B15-U-D-L-O ED7B20-U-D-L-O ED7B25-U-D-L-O ED7B30-U-D-L-O

Back to top of this page

Model number ED8M, ED8B15, ED8B20, ED8B25, ED8B30 (Mounting format: -Y,-T,-K1 to K4)

Lateral 1-shaft type	Select a mounting code. Y (floor mounting) T (ceiling mounting) K1 (wall mounting) K2 (wall mounting) K3 (wall mounting) K4 (wall mounting)	ED8M-1-LR ED8B15-1-LR ED8B20-1-LR ED8B25-1-LR ED8B30-1-LR	ED8M-1-R ED8B15-1-R ED8B20-1-R ED8B25-1-R ED8B30-1-R	ED8M-1-L ED8B15-1-L ED8B20-1-L ED8B25-1-L ED8B30-1-L	ED8M-1-LR-O ED8B15-1-LR-O ED8B20-1-LR-O ED8B25-1-LR-O ED8B30-1-LR-O	ED8M-1-R-O ED8B15-1-R-O ED8B20-1-R-O ED8B25-1-R-O ED8B30-1-R-O	ED8M-1-L-O ED8B15-1-L-O ED8B20-1-L-O ED8B25-1-L-O ED8B30-1-L-O
		ED8M-1-UD ED8B15-1-UD ED8B20-1-UD ED8B25-1-UD ED8B30-1-UD	ED8M-1-U ED8B15-1-U ED8B20-1-U ED8B25-1-U ED8B30-1-U	ED8M-1-D ED8B15-1-D ED8B20-1-D ED8B25-1-D ED8B30-1-D	ED8M-1-UD-O ED8B15-1-UD-O ED8B20-1-UD-O ED8B25-1-UD-O ED8B30-1-UD-O	ED8M-1-U-O ED8B15-1-U-O ED8B20-1-U-O ED8B25-1-U-O ED8B30-1-U-O	ED8M-1-D-O ED8B15-1-D-O ED8B20-1-D-O ED8B25-1-D-O ED8B30-1-D-O
		ED8M-U-LR ED8B15-U-LR ED8B20-U-LR ED8B25-U-LR ED8B30-U-LR	ED8M-U-R ED8B15-U-R ED8B20-U-R ED8B25-U-R ED8B30-U-R	ED8M-U-L ED8B15-U-L ED8B20-U-L ED8B25-U-L ED8B30-U-L	ED8M-U-LR-O ED8B15-U-LR-O ED8B20-U-LR-O ED8B25-U-LR-O ED8B30-U-LR-O	ED8M-U-R-O ED8B15-U-R-O ED8B20-U-R-O ED8B25-U-R-O ED8B30-U-R-O	ED8M-U-L-O ED8B15-U-L-O ED8B20-U-L-O ED8B25-U-L-O ED8B30-U-L-O
		ED8M-D-LR ED8B15-D-LR ED8B20-D-LR ED8B25-D-LR ED8B30-D-LR	ED8M-D-R ED8B15-D-R ED8B20-D-R ED8B25-D-R ED8B30-D-R	ED8M-D-L ED8B15-D-L ED8B20-D-L ED8B25-D-L ED8B30-D-L	ED8M-D-LR-O ED8B15-D-LR-O ED8B20-D-LR-O ED8B25-D-LR-O ED8B30-D-LR-O	ED8M-D-R-O ED8B15-D-R-O ED8B20-D-R-O ED8B25-D-R-O ED8B30-D-R-O	ED8M-D-L-O ED8B15-D-L-O ED8B20-D-L-O ED8B25-D-L-O ED8B30-D-L-O
Lateral 2-shaft type		ED8M-1-1-LR ED8B15-1-1-LR ED8B20-1-1-LR ED8B25-1-1-LR ED8B30-1-1-LR	ED8M-1-1-R ED8B15-1-1-R ED8B20-1-1-R ED8B25-1-1-R ED8B30-1-1-R	ED8M-1-1-L ED8B15-1-1-L ED8B20-1-1-L ED8B25-1-1-L ED8B30-1-1-L	ED8M-1-1-LR-O ED8B15-1-1-LR-O ED8B20-1-1-LR-O ED8B25-1-1-LR-O ED8B30-1-1-LR-O	ED8M-1-1-R-O ED8B15-1-1-R-O ED8B20-1-1-R-O ED8B25-1-1-R-O ED8B30-1-1-R-O	ED8M-1-1-L-O ED8B15-1-1-L-O ED8B20-1-1-L-O ED8B25-1-1-L-O ED8B30-1-1-L-O
		ED8M-1-1-UD ED8B15-1-1-UD ED8B20-1-1-UD ED8B25-1-1-UD ED8B30-1-1-UD	ED8M-1-1-U ED8B15-1-1-U ED8B20-1-1-U ED8B25-1-1-U ED8B30-1-1-U	ED8M-1-1-D ED8B15-1-1-D ED8B20-1-1-D ED8B25-1-1-D ED8B30-1-1-D	ED8M-1-1-UD-O ED8B15-1-1-UD-O ED8B20-1-1-UD-O ED8B25-1-1-UD-O ED8B30-1-1-UD-O	ED8M-1-1-U-O ED8B15-1-1-U-O ED8B20-1-1-U-O ED8B25-1-1-U-O ED8B30-1-1-U-O	ED8M-1-1-D-O ED8B15-1-1-D-O ED8B20-1-1-D-O ED8B25-1-1-D-O ED8B30-1-1-D-O
		ED8M-U-D-LR ED8B15-U-D-LR ED8B20-U-D-LR ED8B25-U-D-LR ED8B30-U-D-LR	ED8M-U-D-R ED8B15-U-D-R ED8B20-U-D-R ED8B25-U-D-R ED8B30-U-D-R	ED8M-U-D-L ED8B15-U-D-L ED8B20-U-D-L ED8B25-U-D-L ED8B30-U-D-L	ED8M-U-D-LR-O ED8B15-U-D-LR-O ED8B20-U-D-LR-O ED8B25-U-D-LR-O ED8B30-U-D-LR-O	ED8M-U-D-R-O ED8B15-U-D-R-O ED8B20-U-D-R-O ED8B25-U-D-R-O ED8B30-U-D-R-O	ED8M-U-D-L-O ED8B15-U-D-L-O ED8B20-U-D-L-O ED8B25-U-D-L-O ED8B30-U-D-L-O

Back to top of this page

Model number ED10M, ED10B15, ED10B20, ED10B25, ED10B30 (Mounting format: -Y,-T,-K1 to K4)

Lateral 1-shaft type	Select a mounting code. Y (floor mounting) T (ceiling mounting) K1 (wall mounting) K2 (wall mounting) K3 (wall mounting) K4 (wall mounting)	ED10M-1-LR ED10B15-1-LR ED10B20-1-LR ED10B25-1-LR ED10B30-1-LR	ED10M-1-R ED10B15-1-R ED10B20-1-R ED10B25-1-R ED10B30-1-R	ED10M-1-L ED10B15-1-L ED10B20-1-L ED10B25-1-L ED10B30-1-L	ED10M-1-LR-O ED10B15-1-LR-O ED10B20-1-LR-O ED10B25-1-LR-O ED10B30-1-LR-O	ED10M-1-R-O ED10B15-1-R-O ED10B20-1-R-O ED10B25-1-R-O ED10B30-1-R-O	ED10M-1-L-O ED10B15-1-L-O ED10B20-1-L-O ED10B25-1-L-O ED10B30-1-L-O
		ED10M-1-UD ED10B15-1-UD ED10B20-1-UD ED10B25-1-UD ED10B30-1-UD	ED10M-1-U ED10B15-1-U ED10B20-1-U ED10B25-1-U ED10B30-1-U	ED10M-1-D ED10B15-1-D ED10B20-1-D ED10B25-1-D ED10B30-1-D	ED10M-1-UD-O ED10B15-1-UD-O ED10B20-1-UD-O ED10B25-1-UD-O ED10B30-1-UD-O	ED10M-1-U-O ED10B15-1-U-O ED10B20-1-U-O ED10B25-1-U-O ED10B30-1-U-O	ED10M-1-D-O ED10B15-1-D-O ED10B20-1-D-O ED10B25-1-D-O ED10B30-1-D-O
		ED10M-U-LR ED10B15-U-LR ED10B20-U-LR ED10B25-U-LR ED10B30-U-LR	ED10M-U-R ED10B15-U-R ED10B20-U-R ED10B25-U-R ED10B30-U-R	ED10M-U-L ED10B15-U-L ED10B20-U-L ED10B25-U-L ED10B30-U-L	ED10M-U-LR-O ED10B15-U-LR-O ED10B20-U-LR-O ED10B25-U-LR-O ED10B30-U-LR-O	ED10M-U-R-O ED10B15-U-R-O ED10B20-U-R-O ED10B25-U-R-O ED10B30-U-R-O	ED10M-U-L-O ED10B15-U-L-O ED10B20-U-L-O ED10B25-U-L-O ED10B30-U-L-O
		ED10M-D-LR ED10B15-D-LR ED10B20-D-LR ED10B25-D-LR ED10B30-D-LR	ED10M-D-R ED10B15-D-R ED10B20-D-R ED10B25-D-R ED10B30-D-R	ED10M-D-L ED10B15-D-L ED10B20-D-L ED10B25-D-L ED10B30-D-L	ED10M-D-LR-O ED10B15-D-LR-O ED10B20-D-LR-O ED10B25-D-LR-O ED10B30-D-LR-O	ED10M-D-R-O ED10B15-D-R-O ED10B20-D-R-O ED10B25-D-R-O ED10B30-D-R-O	ED10M-D-L-O ED10B15-D-L-O ED10B20-D-L-O ED10B25-D-L-O ED10B30-D-L-O
Lateral 2-shaft type		ED10M-1-1-LR ED10B15-1-1-LR ED10B20-1-1-LR ED10B25-1-1-LR ED10B30-1-1-LR	ED10M-1-1-R ED10B15-1-1-R ED10B20-1-1-R ED10B25-1-1-R ED10B30-1-1-R	ED10M-1-1-L ED10B15-1-1-L ED10B20-1-1-L ED10B25-1-1-L ED10B30-1-1-L	ED10M-1-1-LR-O ED10B15-1-1-LR-O ED10B20-1-1-LR-O ED10B25-1-1-LR-O ED10B30-1-1-LR-O	ED10M-1-1-R-O ED10B15-1-1-R-O ED10B20-1-1-R-O ED10B25-1-1-R-O ED10B30-1-1-R-O	ED10M-1-1-L-O ED10B15-1-1-L-O ED10B20-1-1-L-O ED10B25-1-1-L-O ED10B30-1-1-L-O
		ED10M-1-1-UD ED10B15-1-1-UD ED10B20-1-1-UD ED10B25-1-1-UD ED10B30-1-1-UD	ED10M-1-1-U ED10B15-1-1-U ED10B20-1-1-U ED10B25-1-1-U ED10B30-1-1-U	ED10M-1-1-D ED10B15-1-1-D ED10B20-1-1-D ED10B25-1-1-D ED10B30-1-1-D	ED10M-1-1-UD-O ED10B15-1-1-UD-O ED10B20-1-1-UD-O ED10B25-1-1-UD-O ED10B30-1-1-UD-O	ED10M-1-1-U-O ED10B15-1-1-U-O ED10B20-1-1-U-O ED10B25-1-1-U-O ED10B30-1-1-U-O	ED10M-1-1-D-O ED10B15-1-1-D-O ED10B20-1-1-D-O ED10B25-1-1-D-O ED10B30-1-1-D-O
		ED10M-U-D-LR ED10B15-U-D-LR ED10B20-U-D-LR ED10B25-U-D-LR ED10B30-U-D-LR	ED10M-U-D-R ED10B15-U-D-R ED10B20-U-D-R ED10B25-U-D-R ED10B30-U-D-R	ED10M-U-D-L ED10B15-U-D-L ED10B20-U-D-L ED10B25-U-D-L ED10B30-U-D-L	ED10M-U-D-LR-O ED10B15-U-D-LR-O ED10B20-U-D-LR-O ED10B25-U-D-LR-O ED10B30-U-D-LR-O	ED10M-U-D-R-O ED10B15-U-D-R-O ED10B20-U-D-R-O ED10B25-U-D-R-O ED10B30-U-D-R-O	ED10M-U-D-L-O ED10B15-U-D-L-O ED10B20-U-D-L-O ED10B25-U-D-L-O ED10B30-U-D-L-O

Back to top of this page

Model numbers ED12M, ED12B15, ED12B20, ED12B25, ED12B30 (mounting type: -Y, -T, -K1 to -K4)

Lateral 1-shaft type	Select a mounting code. Y (floor mounting) T (ceiling mounting) K1 (wall mounting) K2 (wall mounting) K3 (wall mounting) K4 (wall mounting)	ED12M-1-LR ED12B15-1-LR ED12B20-1-LR ED12B25-1-LR ED12B30-1-LR	ED12M-1-R ED12B15-1-R ED12B20-1-R ED12B25-1-R ED12B30-1-R	ED12M-1-L ED12B15-1-L ED12B20-1-L ED12B25-1-L ED12B30-1-L	ED12M-1-LR-O ED12B15-1-LR-O ED12B20-1-LR-O ED12B25-1-LR-O ED12B30-1-LR-O	ED12M-1-R-O ED12B15-1-R-O ED12B20-1-R-O ED12B25-1-R-O ED12B30-1-R-O	ED12M-1-L-O ED12B15-1-L-O ED12B20-1-L-O ED12B25-1-L-O ED12B30-1-L-O
		ED12M-1-UD ED12B15-1-UD ED12B20-1-UD ED12B25-1-UD ED12B30-1-UD	ED12M-1-U ED12B15-1-U ED12B20-1-U ED12B25-1-U ED12B30-1-U	ED12M-1-D ED12B15-1-D ED12B20-1-D ED12B25-1-D ED12B30-1-D	ED12M-1-UD-O ED12B15-1-UD-O ED12B20-1-UD-O ED12B25-1-UD-O ED12B30-1-UD-O	ED12M-1-U-O ED12B15-1-U-O ED12B20-1-U-O ED12B25-1-U-O ED12B30-1-U-O	ED12M-1-D-O ED12B15-1-D-O ED12B20-1-D-O ED12B25-1-D-O ED12B30-1-D-O
		ED12M-U-LR ED12B15-U-LR ED12B20-U-LR ED12B25-U-LR ED12B30-U-LR	ED12M-U-R ED12B15-U-R ED12B20-U-R ED12B25-U-R ED12B30-U-R	ED12M-U-L ED12B15-U-L ED12B20-U-L ED12B25-U-L ED12B30-U-L	ED12M-U-LR-O ED12B15-U-LR-O ED12B20-U-LR-O ED12B25-U-LR-O ED12B30-U-LR-O	ED12M-U-R-O ED12B15-U-R-O ED12B20-U-R-O ED12B25-U-R-O ED12B30-U-R-O	ED12M-U-L-O ED12B15-U-L-O ED12B20-U-L-O ED12B25-U-L-O ED12B30-U-L-O
		ED12M-D-LR ED12B15-D-LR ED12B20-D-LR ED12B25-D-LR ED12B30-D-LR	ED12M-D-R ED12B15-D-R ED12B20-D-R ED12B25-D-R ED12B30-D-R	ED12M-D-L ED12B15-D-L ED12B20-D-L ED12B25-D-L ED12B30-D-L	ED12M-D-LR-O ED12B15-D-LR-O ED12B20-D-LR-O ED12B25-D-LR-O ED12B30-D-LR-O	ED12M-D-R-O ED12B15-D-R-O ED12B20-D-R-O ED12B25-D-R-O ED12B30-D-R-O	ED12M-D-L-O ED12B15-D-L-O ED12B20-D-L-O ED12B25-D-L-O ED12B30-D-L-O
Lateral 2-shaft type		ED12M-1-1-LR ED12B15-1-1-LR ED12B20-1-1-LR ED12B25-1-1-LR ED12B30-1-1-LR	ED12M-1-1-R ED12B15-1-1-R ED12B20-1-1-R ED12B25-1-1-R ED12B30-1-1-R	ED12M-1-1-L ED12B15-1-1-L ED12B20-1-1-L ED12B25-1-1-L ED12B30-1-1-L	ED12M-1-1-LR-O ED12B15-1-1-LR-O ED12B20-1-1-LR-O ED12B25-1-1-LR-O ED12B30-1-1-LR-O	ED12M-1-1-R-O ED12B15-1-1-R-O ED12B20-1-1-R-O ED12B25-1-1-R-O ED12B30-1-1-R-O	ED12M-1-1-L-O ED12B15-1-1-L-O ED12B20-1-1-L-O ED12B25-1-1-L-O ED12B30-1-1-L-O
		ED12M-1-1-UD ED12B15-1-1-UD ED12B20-1-1-UD ED12B25-1-1-UD ED12B30-1-1-UD	ED12M-1-1-U ED12B15-1-1-U ED12B20-1-1-U ED12B25-1-1-U ED12B30-1-1-U	ED12M-1-1-D ED12B15-1-1-D ED12B20-1-1-D ED12B25-1-1-D ED12B30-1-1-D	ED12M-1-1-UD-O ED12B15-1-1-UD-O ED12B20-1-1-UD-O ED12B25-1-1-UD-O ED12B30-1-1-UD-O	ED12M-1-1-U-O ED12B15-1-1-U-O ED12B20-1-1-U-O ED12B25-1-1-U-O ED12B30-1-1-U-O	ED12M-1-1-D-O ED12B15-1-1-D-O ED12B20-1-1-D-O ED12B25-1-1-D-O ED12B30-1-1-D-O
		ED12M-U-D-LR ED12B15-U-D-LR ED12B20-U-D-LR ED12B25-U-D-LR ED12B30-U-D-LR	ED12M-U-D-R ED12B15-U-D-R ED12B20-U-D-R ED12B25-U-D-R ED12B30-U-D-R	ED12M-U-D-L ED12B15-U-D-L ED12B20-U-D-L ED12B25-U-D-L ED12B30-U-D-L	ED12M-U-D-LR-O ED12B15-U-D-LR-O ED12B20-U-D-LR-O ED12B25-U-D-LR-O ED12B30-U-D-LR-O	ED12M-U-D-R-O ED12B15-U-D-R-O ED12B20-U-D-R-O ED12B25-U-D-R-O ED12B30-U-D-R-O	ED12M-U-D-L-O ED12B15-U-D-L-O ED12B20-U-D-L-O ED12B25-U-D-L-O ED12B30-U-D-L-O

Back to top of this page

Model number ED16M, ED16B20 (mounting type: -Y, -T, -K1 to -K4)

Lateral 1-shaft type	Select a mounting code. Y (floor mounting) T (ceiling mounting) K1 (wall mounting) K2 (wall mounting) K3 (wall mounting) K4 (wall mounting)	ED16M-1-LR ED16B20-1-LR	ED16M-1-R ED16B20-1-R	ED16M-1-L ED16B20-1-L	ED16M-1-LR-O ED16B20-1-LR-O	ED16M-1-R-O ED16B20-1-R-O	ED16M-1-L-O ED16B20-1-L-O
		ED16M-1-UD ED16B20-1-UD	ED16M-1-U ED16B20-1-U	ED16M-1-D ED16B20-1-D	ED16M-1-UD-O ED16B20-1-UD-O	ED16M-1-U-O ED16B20-1-U-O	ED16M-1-D-O ED16B20-1-D-O
		ED16M-U-LR ED16B20-U-LR	ED16M-U-R ED16B20-U-R	ED16M-U-L ED16B20-U-L	ED16M-U-LR-O ED16B20-U-LR-O	ED16M-U-R-O ED16B20-U-R-O	ED16M-U-L-O ED16B20-U-L-O
		ED16M-D-LR ED16B20-D-LR	ED16M-D-R ED16B20-D-R	ED16M-D-L ED16B20-D-L	ED16M-D-LR-O ED16B20-D-LR-O	ED16M-D-R-O ED16B20-D-R-O	ED16M-D-L-O ED16B20-D-L-O

Back to top of this page

Model number ED20M, ED20B20 (Mounting format: -Y,-T,-K1 to K4)

Lateral 1-shaft type	Select a mounting code. Y (floor mounting) T (ceiling mounting) K1 (wall mounting) K2 (wall mounting) K3 (wall mounting) K4 (wall mounting)	ED20M-1-LR ED20B20-1-LR	ED20M-1-R ED20B20-1-R	ED20M-1-L ED20B20-1-L	ED20M-1-LR-O ED20B20-1-LR-O	ED20M-1-R-O ED20B20-1-R-O	ED20M-1-L-O ED20B20-1-L-O
		ED20M-1-UD ED20B20-1-UD	ED20M-1-U ED20B20-1-U	ED20M-1-D ED20B20-1-D	ED20M-1-UD-O ED20B20-1-UD-O	ED20M-1-U-O ED20B20-1-U-O	ED20M-1-D-O ED20B20-1-D-O
		ED20M-U-LR ED20B20-U-LR	ED20M-U-R ED20B20-U-R	ED20M-U-L ED20B20-U-L	ED20M-U-LR-O ED20B20-U-LR-O	ED20M-U-R-O ED20B20-U-R-O	ED20M-U-L-O ED20B20-U-L-O
		ED20M-D-LR ED20B20-D-LR	ED20M-D-R ED20B20-D-R	ED20M-D-L ED20B20-D-L	ED20M-D-LR-O ED20B20-D-LR-O	ED20M-D-R-O ED20B20-D-R-O	ED20M-D-L-O ED20B20-D-L-O

Back to top of this page

Model number ED25M, ED25B20 (Mounting format: -Y,-T,-K1 to K4)

Lateral 1-shaft type	Select a mounting code. Y (floor mounting) T (ceiling mounting) K1 (wall mounting) K2 (wall mounting) K3 (wall mounting) K4 (wall mounting)	ED25M-1-LR ED25B20-1-LR	ED25M-1-R ED25B20-1-R	ED25M-1-L ED25B20-1-L	ED25M-1-LR-O ED25B20-1-LR-O	ED25M-1-R-O ED25B20-1-R-O	ED25M-1-L-O ED25B20-1-L-O
		ED25M-1-UD ED25B20-1-UD	ED25M-1-U ED25B20-1-U	ED25M-1-D ED25B20-1-D	ED25M-1-UD-O ED25B20-1-UD-O	ED25M-1-U-O ED25B20-1-U-O	ED25M-1-D-O ED25B20-1-D-O
		ED25M-U-LR ED25B20-U-LR	ED25M-U-R ED25B20-U-R	ED25M-U-L ED25B20-U-L	ED25M-U-LR-O ED25B20-U-LR-O	ED25M-U-R-O ED25B20-U-R-O	ED25M-U-L-O ED25B20-U-L-O
		ED25M-D-LR ED25B20-D-LR	ED25M-D-R ED25B20-D-R	ED25M-D-L ED25B20-D-L	ED25M-D-LR-O ED25B20-D-LR-O	ED25M-D-R-O ED25B20-D-R-O	ED25M-D-L-O ED25B20-D-L-O

Back to top of this page
