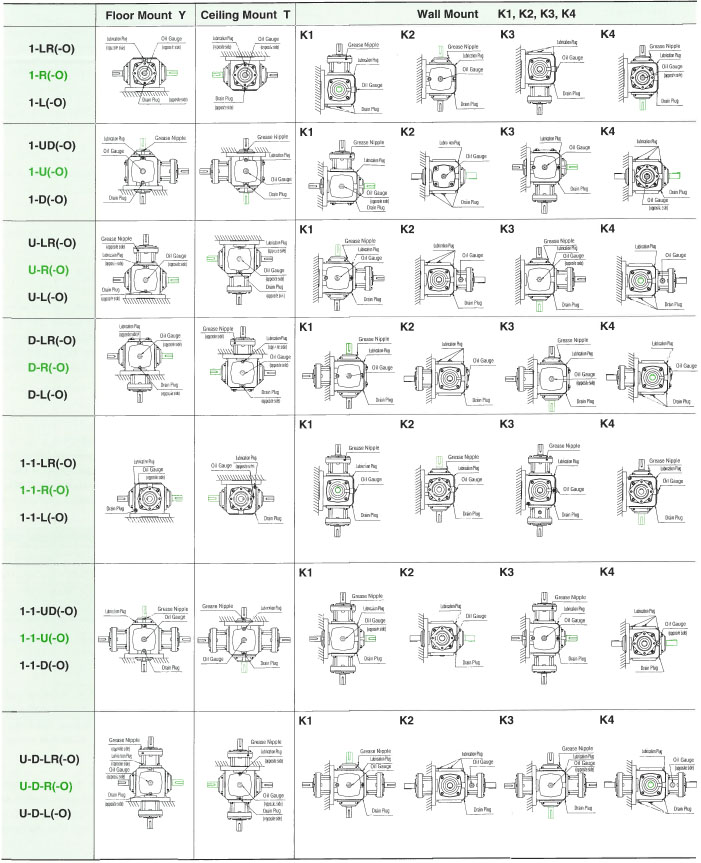

Mounting type and plug position

- Sizes 2 and 4 do not come with an oil gauge or grease nipple (can be installed in any direction).

・Floor mounting (Y) is standard for sizes 6 to 25. When ceiling mounting (T) or wall mounting (K1 to K4) is used, the positions of the oil gauge, plug, and grease nipple will differ.

・The above table is for sizes 6 to 16. The oil gauge and plug positions are different for sizes 20 and 25. Also, a pressure vent is installed for sizes 12 and above.
Please refer to the external dimensions diagram for installation locations.
