Product Guide Parts Tray Supporter/Fixing Washer
- Tray supporter/fixing washer
- Use this to attach the tray.
-
Purpose
It can be used to install trays such as drain pans and water trays.
Please use it together with the dedicated fixing washer (for M10 bolts).
-
Usage image
[Click to enlarge]
[Click to enlarge]
[Click to enlarge]
Tray supporter/fixing washer list
Tray Supporter
| Model number | TP-C13250T-TS | TP-C13255T-TS |
|---|---|---|
| type | curve | straight |
| Applicable adjustable head model number | - | |
| Pin diameter mm | - | |
| shape |  |
 |
| Material | - | |
| Head Material | - | |
| Head exterior color | - | |
| Materials other than the head | - | |
| Body Material | polyamide | |
| Body exterior color | black | |
| Element Material | stainless steel | |
| Plate Material | - | |
| Plate exterior color | - | |
| Washer Material | - | |
| MB equivalent product | MB226-62071-TS | MB226-61767-TS |
Fixing washer
| Model number | TP-C13252T-MP |
|---|---|
| type | - |
| Applicable adjustable head model number | - |
| Pin diameter mm | - |
| shape |  |
| Material | - |
| Head Material | - |
| Head exterior color | - |
| Materials other than the head | - |
| Body Material | - |
| Body exterior color | - |
| Element Material | - |
| Plate Material | polyamide |
| Plate exterior color | black |
| Washer Material | stainless steel |
| MB equivalent product | MB338-67325-MP |

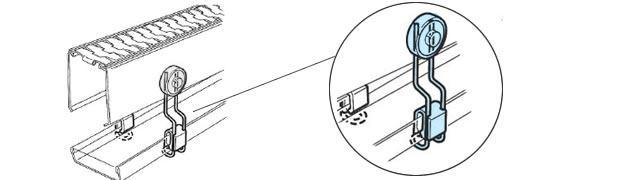

Tray supporter installation example
Attach the fixing washer along with the tray supporter and M10 bolt.
