Plastic modular chain WT1515VG-W type
- チェーンピッチ
15mm - For straight running
- Closed type
- Rubber type
- Rubber type now available in the WT1510 series Plastic modular chain ideal for replacing flat belts
- It can prevent the transported items from slipping, making it suitable for inclined transport.
- Eliminate the labor required for troublesome conveyor design! Compatible with WinCS mini conveyor units that can be ordered simply by entering the model number.
Features
-
- The rubberized surface provides high friction, making it less likely to slip off.
-
- Enables smooth handover to the next process.
-
- Chain width suitable for replacing conveyor belts
-
• Easy to maintain and allows for partial repairs.
We've added a rubber type to our WT1510 series of Plastic modular chain, ideal for replacing belt conveyors, making them perfect for inclined conveying.

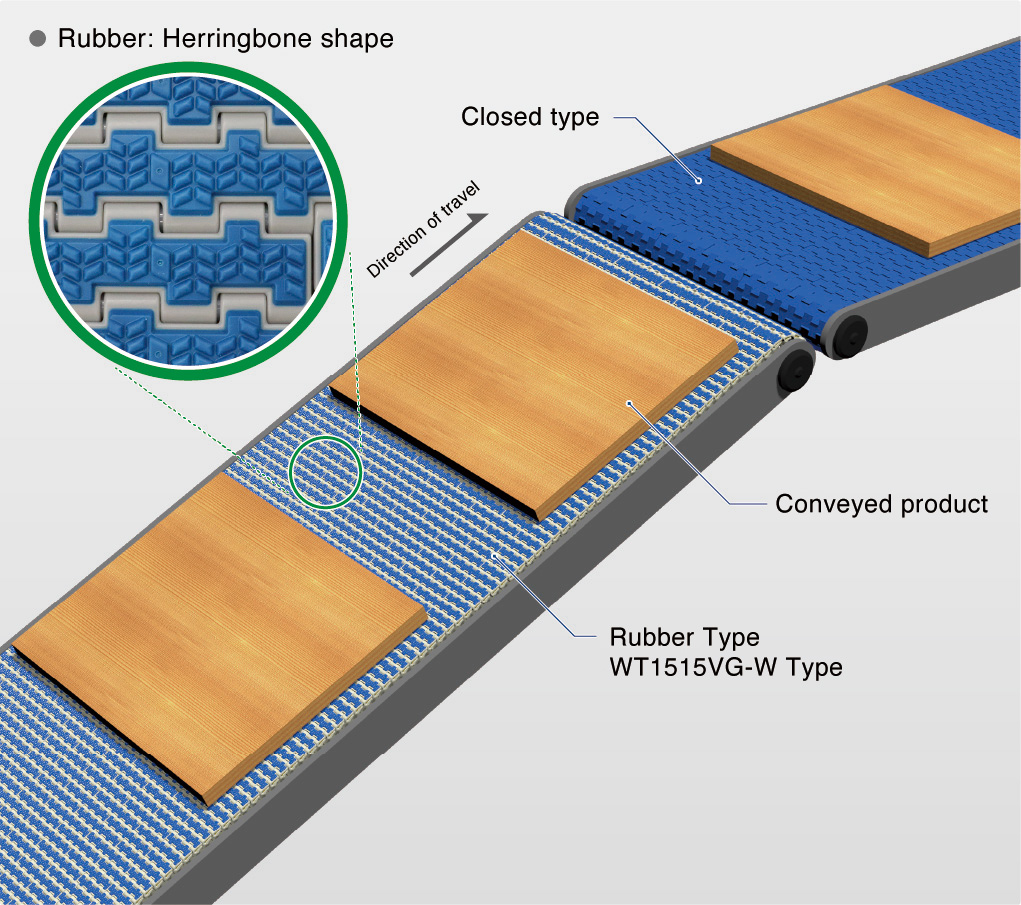

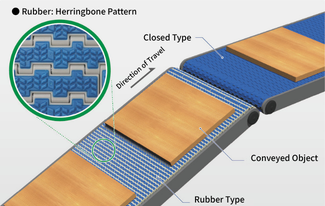

By using two-color molding (integral molding of different materials) and attaching herringbone-shaped rubber to the conveying surface, the conveying surface becomes highly frictional, suppressing slippage of conveyed objects during inclined conveyance.
The two-color molded rubber allows for inclined transport at a maximum inclination angle of 20° (*1).
Furthermore, depending on the material of the transported object and the operating environment, the optimal rubber material can be selected from two types: "standard" and "urethane".
You can choose.
■Standard specifications: Excellent hydrolysis resistance, widely compatible with general inclined conveying applications.
■Urethane specification: Excellent wear resistance suppresses friction and adhesion of Wear debris to mirror-finish conveyed objects (※2)
| Abrasion resistance | friction force | Hydrolysis resistance | Rubber adhesion | ||
|---|---|---|---|---|---|
| Urethane |  |
◎ | ◎ | × | ○ |
| Standard |
| ○ | ○ | ○ | ◎ |
*1) The maximum inclination angle is an estimate under unlubricated conditions. It may vary depending on the transport conditions and specifications.
*2) Click here for comparative test results in glass transport.
Glass transport test results
Standard Specifications
Rubber scuff marks and Wear debris are visible on the glass surface.
Urethane specifications
There is minimal abrasion and adhesion on the glass surface.
*Based on our company's test conditions.

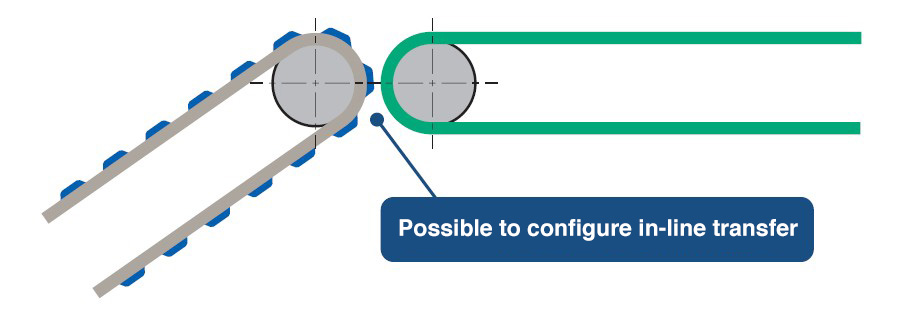

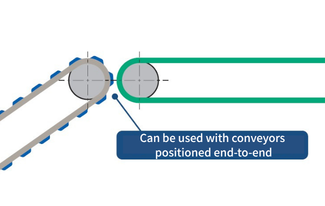

The WT1515VG-W type (rubber type) allows for the conveyor to be used with the conveyors in-line without the need for a transfer plate between them, enabling smooth transfer of conveyed items to the next process.
It is compatible with conveyor belts of 50mm and 100mm widths, making it ideal for replacing belt conveyors.
Eliminate the hassle of conveyor design! Order your conveyor unit using just the model number; it's compatible with WinCS mini.
The 50mm and 100mm chain widths utilize a slit pin system with an integrated plug.
It is easy to maintain and allows for partial repairs.
*1. It is also compatible with the conventional main unit pin + plug fastening method.
2. Chains with a width of 150mm or more will be secured using a main body pin + plug fastening method.

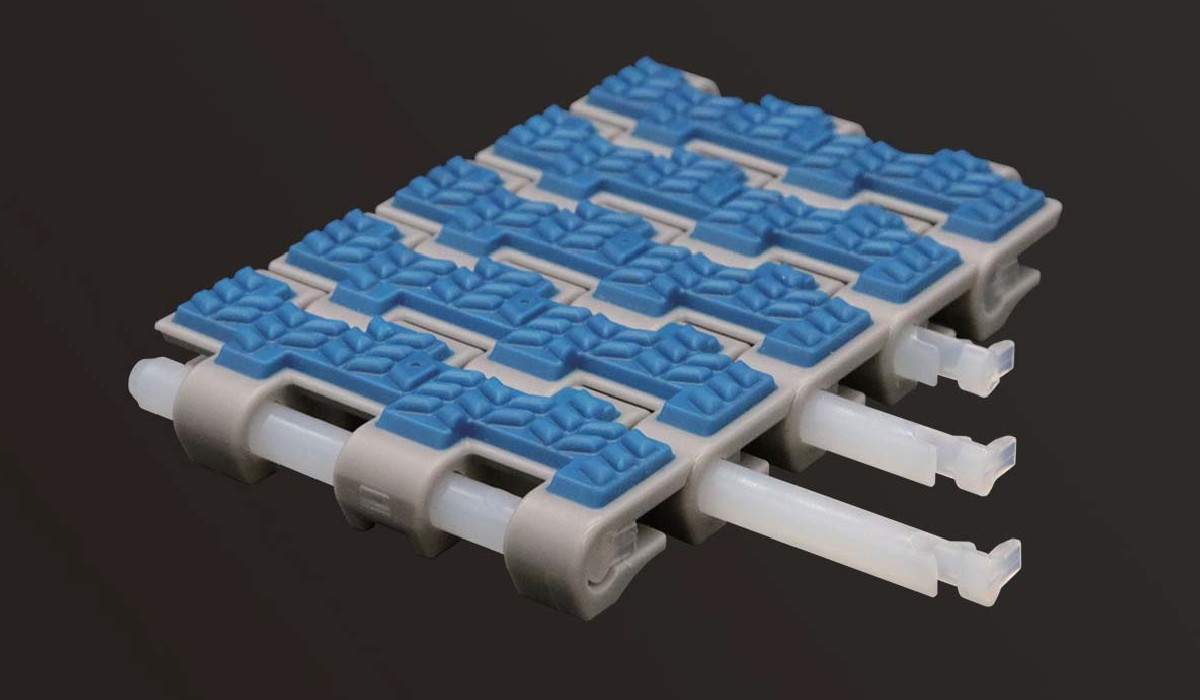

Slit pin method

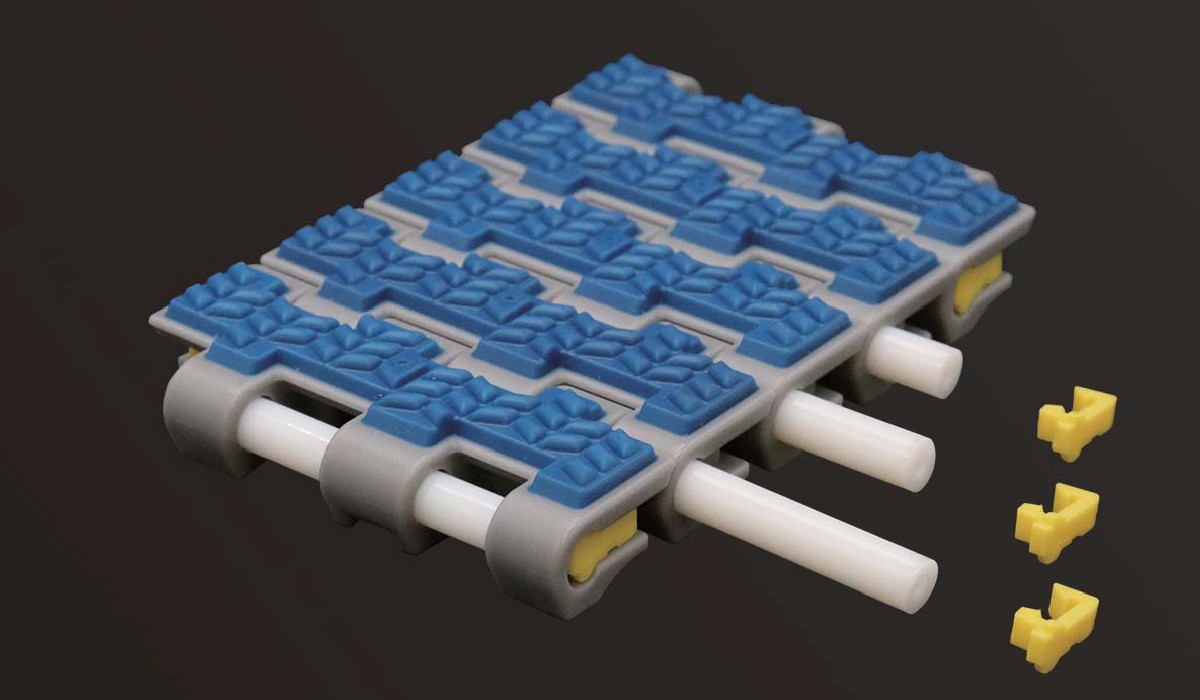

Main unit pin + plug fastening method
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | ○ | ○ | △ | ○ | ○ | ○ | ○ | ○* | ○ |
| Small | ● | ● | △ | ● | ● | ● | ● | ●* | ● |
Purpose

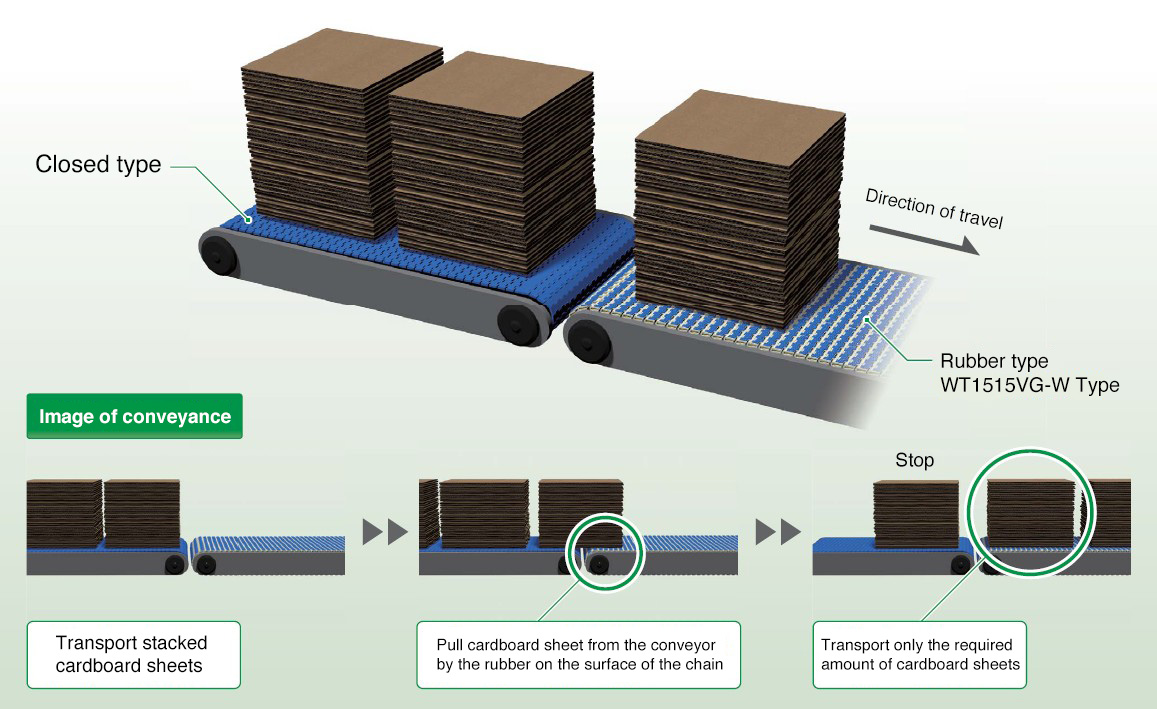

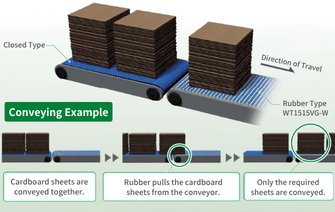

- ■Cutting and transporting corrugated cardboard sheets
Smooth transport from a closed-type conveyor to a high-friction rubber-type conveyor via in-line.
The rubber on the conveying section securely grips and pulls the corrugated cardboard sheet, making it ideal for applications where only the required amount needs to be precisely cut and transported.

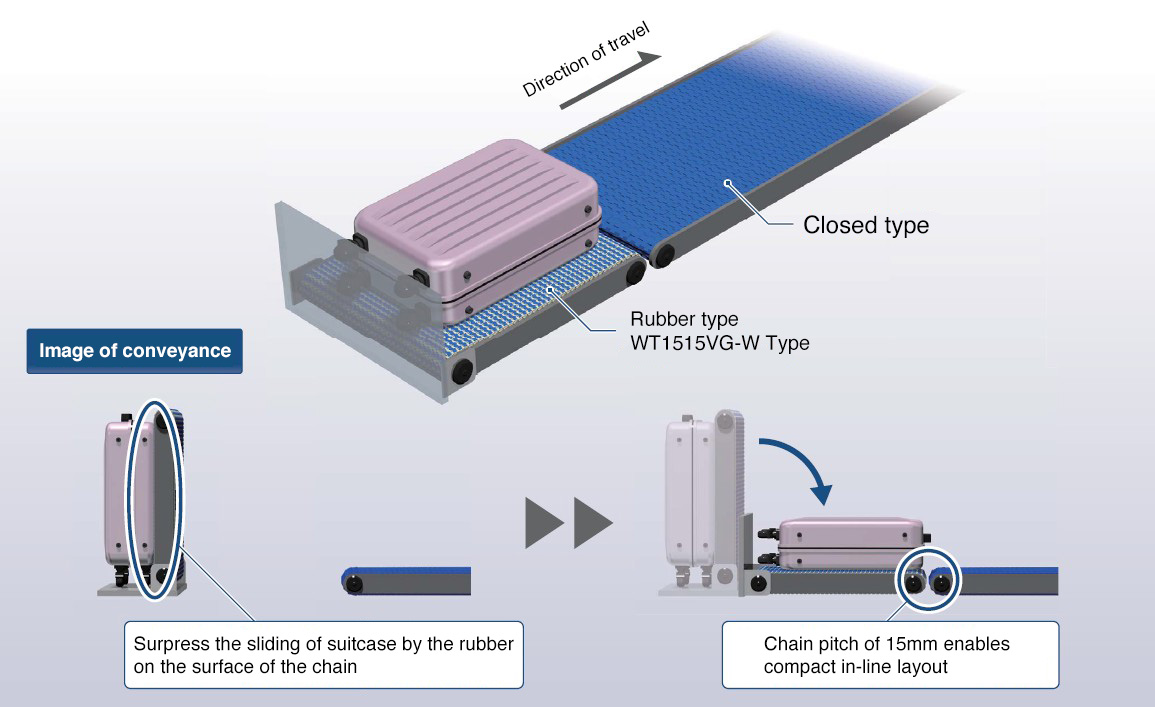

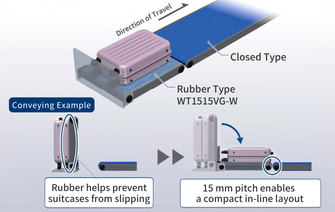

- ■ Transporting suitcases
Taking advantage of its small pitch (chain pitch 15mm), it enables a compact conveyor in-line layout that minimizes dead space.
The high-friction rubber on the transport surface provides a firm grip on the bottom, preventing suitcases from sliding or tipping over.
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 15 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| Rubber type | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT1515VG-W |
|
|
| Chain width mm | 50～2300 |
| Assembly Unit | Every 50mm |
Catalogs and Instruction Manuals
Other WT1510 series
- チェーンピッチ
15mm - For straight running
- Closed type
- Open type
- ・WT1510 series is ideal for replacing flat belt conveyors
- - It can accommodate conveyor belts of the same width as 50mm and 100mm, making it ideal for replacing belt conveyors.
- - Ideal for transporting containers in the beverage industry as well as small containers, machine parts, etc.
- · Eliminate the labor required for troublesome conveyor design! Compatible with WinCS mini conveyor units, which can be ordered simply by entering the model number.
- チェーンピッチ
15mm - For straight running
- Closed type
- Open type

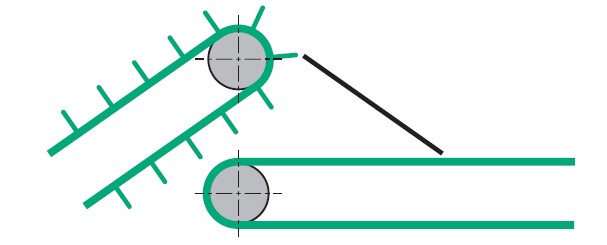

- Flight Type
