RS​ type chain with outboard roller

Product Photos
  • This is a free-flow chain in which the pins of an RS chain are extended and free-rotating outboard roller are attached to them.
  • Since multiple outboard roller can be attached, it is suitable for conveyors that directly carry small transported items.
  • We have Standard Series, lambda (Lube-free) specifications, SS (stainless steel) specifications, and Poly-steel chain combination specifications.
  • * NP Series (nickel plating) are also available, so please contact us for details.

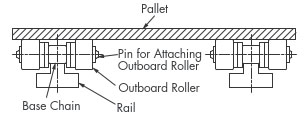

Features

  • - Equipped with outboard roller, it is suitable for making conveyors more compact.
  • - Back venting is possible, making the return side layout easier.
  • -Since multiple outboard roller can be attached, it is also suitable for conveyors that place small transported items directly on outboard roller.
  • outboard roller specifications
Features

Catalogs and Instruction Manuals

About each specification

Standard Series

  • ・The chain body is made of steel. The main rollers are also made of steel as standard.
  • -All parts of the chain body are made of heat-treated hardened steel.
  • Outboard roller are available in engineering plastic rollers (Plastic Roller, plastic brake rollers, conductive rollers) and steel rollers.
  • ・使用温度範囲：-10℃～150℃
  • ・Lubricating is required.

Lambda (Lube-free) specification

  • - By using special oil-impregnated bush, it can be used for a long period of time Lube-free.
    *The steel outboard roller require oiling.
  • -allowable tension is the same as Standard Series, but the inner and outer plates are black oxide finish for identification purposes.
  • ・使用温度範囲：-10℃～150℃
  • - Avoid using in chemicals, underwater, or in cleaning or degreasing environments.
  • Outboard roller are available in engineering plastic rollers (Plastic Roller, plastic brake rollers, conductive rollers) and steel rollers.

SS (stainless steel) specifications

  • - All parts except the pin (precipitation hardened stainless steel) are made of 18-8 stainless steel and are corrosion resistant.
  • - The chain body and body rollers are made of stainless steel and are corrosion resistant.
  • ・使用温度範囲：-20℃～400℃
  • ・Lubricating is required.

Poly-steel chain specification

  • - It consists of Inner link made of engineering plastic and an 18-8 stainless steel outer link (the pin is precipitation hardened stainless steel).
  • -Lube-free and corrosion resistant.
  • -Lightweight: 50% less noise than steel, low noise: 5db less noise than steel.
  • ・使用温度範囲：-20℃～80℃
  • ・There is no offset link. The engineering plastic color is white.

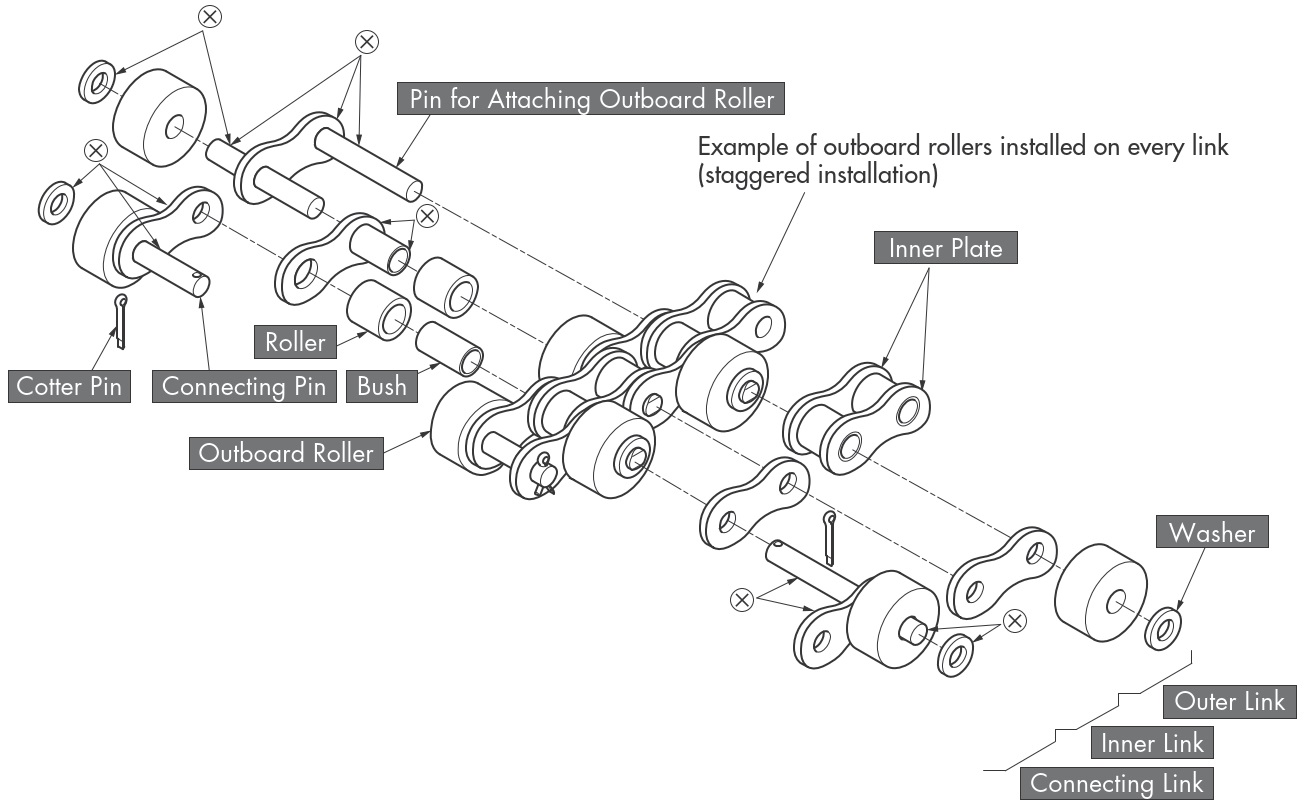

Structure


[Click to enlarge]
  • ・The x mark indicates press fit.

outboard roller installation position

When installing in staggered type When installing in parallel

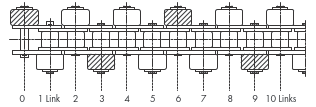

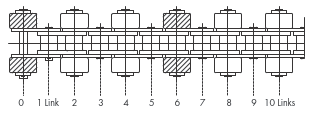

Position diagram for staggered type installation Position diagram for parallel mounting
  • ・The diagram shows an example with staggered outboard roller on every link.
  • ・When staggered type every link, the standard installation of plastic brake rollers is every 3 links (diagonal lines in the diagram).
  • The diagram shows an example of parallel outboard roller every two links. SR can be installed at intervals of more than every two links.
  • ・For parallel type every 2 links, the standard installation of plastic brake rollers is every 6 links (diagonal lines in the diagram).

Product List

*Click to display detailed information.

Chain body
specification		 Main unit
roller		 Types of plastic outboard roller Brake-equipped plastic outboard roller types Types of steel outboard roller Pitch
mm		 Roller diameter
mm		 Inner link
Inner width
mm
Plastic
Roller		 Conductive
roller		 KV
Roller		 With brake
Plastic Roller		 With spring brake
Conductive roller		 Steel roller
(Stainless steel roller *3)		 Lambda
roller
Standard Series
RS type steel RS40-SRP RS40-SRPE --- RS40-SRPB RS40-SRPBE RS40-SR RS40-SRLM 12.70 7.92 7.95
RS50-SRP RS50-SRPE --- RS50-SRPB RS50-SRPBE RS50-SR RS50-SRLM 15.875 10.16 9.53
RS60-SRP RS60-SRPE --- RS60-SRPB RS60-SRPBE RS60-SR RS60-SRLM 19.05 11.91 12.70
RS80-SRP --- --- --- --- RS80-SR RS80-SRLM 25.40 15.88 15.88
RS100-SRP --- --- --- --- RS100-SR --- 31.75 19.05 19.05
Lambda Specification
*1
RS type steel RS40-LMC-SRP RS40-LMC-SRPE --- RS40-LMC-SRPB RS40-LMC-SRPBE RS40-LMC-SR RS40-LMC-SRLM 12.70 7.92 7.95
RS50-LMC-SRP RS50-LMC-SRPE --- RS50-LMC-SRPB RS50-LMC-SRPBE RS50-LMC-SR RS50-LMC-SRLM 15.875 10.16 9.53
RS60-LMC-SRP RS60-LMC-SRPE --- RS60-LMC-SRPB RS60-LMC-SRPBE RS60-LMC-SR RS60-LMC-SRLM 19.05 11.91 12.70
RS80-LMC-SRP --- --- --- --- RS80-LMC-SR --- 25.4 15.88 15.88
SS Series
(18-8
stainless)
*2
RS type stainless RS40-SS-SRP RS40-SS-SRPE RS40-SS-SRPKV RS40-SS-SRPB RS40-SS-SRPBE RS40-SS-SR --- 12.70 7.92 7.95
RS50-SS-SRP RS50-SS-SRPE RS50-SS-SRPKV RS50-SS-SRPB RS50-SS-SRPBE RS50-SS-SR --- 15.875 10.16 9.53
RS60-SS-SRP RS60-SS-SRPE RS60-SS-SRPKV RS60-SS-SRPB RS60-SS-SRPBE RS60-SS-SR --- 19.05 11.91 12.70
RS80-SS-SRP --- --- --- --- RS80-SS-SR --- 25.40 15.88 15.88
RS100-SS-SRP --- --- --- --- RS100-SS-SR --- 31.75 19.05 19.05
Poly-steel chain
specification		 Plastic RS40-PC-SRP RS40-PC-SRPE --- RS40-PC-SRPB RS40-PC-SRPBE --- --- 12.70 7.92 7.95
RS50-PC-SRP RS50-PC-SRPE --- RS50-PC-SRPB RS50-PC-SRPBE --- --- 15.875 10.16 9.53
RS60-PC-SRP RS60-PC-SRPE --- RS60-PC-SRPB RS60-PC-SRPBE --- --- 19.05 11.91 12.70

Note
1. For convenience, the term "chain body" refers to the entire chain excluding outboard roller.
2. *1 Even if the chain itself is a lambda type, the steel outboard roller must be oiled.
3. *2 Only outboard roller mounting pin is made of precipitation hardened stainless steel.
4. When the conductive roller and chain body are NP Series, the brake is a spring brake.
5. If outboard roller are KV rollers, the main rollers will be S rollers.
6. *3 If the chain body is SS Series, the rollers will be stainless steel.

When selecting sprocket specifications

It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications.

RS chains with outboard roller cannot be used with small tooth counts (see table below) as the sprocket hub will come into contact with outboard roller, making RS sprockets incompatible.

If you are using a sprocket with a small number of teeth, please modify the hub diameter of the RS sprocket to the dimensions shown in the table below, or use the RS sprocket as is for any other number of teeth.
You can.

Chain size Number of teeth
91011121314151617181920212223
RS40202428323640444852566064687276
RS5026313641465156616671
RS603238445056
RS80447692
RS100627281

Please see the chain and sprocket compatibility chart here.

Chain and sprocket compatibility table

Number of links per unit

Unless otherwise specified, chains with outboard roller will be delivered in units of 1 unit (1 chain length).

Chain size Number of links per unit
RS40240
RS50192
RS60160
RS80120
RS10096
