SR series (indirect type)
- This model is adaptable to a wide range of usage conditions.
- The SR clutch is a clutch that, with a simple lever operation, gives one or an integer number of revolutions from the continuously rotating outer race (drive side) to inner race (load side).
- The SR series is a representative model that can be used for a wide range of purposes.
- トルク範囲：24.5～392N・m
Features
- - Excellent responsiveness
The inner surface of outer race (drive side) is full cylindrical, so when an ON/OFF command is given with the lever, outer race instantly engage or disengage, making it an extremely responsive mechanism. - ・Reliable engagement
The rollers are wedge-shaped and mesh between outer race and inner race, eliminating any slippage. - ・Stop position is fixed
The OFF (disengagement) position is always constant, so errors in the stopping position do not accumulate. - ・Excellent durability
Torque is shared by multiple rollers, there are few parts that wear, and the high-precision finish means you can expect a long life.
Structure

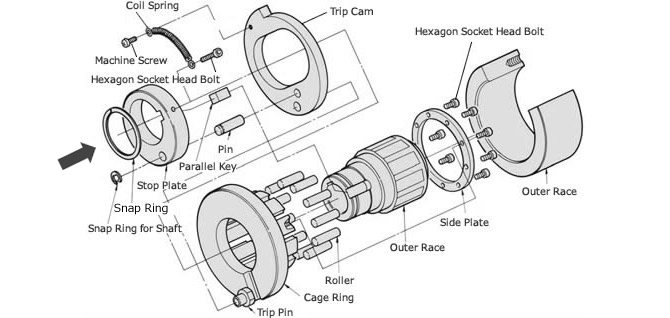

- -The main components of the SR series are inner race, outer race, roller, cage ring, trip cam, and coil spring.
- When ordering, please determine inner race rotation direction as viewed from the arrow. *Right-hand meshing (RH) or left-hand meshing (LH)
Model number display example
| SR | 15 | - | LH |
| ｜ Series Name |
｜ Shaft hole diameter: mm |
｜ Engagement direction as seen from the arrow in the structural diagram RH: Right engagement LH: Left mesh |
|
