PB Series
- Ideal for bosses with small outer diameters.
- outer race is a sleeve, making it easy to mount sprockets, gears, pulleys, etc. with small outer diameters.
- トルク範囲：29.4～2110N・m
Features
- - Gears, sprockets, pulleys, etc. with small outer diameters can be keyed to outer race.
- -Suitable for low to medium speed applications.
- - Oil-impregnated metal bearings are used.
- All types in stock and ready for immediate delivery.

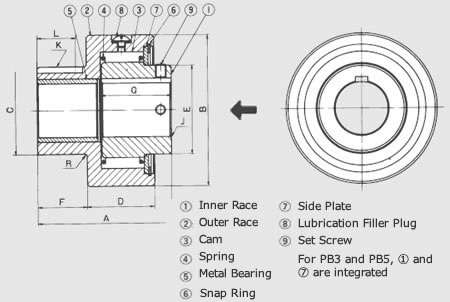

Structure
When ordering, please determine inner race meshing direction (RH) or left meshing direction (LH) as viewed from the arrow.
Model number display example
| PB | 6 | - | LH |
| ｜ Series Name |
｜ Shaft hole diameter: mm |
｜ Engagement direction as seen from the arrow in the structural diagram RH: Right engagement LH: Left mesh |
|
