MZ Series
- This type can be used for the widest range of applications.
- Pre-greased. This type can be used for the widest range of applications. Easy and secure installation.
- outer race outer surface treatment specifications.
- Coupling type (MZ-C) is also available.
- トルク範囲：186～3040N・m
Features
- -This type can be used for a wide range of applications, from low speeds to high speeds.
- All models are in stock and ready for immediate delivery (except for the MZ-C type).
- - Sprockets and other parts are attached using the inner circumference of outer race as the spigot.
- - Grease is already packed in.
- - No lubrication maintenance is required.
- -Can also be used for indexing and backstops.
- - We also have the MZ-C type with Roller chain coupling installed.
Structure

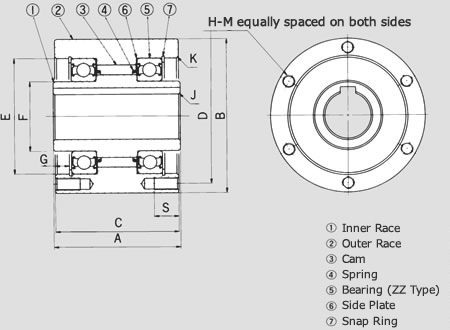

・MZ (single item)

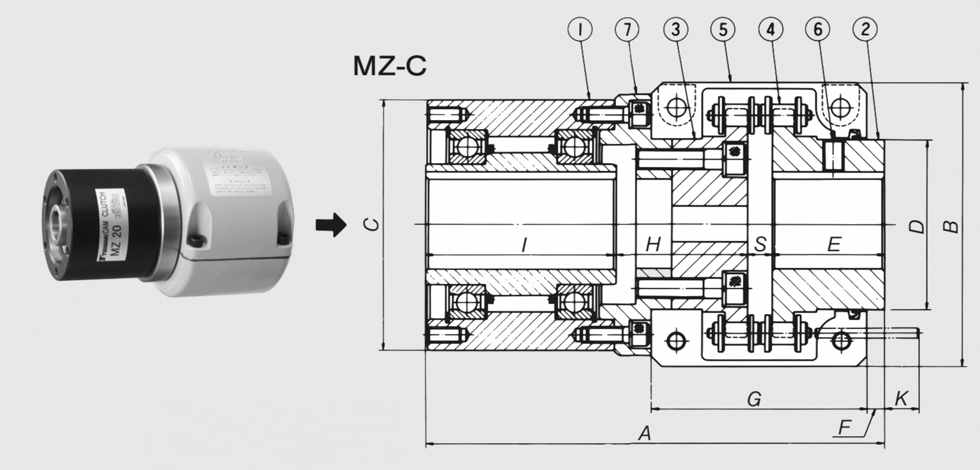

・MZ-C (coupling type)
- (1) MZ Cam Clutch
- (2) Sprocket A
- (3) Sprocket B
- (4) Roller chain
- (5) Coupling case
- (6) Set screws
- (7) Adapter
When ordering, please determine the inner race engagement direction (RH) or left engagement (LH) as viewed from the arrow.
Model number display example
・Single item
| MZ | 30 |
| ｜ Series Name |
｜ Shaft hole diameter: mm |
| MZ | 30-25 |
| ｜ Series Name |
｜ Shaft hole diameter: mm (MZ30 size with a shaft hole diameter of 25 mm) |
・Coupling type
| MZ | 20 | C | - | LH |
| ｜ Series Name |
｜ Shaft hole diameter: mm |
｜ Coupling Type |
｜ Engagement direction as seen from the arrow in the structural diagram RH: Right engagement LH: Left mesh |
|
