MZ-G Series
- This is the MZ series outer race peripheral grinding specification.
- Pre-greased. This type can be used for the widest range of applications. Easy and secure installation.
- outer race peripheral grinding treatment specification.
- トルク範囲：186～3040N・m
Features
- - The MZ series has a ground outer outer race. Sprockets and other parts are attached using the outer race periphery as a spigot.
- -Can be used for a wide range of applications, from low speeds to high speeds.
- All types in stock and ready for immediate delivery.
- - Grease is already packed in.
- - No lubrication maintenance is required.
- -Can also be used for indexing and backstops.

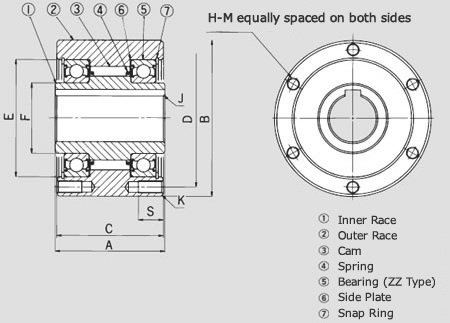

Structure
Model number display example
| MZ | 30 | G | |
| ｜ Series Name |
｜ Shaft hole diameter: mm |
｜ outer race peripheral grinding specifications |
|
| MZ | 30 | G | 25 |
| ｜ Series Name |
｜ size |
｜ outer race peripheral grinding specifications |
｜ Shaft hole diameter: mm (MZ30G size with a shaft hole diameter of 25 mm) |
