MG-R series
- Dedicated clutch for preventing reverse rotation of conveyors (for medium speeds)
- This is an easy-to-maintain type MG series cam clutch equipped with an oil reservoir.
- For medium speed idle rotation.
- This type is attached to the intermediate shaft of a reducer.
- トルク範囲：314～176000N・m
Features
- -MG series cam clutch is equipped with an oil reservoir for easy maintenance.
- - For medium speed idling, can be attached to the intermediate shaft of a reducer, etc.

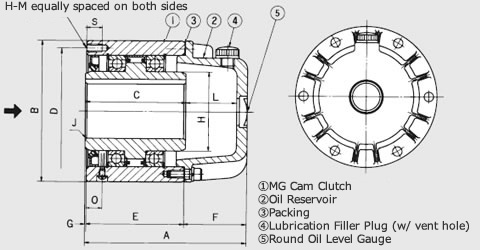

Structure
When ordering, please determine inner race meshing rotation direction as viewed from the arrow direction.
*Right-hand meshing (RH), left-hand meshing (LH)
Model number display example
| MG | 300 | R | - | LH |
| ｜ Series Name |
｜ size |
｜ Series Name |
｜ Engagement direction as seen from the arrow in the structural diagram RH: Right engagement LH: Left mesh |
|
Catalogs and Instruction Manuals
Product model number list
*Click on the model number to display detailed information.
| Model number (inner race right meshing) |
|---|
| MG300R-RH |
| MG400R-RH |
| MG500R-RH |
| MG600R-RH |
| MG700R-RH |
| MG750R-RH |
| MG800R-RH |
| MG900R-RH |
| MG1000R-RH |
| MG1100R-RH |
| MG1200R-RH |
| MG1300R-RH |
| Model number (inner race left engagement) |
|---|
| MG300R-LH |
| MG400R-LH |
| MG500R-LH |
| MG600R-LH |
| MG700R-LH |
| MG750R-LH |
| MG800R-LH |
| MG900R-LH |
| MG1000R-LH |
| MG1100R-LH |
| MG1200R-LH |
| MG1300R-LH |
