BS Series
- This is a clutch specifically designed to prevent reverse rotation of conveyors (for low speeds).
- For low speed idling applications.
- A low-speed idling type that can be attached to the final rotating shaft of a conveyor, pump, etc.
- トルク範囲：294～686000N・m
- We can also manufacture maintenance kits. Please contact us for details.
Features
- -The BS series has a cam and roller structure.
- - Thorough dust prevention measures keep out dust.
- -High reliability due to the development and adoption of a dedicated cam.
- - Sizes BS30 to BS135 are pre-greased and Do not require lubrication.
- - A low-speed, idling type that can be attached to the final rotating shaft of a conveyor, pump, etc.

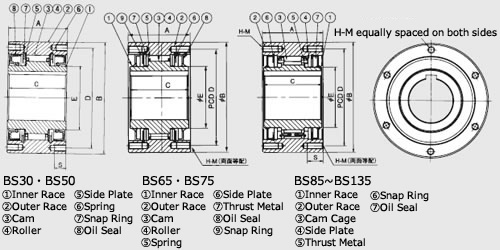

Structure
Model number display example
| BS | 85 | - | 85 | J |
| ｜ Series Name |
｜ size |
│ │ Shaft hole diameter: mm |
｜ Keyway J: New JIS normal form E: Old JIS type 2 |
|
Catalogs and Instruction Manuals
Product model number list
*Click on the model number to display detailed information. Open all Close all
|
|
