Chain wear measurement scale

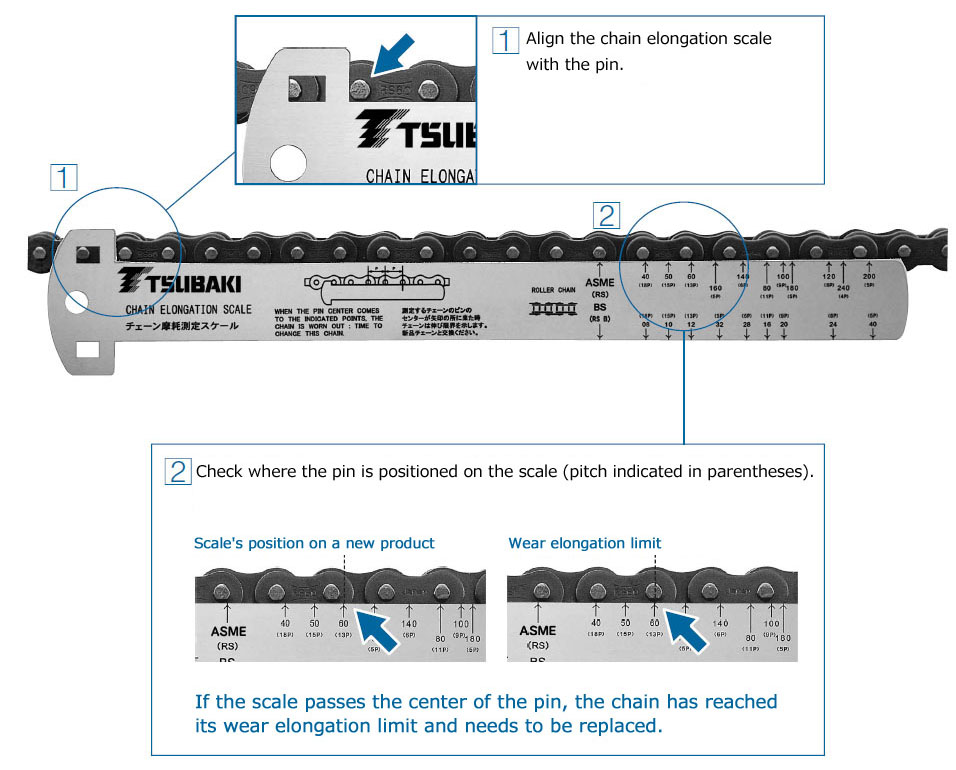

Chain pitch elongation limit can be checked at a glance.
Chain pitch elongation limit can be checked at a glance.
You can check the amount of wear on RS roller chains, BS roller chains, and Leaf chains, and be notified when it's time to replace them.

Catalogs and Instruction Manuals

[Click to enlarge]

- When checking for chain wear or elongation, be sure to turn off the power switch of the device beforehand and check when the device is completely stopped.
Also, make sure the switch is not turned on accidentally.
・For chains with special attachments and chains with K-2 attachments, there may be cases where they cannot be used due to interference depending on the attachment shape and chain size.
- When measuring chain elongation, measure the chain at a location where it meshes with the sprocket frequently.
- When checking the chain for wear and elongation, make sure to check at a position where the chain is under a certain amount of tension.
- Do not use for any purpose other than measuring chain wear.

Model number	Standard price	Delivery
RS-CES	お問合せください	お問合せください

(Note) One case contains 10 pieces.
