Worm Power Drive EW/EWM, EWJ/EWJM series
- Achieves a high balance of performance, efficiency, and cost, while also achieving high precision and compactness.
- Based on Foot mount, both solid and hollow output shafts are available.
- The solid type is ideal for coupling fastening and chain/belt drives.
- A wide variety of options make it possible to make equipment more compact.
Features
-
・High balance of capacity, efficiency and cost

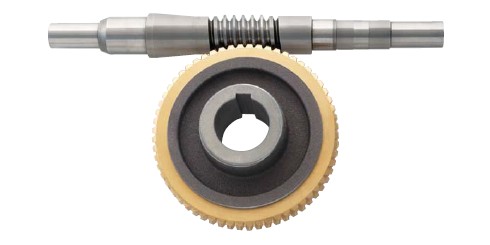

While using Cylindrical Worm, this is a highly balanced worm that combines performance, efficiency, and cost at a high level by leveraging years of technology to maximize the transmission capacity of the tooth surface.
-
-High efficiency and energy saving
In order to achieve good sliding transmission with an emphasis on efficiency, the optimum tooth surface shape has been pursued to achieve high efficiency with minimal meshing loss.
-

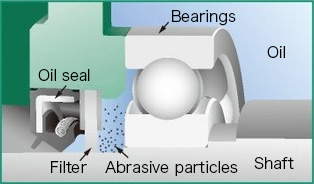

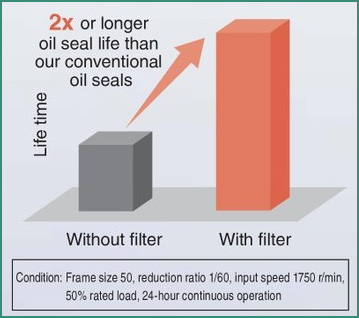

・Longer oil seal life achieved - Adopts a unique new oil seal structure
The new oil seal structure incorporates a filter inside the oil seal, which prevents Wear debris from entering the seal, extending the seal's lifespan.
-

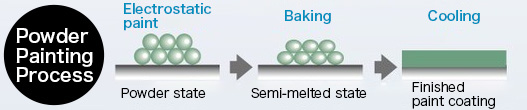

・剥離に強い静電粉体焼付塗装 (※EWJ70(一段減速)以下のもの)
We use epoxy polyester paint that does not contain thinner, making it environmentally friendly.
It improves paint adhesion and makes the paint more resistant to scratches and peeling, reducing the risk of foreign matter contamination.
・脚取付/ベースマウントで出力軸は中実軸・中空軸が選択可能です。
· Small to medium sizes available (center distance 25 to 200).
・EWJシリーズは据付方向自由の専用ケースを採用しています。
Product Specifications
EW Series
| Worm gear type | Cylindrical Worm | |
|---|---|---|
| size | Small to medium size | |
| 心間 80mm～200mm | ||
| Reduction ratio | single reduction | 1/10～1/60 |
| Double reduction | 1/100～1/3600 | |
| torque | 300～5300 N・m | |
EWJ Series
| Worm gear type | Cylindrical Worm | |
|---|---|---|
| size | Small | |
| 心間 25mm～70mm | ||
| Reduction ratio | single reduction | 1/10～1/60 |
| Double reduction | 1/100～1/3600 | |
| torque | 12～300 N・m | |
Structure

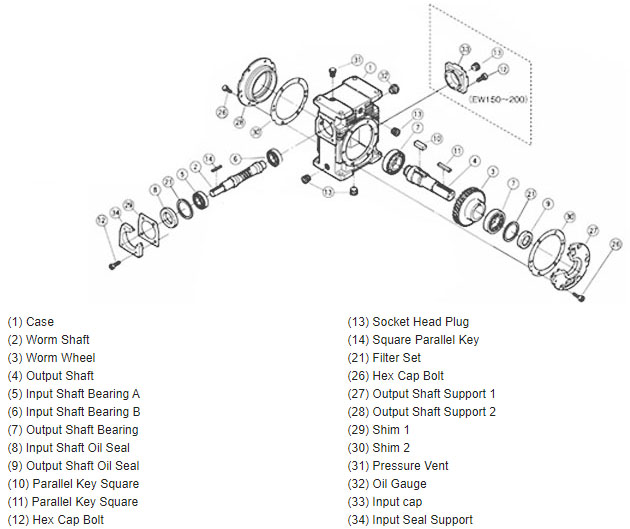

EW80～200
This diagram is a representative example.

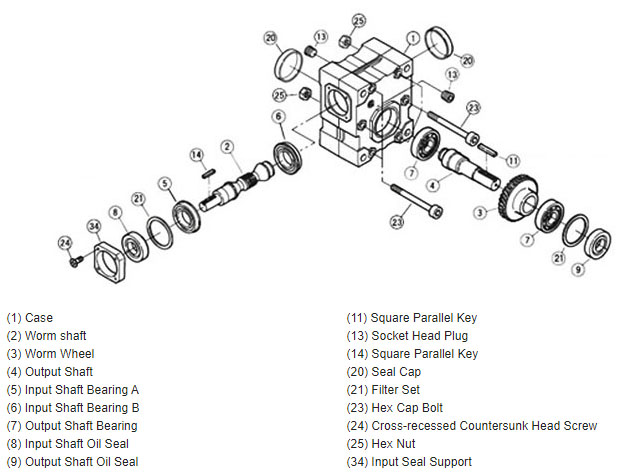

EWJ25～42
This diagram is a representative example. EWJ50 to 70 have slightly different structures.
Catalogs and Instruction Manuals
Please select the motor handling.
Please select the motor handling.
Model number display example
| ・Single reduction | |||||||
| No motor | EWJ | 25 | E | 10 | L | ||
| With motor | EWJM | 42 | E | 30 | LR | 040 | S |
| EWJMR | 42 | E | 10 | LR | 075 | ||
・ Double reduction |
|||||||
| No motor | EWJ | 50 | T | 100 | R-L | ||
| With motor | EWJM | 70 | B | 500 | R-L | 020 | S |
| EWMR | 80 | B | 100 | R-L | 075 | ||
| ｜ series |
｜ size |
｜ Mounting Position |
｜ Reduction ratio |
｜ Shaft Arrangement |
｜ Motor Capacity |
｜ Motor handling |
|
| 25 ～ 200 |
explanatory diagram Single reduction Double reduction |
10：1/10 ～ 3600：1/3600 |
explanatory diagram Single reduction Double reduction |
010：0.1kW ～ 550：5.5kW |
See table below |
| series | Explanation of symbols |
|---|---|
| EWJM, EWM | S: Shipped with standard motor installed SB: Shipped with standard brake motor installed SX: Shipped with supplied motor installed Y: Motor to be installed by the customer |
| EWJMR, EWMR | No symbol: Standard motor installed when shipped B: Shipped with standard brake-equipped motor |
■ Tsubaki model No. navigation
series
EWJ/EW: These are types that are basically Foot mount. Sizes 70 and below are the EWJ series, and sizes 80 and above are the EW series.
SWJ/SW: These are types based on flange mounting and on-shaft mounting. Sizes 70 and below are the SWJ series, and sizes 80 and above are the SW series.
EWJM(R)/EWM(R): A type with a motor attached to the EWJ/EW series.
SWJM(R)/SWM(R): A type with a motor attached to the SWJ/SW series.
size
Indicates the size of the reducer.
Mounting Position
E or T: Type where the input shaft is above the output shaft.
For the EWJ, EWJM, SWJ, and SWJM series with a reduction ratio of 1/60 or less, E
In all other cases, it will be T.
B: This type has the input shaft lower than the output shaft.
V: A type in which the output shaft is vertical.
Please refer to the catalog for details.
Reduction ratio
Indicates the reduction ratio.
Models with a reduction ratio of 1/60 or less are single reduction, and those 1/100 or more are double reduction.
Shaft arrangement
Indicates the relationship between the mounting surface and the input/output shaft.
Please refer to the catalog for details.
Motor Capacity
This indicates the motor capacity when a motor is included.
Motor handling
S or no symbol: A standard motor will be installed and shipped.
SB, B: A standard motor with brake will be installed and shipped by our company.
SX: We will install the motor provided by the customer and ship it to you.
Y: This is a type with a motor flange that allows the customer to install the motor themselves.
Option symbol
Z: This motor is compatible with inverter drive.
W: Suitable for outdoor installation.
V: The power supply voltage and frequency are 400/400/440V, 50/60/60Hz.
V1: The power supply voltage and frequency are 380V and 50Hz.
V2: The power supply voltage and frequency are 380V, 60Hz.
V3: The power supply voltage and frequency are 415V, 50Hz.
V4: The power supply voltage and frequency are 460V, 60Hz.
N: CE compliant.
N2: UL standard compliant specifications.
*N3: CCC specification.
H: Comes with an aluminum terminal box.
Q: Manual brake release available
M: Rotation can be controlled manually from the motor fan side.
Auxiliary symbols
・Terminal box position
Move the terminal box to a position where it has been rotated counterclockwise as viewed from the motor side.
P1: 90° offset P2: 180° offset P3: 270° offset
・Terminal box exit direction
Move the outlet to a position rotated clockwise as viewed from the terminal box.
・Motor capacity 0.75kW or less
D1: 90° offset D2: 180° offset D3: 270° offset
・Motor capacity 1.5kW or more
E1: 90° offset E2: 180° offset E3: 270° offset
Product List
*Click on the model number to display detailed information. Open all Close all
| Reduction ratio | Output shaft | E-type |
|---|---|---|
| 1/10 | solid | EWJ25E10L EWJ25E10R EWJ25E10LR |
| 1/15 | solid | EWJ25E15L EWJ25E15R EWJ25E15LR |
| 1/20 | solid | EWJ25E20L EWJ25E20R EWJ25E20LR |
| 1/25 | solid | EWJ25E25L EWJ25E25R EWJ25E25LR |
| 1/30 | solid | EWJ25E30L EWJ25E30R EWJ25E30LR |
| 1/40 | solid | EWJ25E40L EWJ25E40R EWJ25E40LR |
| 1/50 | solid | EWJ25E50L EWJ25E50R EWJ25E50LR |
| 1/60 | solid | EWJ25E60L EWJ25E60R EWJ25E60LR |
| Reduction ratio | Output shaft | E-type |
|---|---|---|
| 1/10 | solid | EWJ35E10L EWJ35E10R EWJ35E10LR |
| 1/15 | solid | EWJ35E15L EWJ35E15R EWJ35E15LR |
| 1/20 | solid | EWJ35E20L EWJ35E20R EWJ35E20LR |
| 1/25 | solid | EWJ35E25L EWJ35E25R EWJ35E25LR |
| 1/30 | solid | EWJ35E30L EWJ35E30R EWJ35E30LR |
| 1/40 | solid | EWJ35E40L EWJ35E40R EWJ35E40LR |
| 1/50 | solid | EWJ35E50L EWJ35E50R EWJ35E50LR |
| 1/60 | solid | EWJ35E60L EWJ35E60R EWJ35E60LR |
| Reduction ratio | Output shaft | E-type |
|---|---|---|
| 1/10 | solid | EWJ42E10L EWJ42E10R EWJ42E10LR |
| 1/15 | solid | EWJ42E15L EWJ42E15R EWJ42E15LR |
| 1/20 | solid | EWJ42E20L EWJ42E20R EWJ42E20LR |
| 1/25 | solid | EWJ42E25L EWJ42E25R EWJ42E25LR |
| 1/30 | solid | EWJ42E30L EWJ42E30R EWJ42E30LR |
| 1/40 | solid | EWJ42E40L EWJ42E40R EWJ42E40LR |
| 1/50 | solid | EWJ42E50L EWJ42E50R EWJ42E50LR |
| 1/60 | solid | EWJ42E60L EWJ42E60R EWJ42E60LR |
