Bearing Cage Chain

製品写真
  • A needle cage (made of engineering plastic) is inserted between the pin and bushing.
  • After a small amount of initial wear elongation (0.03%) occurs at the start of movement, no further wear elongation occurs.
  • The main chain is made of steel and is a cheaper chain than Bearing Bush Chain.

Features

  • - After a slight initial wear elongation (0.03%) occurs at the start of exercise, no further wear elongation occurs.
  • - It is cheaper than NB (Standard) Series Bearing Bush Chain and offers excellent cost performance.
  • ・使用温度範囲：-10℃～60℃
  • - RF Double pitch pitch R roller sprockets can be used.

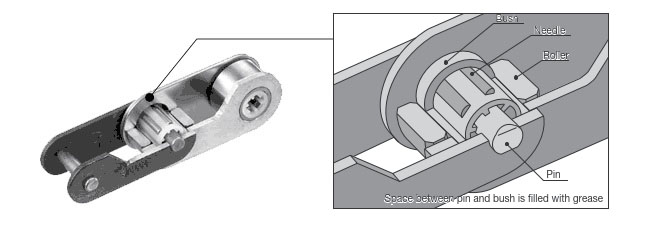

Structure

Structure

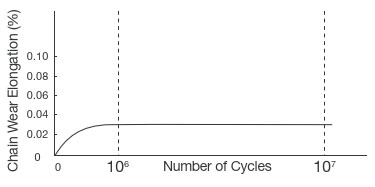

Wear elongation diagram

Wear elongation diagram

Operating conditions

  • Chain number: RF2040R-NC
  • ・チェーン張力：0.44kN{45kgf}
  • Chain speed: 70m/min (acceleration test)
  • - Number of sprocket teeth: 12T x 12T
  • ・Number of links: 44 links
  • ・Continuous operation

Precautions

  • -Maximum allowable load is 40% lower than NB (Standard) Series Bearing Bush Chain specification, so please check the applied tension when replacing.

Attachment type

When selecting sprocket specifications

It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications.

For Bearing Cage Chain, please use standard steel Double pitch sprockets with R roller specifications.

Please see the chain and sprocket compatibility chart here.

Chain and sprocket compatibility table

Catalogs and Instruction Manuals

Product List

*Click to display detailed information.

Pitch
mm		 Product name Roller diameter
mm		 Inner link
Inner width
mm
25.40 RF2040R-NC 15.88 7.95
31.75 RF2050R-NC 19.05 9.53
38.10 RF2060R-NC 22.23 12.70
50.80 RF2080R-NC 28.58 15.88
