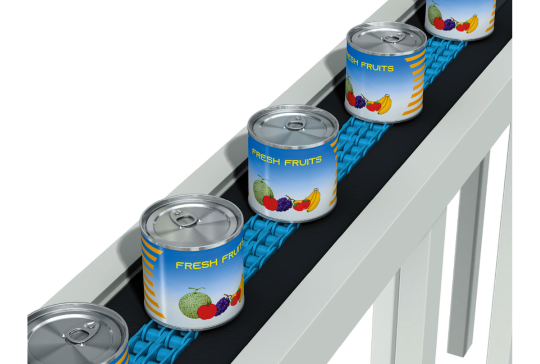

Direct loading of cans during transport reduces damage to the transported items and minimizes noise during transport.
Poly-steel chain
overview
Poly-steel chain were adopted for the purpose of transporting cans by placing them directly on the top surface of the chain.
Because Poly-steel chain uses engineering plastics for Inner link, it is less likely to damage the transported goods and enables low-noise transport.
Problem
In direct-loading can transport, the cans are placed directly on the chain during transport, which posed a problem as they could be damaged by contact with the chain.
Adopted products
Poly-steel chain
This clean and lightweight chain utilizes engineering plastics in Inner link, resulting in Lube-free, low-noise, and lightweight design.
The outer plate and pins are made of 18-8 stainless steel, and Inner link is made of engineering plastic (white).
Benefits of adopting the product
Because Poly-steel chain uses engineering plastic for Inner link, it is easier to reduce friction when in contact with the transported goods, thus reducing scratches on the can surface.
Furthermore, it enables lower noise levels during transport compared to general-purpose chains.
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
Click here for details on the adopted products
Click here for consultation
