Packaged rice
- washed rice
- immersion
- Addition of water
- rice cooking
- packaging
- shipping
Thoroughly wash away any bran or impurities from the surface of the rice.
Soak the rice thoroughly in water to ensure it cooks up fluffy.
Fill each tray with one item.
It sterilizes at high temperatures in a short amount of time.
We strictly control the amount of water to ensure even cooking.
It is cooked to a fluffy texture using direct heat or steam.
Each meal is individually sealed and packaged in a cleanroom.
Let it steam for a certain amount of time to ensure even softness.

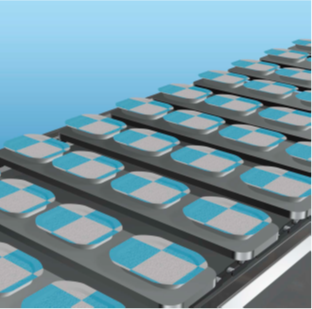

Filling and sterilization process
Stainless steel chain, LSK specification
By using special engineering plastic bushings that are highly resistant to wear and elongation, chain wear and elongation can be suppressed, resulting in a longer lifespan.
It can be used up to 180°C and is chemical resistant.
POINT
long life

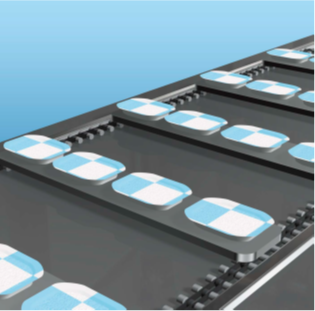

Sealing and cooling process
Lambda Chain
In situations where lubrication is difficult, Lambda Chain employs special oil-impregnated bush and can be used Lube-free. Furthermore, the impregnation oil used is NSF H1 compliant for food machinery, contributing to food safety.
POINT
clean
Conveying process
Chain with outboard roller
Using engineering plastics for outboard roller helps reduce noise and rolling resistance.
We can also handle KV rollers with heat resistance and special engineering plastics with impact resistance.
POINT
clean

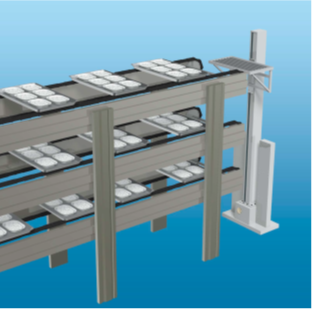

Rice cooker lift (forward and backward movement)
Zip Master
This is a cantilever-type electric High-speed lifter that integrates Zip Chain, linear guide, and motor. Unlike conventional lifts that require extensive assembly, Zip Master 's "plug and play type" design means you can use it simply by placing it down. Its high speed, high frequency, and high lifting height expand its range of applications.
POINT
Increased production capacity
Packaging and inspection process

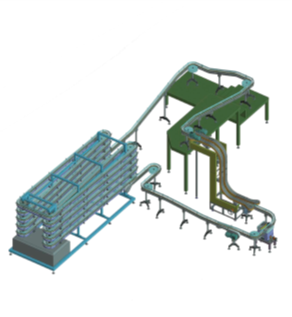

U-TOP Conveyor System
This conveyor system features a standardized, hygienic stainless steel frame and resin chains that allow for easy layout construction. Its modular structure accommodates diverse layouts, and assembly is simple.
POINT
Improved maintainability
The page for Tsubaki Yamakyu Chain Co., Ltd. will open.
Kamameshi (rice cooked in a pot)
- washed rice
- immersion
- Mixing and stirring
- loosening
- shipping
Thoroughly wash away any bran or impurities from the surface of the rice.
Soak the rice thoroughly in water to ensure it cooks up fluffy.
Fill each tray with one item.
The rice is cooked evenly in a conveyor length rice cooker.
Let it steam for a certain amount of time to ensure even softness.
The cooked rice is loosened using a machine.
Let it steam for a certain amount of time to ensure even softness.

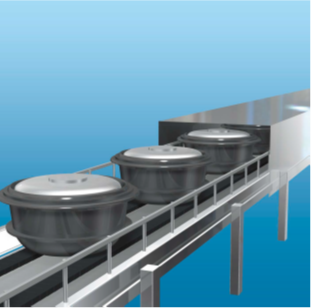

Rice cooking and steaming process
Plastic Top chain heat-resistant, high-speed specification (KV)
Our plastic Top chain, which are less likely to damage the transported items, are also available in heat-resistant and high-speed (KV) specifications for transporting high-temperature kettles.
POINT
Heat-resistant specifications
Please select a product that meets the KV specifications from Selection Guide.

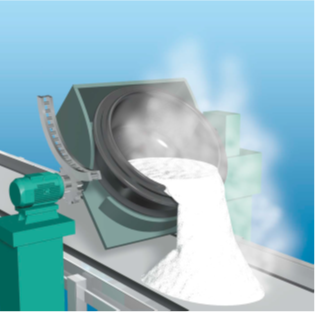

Kettle inversion process
Pin gear drive Unit
This drive unit, which includes a specially toothed pin gear that meshes with the pin wheel, expands the freedom of rotational drive.
It employs a segmented design, allowing it to be installed at the required angle.
The use of hollow pins makes it easy to attach to the mating device.
*High-corrosion-resistant specifications and stainless steel types are also available for corrosive environments.
POINT
Improved maintainability
Conveying process
Small gear motor, waterproof specification
This motor features a special coating and is equivalent to an IP65 protection rating.
It can also be used on conveyors that directly spray water for cleaning.
We also offer a wide range of options, including special coatings with excellent chemical resistance and stainless steel output shafts.
More details about small gear motors
Small gear motor, food (conveying) specifications.
- Common to both food specifications and food transport specifications.
- Food transport specifications (0.2kW and 0.4kW only)
- Food-grade
Containing NSF-certified H1 grease, this product contributes to food safety.
The product is coated with powder-based paint containing an antibacterial agent to suppress the growth of mold and bacteria.
The finless design makes cleaning easier.
It supports capacities from 0.1kW to 5.5kW and offers a wide range of options, including different voltages, brakes, and Power-Lock.
For product inquiries, please contact us here
Packaging and inspection process
U-TOP Conveyor System
This conveyor system features a standardized, hygienic stainless steel frame and resin chains that allow for easy layout construction. Its modular structure accommodates diverse layouts, and assembly is simple.
POINT
Improved maintainability
The page for Tsubaki Yamakyu Chain Co., Ltd. will open.
