Bread making
Panning process
Various ingredients are added to the mixer to combine the dough.

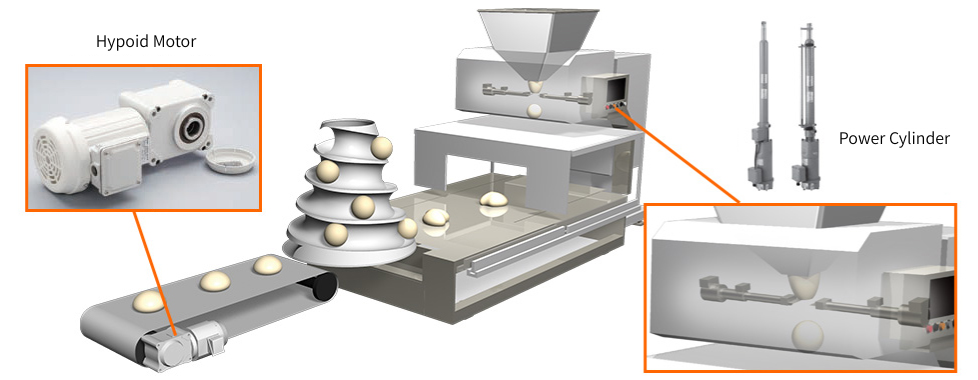

There are dividers and rounders for dividing the mixed dough into smaller pieces. Each machine uses Tsubaki products suited to its specific purpose.
Dough Mixer -Power Cylinder / Heavy duty drive chain & Sprocket -
Power Cylinder (electric cylinder)

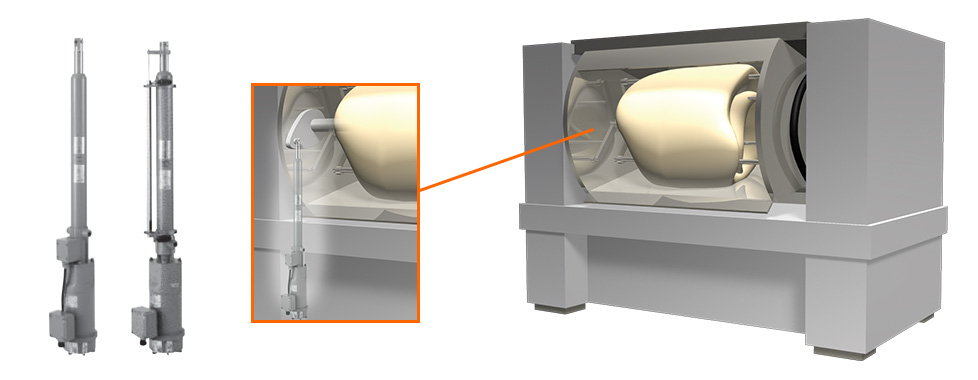

Tilt the bowl used for kneading the dough to discharge it.
Because hydraulic cylinders pose a risk of oil leakage for tilting, Tsubaki's electric cylinder, "Power Cylinder," which operates solely on electricity, is used.
Since there are no hydraulic pumps or piping, concerns about oil leaks from joints are reduced.
More details about Power Cylinder
For questions about the product, please click here

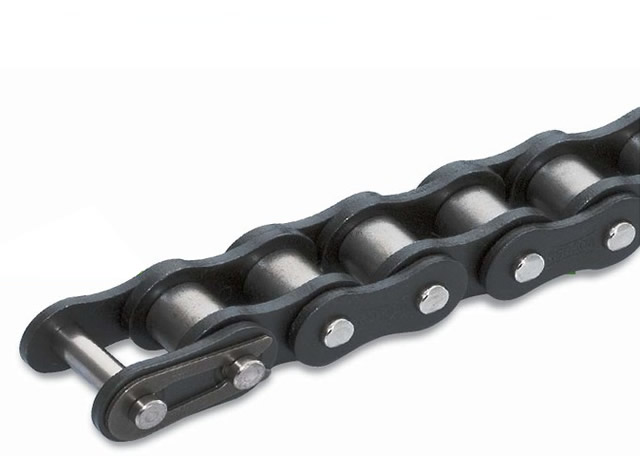

Heavy duty drive chain & sprocket
Heavy duty drive chain have a higher allowable tension than Drive chain, allowing for size reduction and enabling compact equipment design even in confined spaces. We also offer the "TOUGH TOOTH" sprocket, which is ideally suited for Heavy duty drive chain.
Learn more about Heavy duty drive chain
Learn more about sprockets for RS-HT chain
Dividing and rounding machine -Hypoid Motor food conveying specifications -
The process of directly transporting the fabric requires a high level of cleanliness.

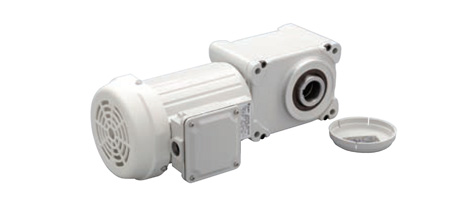

Tsubaki's Hypoid Motor food transport specifications feature antibacterial powder coating and are filled with food-grade grease. Furthermore, the motor is finless, making it hygienic and easy to clean.
Main specifications of Hypoid Motor food transport specification
| Compatible models | Hypoid Motor TA series (hollow shaft type only) |
|---|---|
| Motor capacity (kW) | 0.2kW, 0.4kW |
| Reduction ratio | 1/10-1/200 |
| Specification Code | FD |
| Motor fins | None |
| Motor Fan | None (only 0.2kW compatible) |
| Aluminum die-cast terminal box | Slim type |
| Fan cover | Made of resin |
| Features |
|
| Optional support | Hollow shaft Power-Lock |
Video content: Small gear motors for the food industry
Learn more about Hypoid Motor
For questions about the product, please click here
Bread making
Fermentation process
After the first fermentation is complete and the dough has been divided and rounded, it is circulated through an intermediate fermentation machine to allow it to rise and become fluffy.
Tsubaki's conveyor chains and speed reducers play a vital role in transporting fabric and driving machinery.
Intermediate fermentation machine -Small size conveyor chain / Lambda Chain (Lube-free conveyor chain) -
Small size conveyor chain with attachment
We offer a comprehensive lineup of Small size conveyor chain, and we also manufacture and deliver many chains with special attachments tailored to our customers' needs. We can also manufacture chains with extension pins and special attachments that can accommodate a variety of brackets.
Small size conveyor chain with extension pins
Learn more about Small size conveyor chain with attachments
For questions about the product, please click here
Bread making
Firing process
The dough, which has become fluffy through fermentation, is then baked slowly in the oven.
Tsubaki conveyor chains are used for conveying within the oven, Troi Drive are used to drive the chains, and Shock Guard are used to protect the equipment.
Tunnel oven -Large size conveyor chain / Troi Drive / Shock Guard-

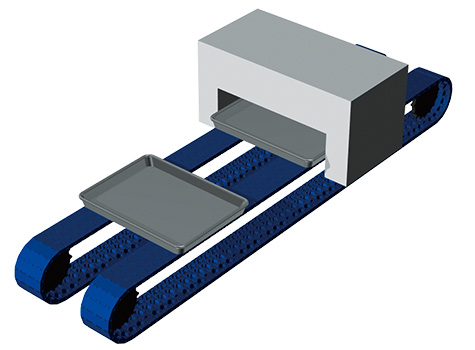

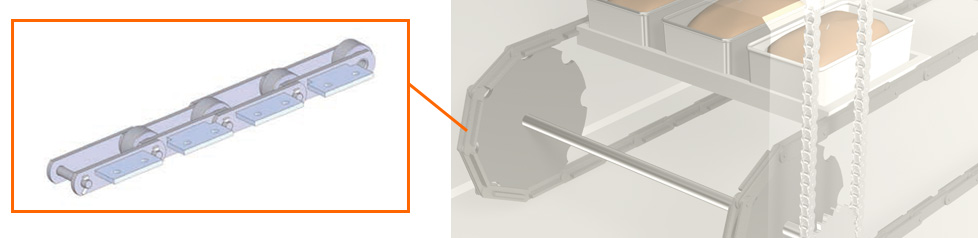

Large size conveyor chain

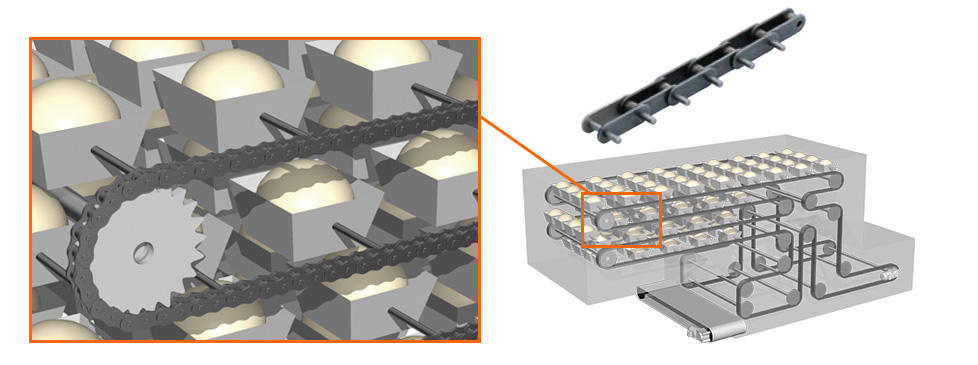

To transport molds of various sizes, Tsubaki's Large size conveyor chain, which allow for the custom fabrication of pitches and attachments, are used.
Because tunnel ovens are conveyor length and subject to high loads, specifications with increased tensile strength and improved wear resistance are also used.
More information about Large size conveyor chain
For questions about the product, please click here

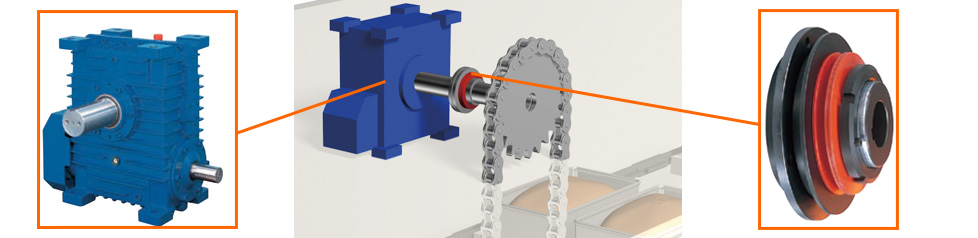

Troi Drive (Troidal Worm gear reducer)

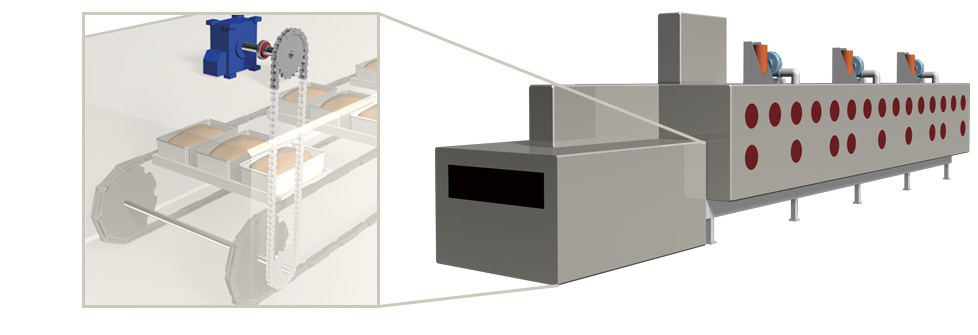

For conveyor length main chain drives, a highly efficient and compact Troi Drive is employed. It features a high-performance worm gear with Troidal toroidal worm gear.
Shock Guard (Mechanical protector)
Shock Guard are used to prevent equipment damage in the event of overload. Mechanical shock guards are also easy to Auto reset, thus preventing significant line stoppages.
Learn more about Troi Drive
Learn more about Shock Guard
Bread making
Stacking machine
In the bread-making process, there is equipment that stacks bread molds, baking sheets, and plastic cases for storage.
The stacking machine employs a Tsubaki Zip Chain Actuator, which offers space-saving, high-speed operation, and energy efficiency.
Stacking machine - interlocking chain actuator Zip Chain Actuator-

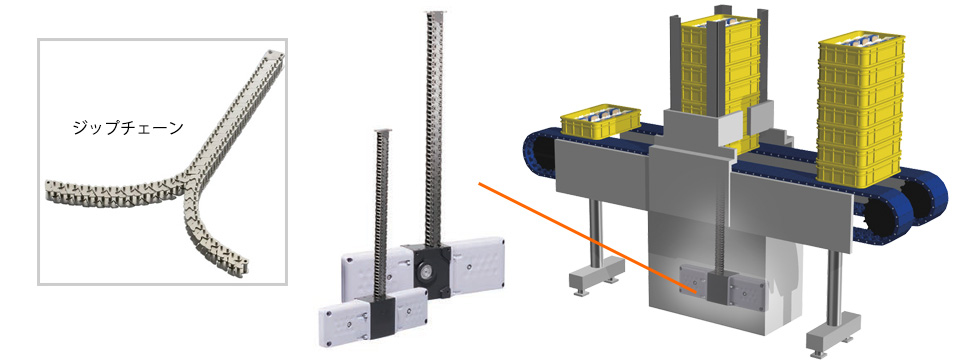

Zip Chain Actuator (ZCA)

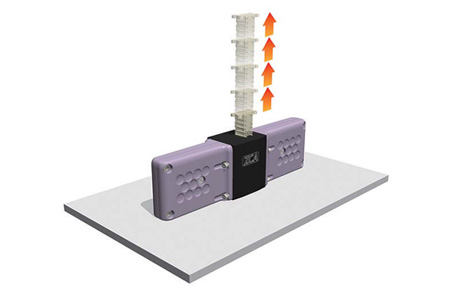

Zip Chain is a chain in which two chains interlock like a zipper to form a single, strong column, allowing for Long travel length "pushing and pulling" motions. The Tsubaki Zip Chain Actuator is a product that utilizes this type of chain for linear actuator.
Because the disengaged chain can be stored compactly, it saves significantly more space compared to conventional pneumatic and hydraulic cylinders.
With numerous features including high-speed and high-frequency operation, multi-point stopping capabilities, high stopping accuracy, and flexible mounting orientation, as well as environmental considerations, it is widely used in everything from small actuators to large lifters.

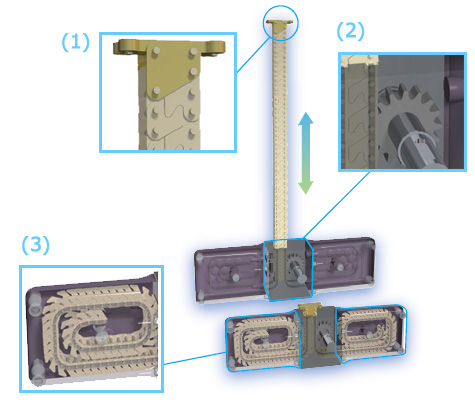

Structure of Zip Chain Actuator
- Chain End fitting:
It is integrated with the chain. It can be installed from either the top or bottom. - Drive unit:
Our unique pin gears with special tooth profiles mesh with the chain to ensure efficient power transmission. - Storage compartment:
Made of resin, it features smooth chain movement and compact storage.

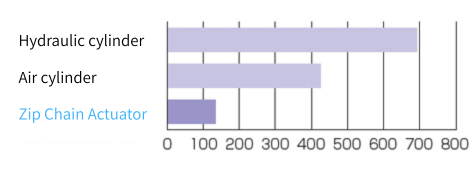

Annual CO2 emissions ratio:
Zip Chain Actuator: Air cylinder: Hydraulic cylinder = 1:3:5

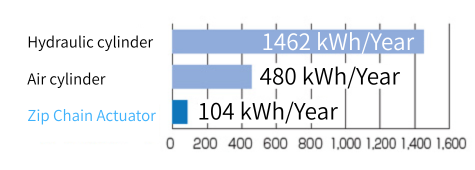

Annual power consumption ratio:
Zip Chain Actuator: Air cylinder: Hydraulic cylinder = 1:5:14
Multiple stopping points are possible.
Zip Chain Actuator multi-point stop video content
Learn more about Zip Chain Actuator
For questions about the product, please click here
Introducing the screw-and-nut type electric lifter "Lift Master"
Lift Master is a plug and play type directly from the ground.

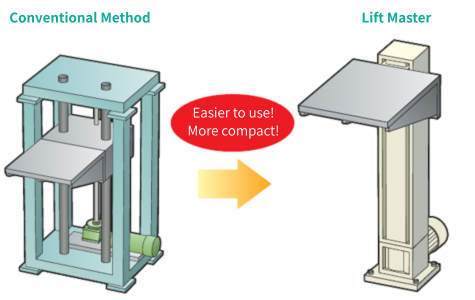

- Its compact design, with the screw and guide mechanism housed within the frame, makes installation easy. This results in a simpler, more space-saving equipment structure.
- The cantilever load tolerance allows for flexible layouts, making it suitable for various applications.
- Because it's electrically powered, there's no need to worry about oil leaks, making it ideal for bread-making equipment.
Lift Master video content
Bread making
Conveying process
Other related devices
In lines where lubrication of the chain is undesirable Lube-free conveyor chains are proving invaluable.
Tsubaki's products, including plastic Top chain demonstrate their true value in various conveying applications in bakeries, such as transporting food molds and metal trays, and using inclined conveyors.
Tsubaki's Miter Gear Box is used to drive the lifting mechanism for the bread-shaped tray shelves, and double pitch chain plays an active role inside the washing machine.
Conveying -Lambda Chain (Lube-free conveyor chain) -
In lines that handle fabric, applying oil to the chains is undesirable.
Tsubaki's Lambda Chain, Lube-free chain, can be used Lube-free thanks to special oil-impregnated bush. This ensures hygiene as no oil adheres to the product, and also provides a long service life. The lubricant used in special oil-impregnated bush is NSF H1 compliant, making it suitable for use in food processing machinery.

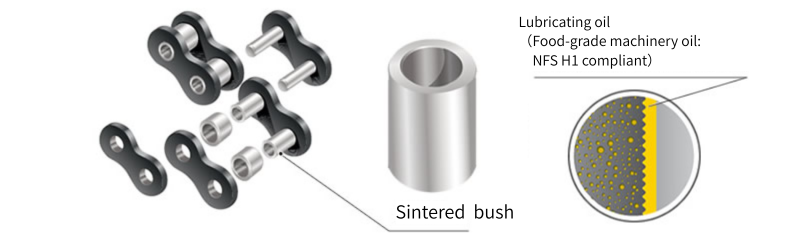

Lambda Chain basic structure
Lambda Chain KF Series
This product utilizes special oil-impregnated bush with NSF-H1 compliant lubricant that resists volatilization and degradation even in high-temperature environments (150° to 230°). It can be used in food processing machinery where wear in high-temperature environments is a concern.
Learn more about the features of KF SeriesLearn more about Lambda Chain
For questions about the product, please click here

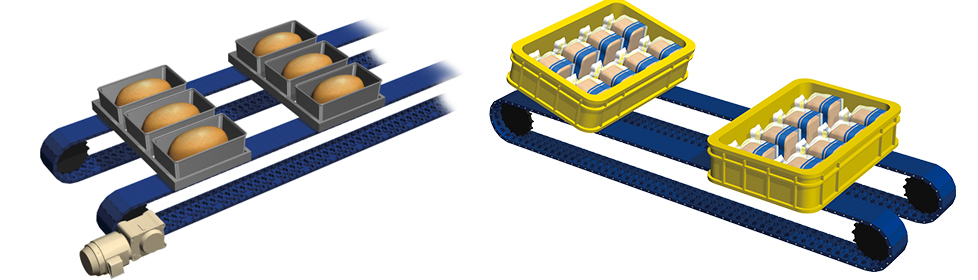

Tsubaki plastic Top chain are used in the conveying process for food containers and metal trays. Unlike metal chains, using plastic Top chain reduces the risk of foreign object contamination due to metal contact, thus ensuring food safety.

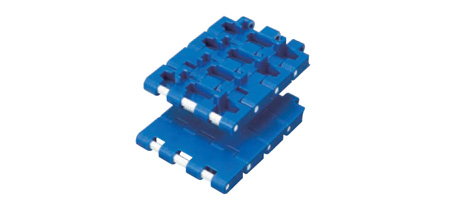

Plastic Top chain BTC8H-M type & TTUPS-H type

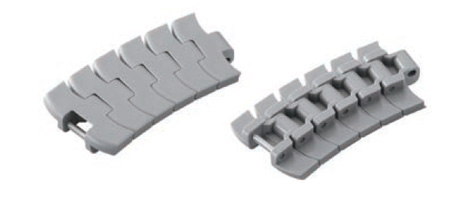

We offer two types of plastic Top chain for transport: BTC8H-M (for straight lines) and TTUPS-H (for curved lines). In recent years, thicker, more durable plastic chains have become common, making the BTC8H-M and TTUPS-H the most suitable choices. We also offer a lineup of special material specifications to suit various applications.
BTC8H-M type (straight line)
TTUPS-H type (for curves)
*Blue and gray are standard colors (both have anti-static properties).
Plastic Top chain material specifications
Wear-resistant specifications (LF series)
Ideal for places where accumulation occurs.
Shock-resistant (DIA)
Ideal for areas subject to impact.
Antibacterial and antifungal specifications (MWS)
It suppresses bacterial growth and ensures food safety.
Heat-resistant specifications (KV series)
Ideal for oven exits
Metal detection specifications (MPD, MPW)
Even if the plastic Top chain is damaged, it can be detected by the existing metal detector.
Note: Heat-resistant and metal-detection specifications are not available for the BTC8H and TTUPS84OH models. A different type of chain will be used instead.
Learn more about plastic Top chain
For questions about the product, please click here
In bread factories, metal trays are transported using inclined conveyors and in processes such as applying cooking oil. To ensure reliable transport under various transport conditions, the BTM8H-M model, which has magnets embedded in the plastic Top chain, is used.

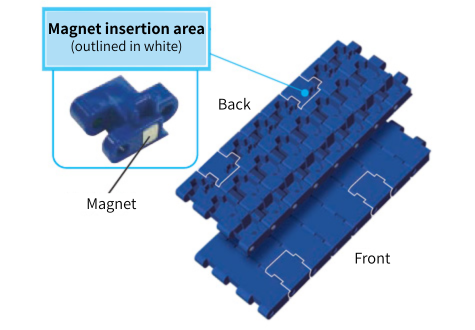

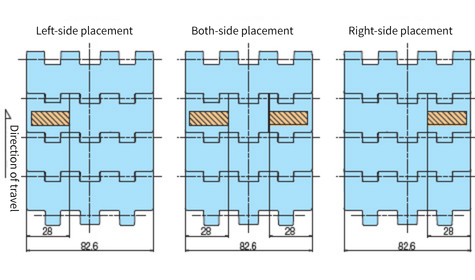

BTM8H-M type (magnetic type)
Since the magnets can be positioned freely, they can be arranged to suit the mold size, tilt angle, and other factors.
Magnetic type suitable for inclined conveying.

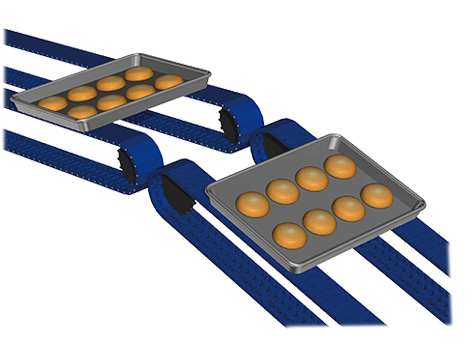

Inclined conveyance
Inclined conveyance
In food-type inclined conveying, magnetic rails were ineffective due to insufficient magnetic force, and steel chains presented metal contact problems. The BTM8H-M model solves these problems.
Oil application conveyor
In the process of applying edible oils such as butter to trays and products, oil can get on the chain, potentially causing the trays to slip and leading to transport problems. Therefore, the BTM8H-M model with magnets is used and plays an important role in ensuring reliable transport.
Click here for product details on the BTM8H-M model.
For questions about the product, please click here

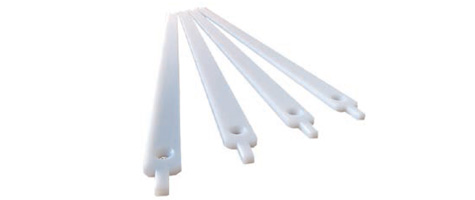

Tsubaki Plastic rail
The wearstrip and guide channel use Tsubaki Plastic rail, which complies with the Food Sanitation Act, contributing to food safety.
Hypoid Motor for food transport
To ensure food safety even during the cooling process of the bread after baking, a food-grade Hypoid Motor with food-grade grease, a finless design, and antibacterial coating is used for food transport.
Learn more about Plastic rail
Learn more about Hypoid Motor
Introducing the power monitoring control device "Shock Monitor"

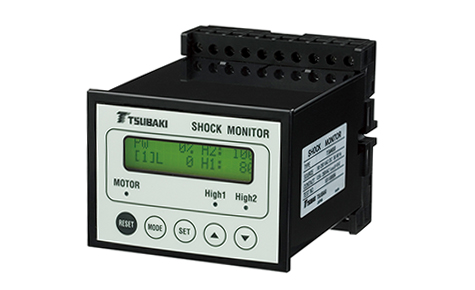

Shock Monitor is Electrical control device that outputs a relay signal when a set load level is reached.
- Power monitoring enables overload detection even on low-speed conveyors with Double reduction.
- The relay output settings can be automatically changed in response to changes in the transported weight.
- We can also manufacture custom-shaped products, such as those with high sensitivity specifications.
Lifting Lifter - Gear Reducer Miter Gear Box

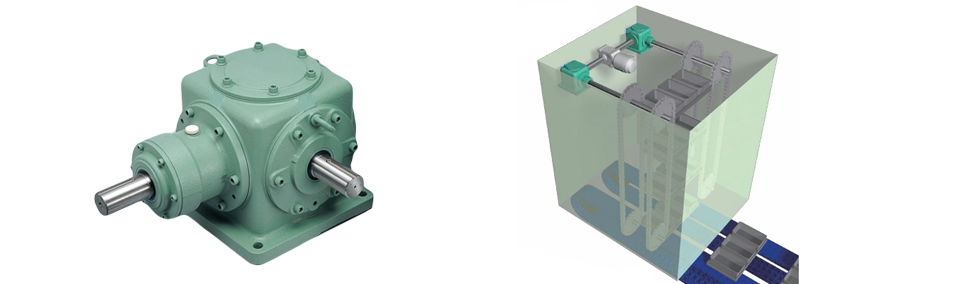

Tsubaki's Miter Gear Box is a high-performance, high-efficiency, general-purpose, right-angle shaft type spiral bevel gearbox.
double pitch chain are used to raise and lower the tray shelves, and a wide variety of Miter Gear Box are used to drive them.
Learn more about Miter Gear Box
For questions about the product, please click here

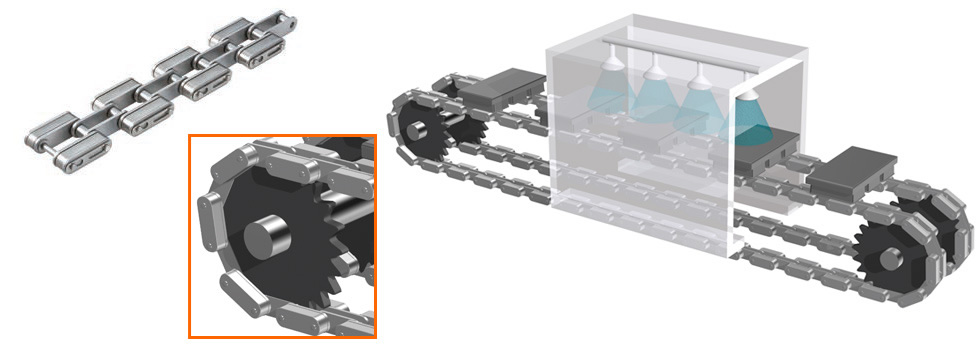

Washing machine - with double pitch chain magnet -
Magnetic chains are used inside the washing machine to withstand water pressure. Seamless stainless steel covers protect the magnets and prevent foreign matter from entering due to breakage.
double pitch chain with magnet
For questions about the product, please click here
