The drum rotation mechanism solves the problem of crushed powder clogging the mechanism.
Pin gear drive Unit
overview
Pin gear drive unit is used in the mechanism that sifts the crushed materials before they are fed into the screw conveyor for sorting.
Problem
Gear or chain drives tend to clog with the crushed powder produced by the crushed materials.
Adopted products
Pin gear drive Unit
This is a gear rack with rollers that transmits power through the meshing of pin gears and pins (rollers).
It has the same function as a gear or rack and pinion, and is a transmission part that converts rotation into linear motion or rotation into another type of rotational motion by combining a pin-mechanical wheel and rack with a special gear.
Benefits of adopting the product
Pin gear drive unit has a simple structure in which the pin wheel is made up of three parts: a frame, a hollow bushing, and a roller. In addition, the pin gear meshes roughly and the pin wheel has a hollow structure, so crushed powder does not get stuck, allowing for stable operation of the equipment.
Tsubaki will do its utmost to support you in solving any problems you may have.
Please feel free to contact us with any concerns you may have.
Click here for details on the adopted products
Click here for consultation
Solution Case Study in the same industry
-

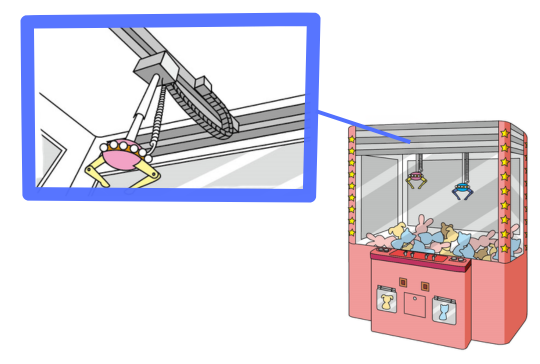

Protecting the cables of crane games and reducing the risk of sudden stoppages
ProblemMaintenance, disconnectionIndustryothersPurposeSupport and guideproductCable Carrier (CABLEVEYOR) -
The pallet lifting device eliminates hydraulic pressure and significantly reduces design and assembly man-hours.
ProblemHigh speed, high frequency, de-airing hydraulicIndustryothersPurposeMove linearlyproductLinear Actuator -
Eliminate oil leaks and the risk of workplace accidents by removing hydraulic pressure from cable durability testing machines
ProblemHigh speed, high frequency, de-airing hydraulicIndustryothersPurposeMove linearlyproductLinear Actuator -

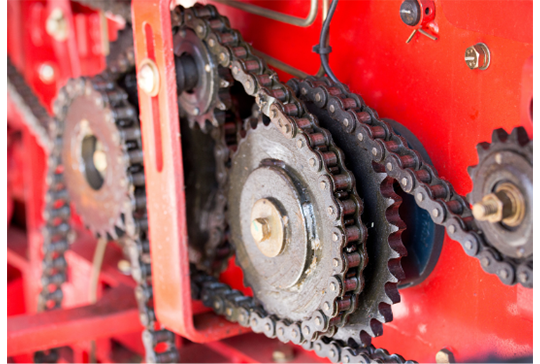

The outdoor transmission section uses an environment-resistant Drive chain, achieving both rust resistance and high strength.
ProblemMaintenance, lifespanIndustryothersPurposeTransmit powerproductDrive chain -
Waterproof and corrosion-resistant electric cylinders ensure stable operation even in wet environments
ProblemDeaeration hydraulics, corrosionIndustryothersPurposeMove linearlyproductLinear Actuator -

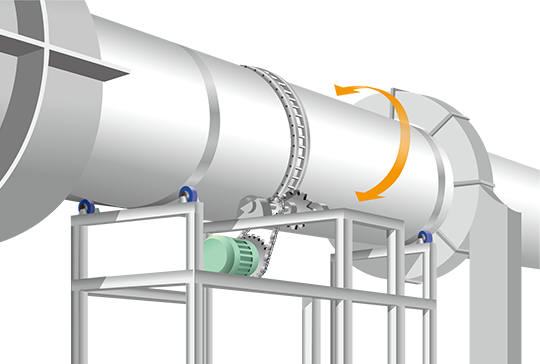

Resolves tooth skipping and gear damage in kiln chain rotation mechanisms
ProblemSlippingIndustryothersPurposeRotate and decelerateproductPin gear drive -
Solves the problem of slippage inherent in tire-friction-driven drum rotation
ProblemSlippingIndustryothersPurposeRotate and decelerateproductPin gear drive -
Successfully improved tilt of the lift table by using a cantilever and reduced maintenance
ProblemmaintenanceIndustryothersPurposeMove linearlyproductLinear Actuator
Solution Case Study for the same problem
-
Prevents flat cables from jumping up during high-speed, Long travel length operation
ProblemWear debris, dust, etc.IndustryLCD, semiconductor, electronic equipment, communicationsPurposeSupport and guideproductCable Carrier (CABLEVEYOR) -
Replacing jig-attached chains in overseas-made equipment reduces costs and man-hours
ProblemothersIndustryPaper, cement, woodworkingPurposeTransportproductSmall size conveyor chain -
Electric cylinders are used to raise and lower the containers of the agitator in the secondary battery line
ProblemothersIndustrybatteryPurposeMove linearlyproductLinear Actuator -
Durability is improved by replacing belt conveyors with slat conveyors
ProblemothersIndustryTransport machineryPurposeTransportproductSmall size conveyor chain -
Significantly reduces the design man-hours required for transport using multiple conveyors
ProblemothersIndustryFood/BeveragePurposeTransportproductPlastic modular chain -

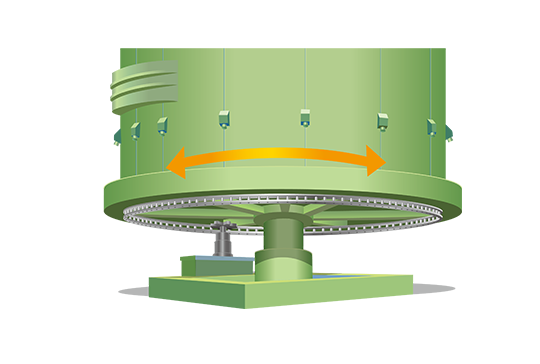

Contributes to stable drive and low maintenance of the turntable rotation mechanism
