medical devices
Products for lifting and lowering functions
"Tsubaki" offers a wide range of products for the lifting functions of medical devices, leveraging its technology cultivated through a proven track record and experience. We meet the functional and quality requirements of medical devices, contributing to the realization of reliable equipment.

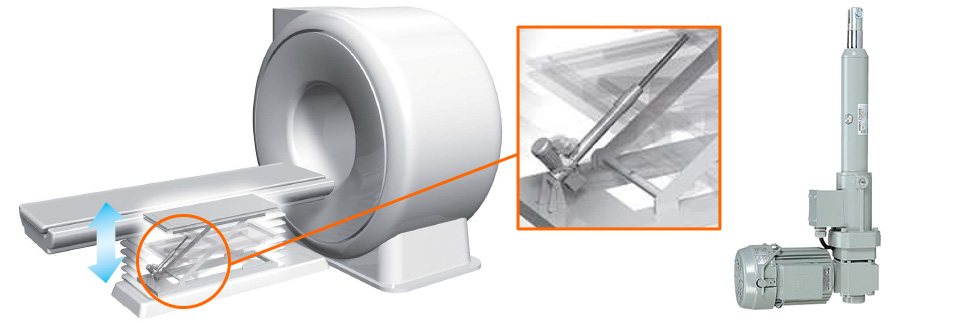

MRI (Magnetic Resonance Imaging) -linear actuator (Power Cylinder) -
Power Cylinder is a device that holds a load through a mechanical brake and the self-locking properties of a worm gear.
The use of Power Cylinder saves space.
Furthermore, the inclusion of a worm gear contributes to improved safety and quietness through self-locking.
- Self-locking
- Quiet
More details about Power Cylinder
For questions about the product, please click here

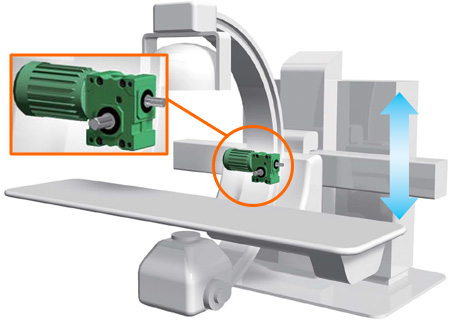

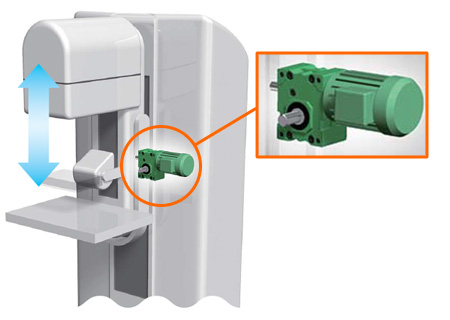

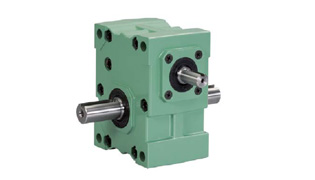

Mammography/X-ray imaging equipment - Worm gear reducer (Worm Power Drive) -
The adoption of a worm gear reducer ensures safety through self-locking and quiet operation, allowing the device to move smoothly.
- Self-locking
- Quiet
Mammography
X-ray imaging device
Learn more about Worm Power Drive
For questions about the product, please click here

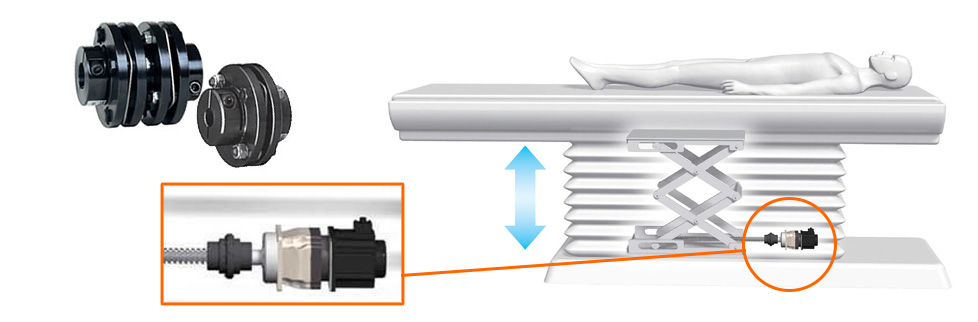

CT (Computed Tomography) -ECHT-FLEX Coupling NEF Series -
ECHT-FLEX NEF series couplings are lubrication-free flexible couplings with high torsional rigidity.
Because it has no backlash, it is ideal for positioning during bed raising and lowering. Furthermore, its disc-type design allows it to absorb angular misalignment, parallel eccentricity, and axial displacement, making it an easy coupling to install in equipment.
- Non-backlash
Learn more about ECHT-FLEX NEF series
For questions about the product, please click here
Other Tsubaki products for lifting and lowering functions
Zip Chain Lifter
??spr_pgd_unit_ja_JP??
Lift Master
Cable Carrier (CABLEVEYOR)
medical devices
Products for transport functions
"Tsubaki" offers a wide range of products for medical device transport functions, leveraging its technology cultivated through a proven track record and experience. It meets the functional and quality requirements of medical devices, contributing to the realization of reliable equipment.

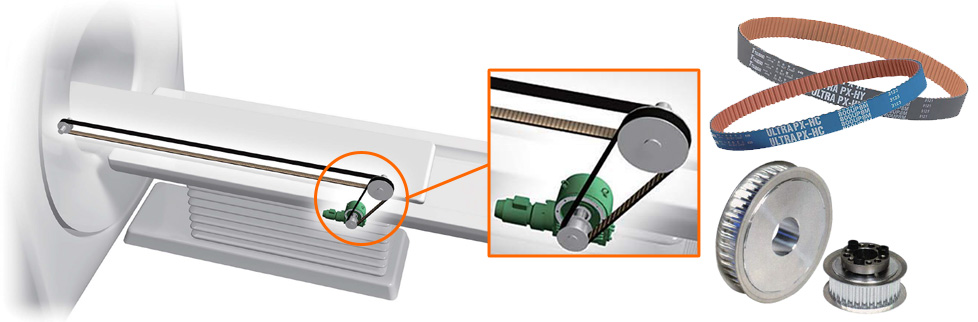

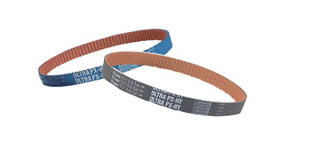

CT (Computed Tomography) -Synchronous Belts / Belt Sprockets-
The use of Open-ended belt allows for the transfer of the bed even over long strokes. Compared to chains, it enables quieter and cleaner operation.

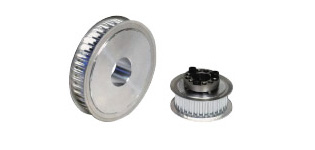

We also offer a lineup of pulleys ideal for Synchronous Belts. By meshing with the belt, they transmit rotation without slippage.
- clean
- Low noise
Learn more about Synchronous Belts
Learn more about Belt Sprockets

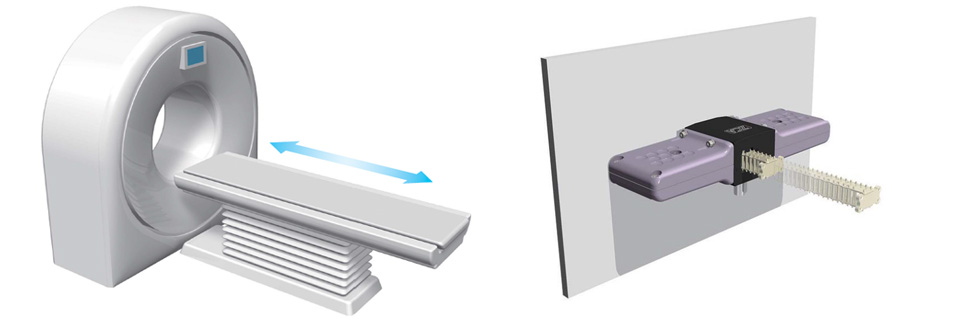

CT (Computed Tomography) -Zip Chain Actuator (horizontal use) -
Compared to various linear actuator, it can be installed in a smaller space.
Zip Chain is a unique chain developed by our company, in which two chains interlock like a zipper to form a single, strong column that allows for both pushing and pulling.
The Tsubaki Zip Chain Actuator is a product that utilizes this chain to create linear actuator.
Because it can be mounted in any direction, it can also be used on rotating objects.
- clean
- Low noise

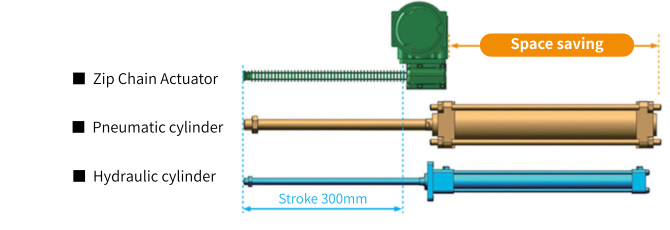

Stroke comparison
Zip Chain Actuator allows Zip Chain to be compactly stored within the main body, resulting in a size that is 1/4 to 1/5 the size of conventional linear actuator.
Learn more about Zip Chain Actuator
For questions about the product, please click here

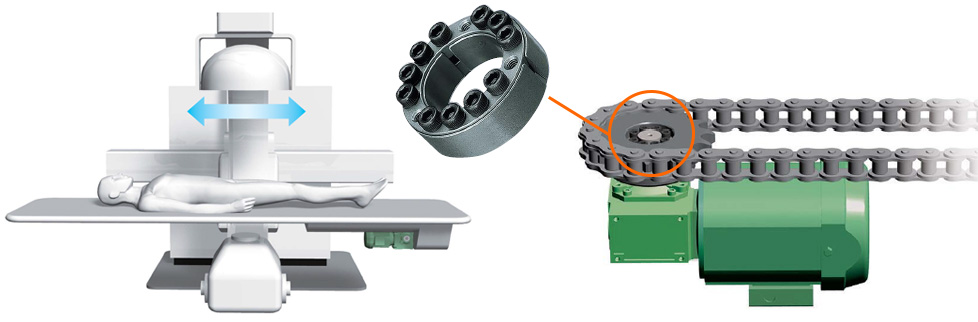

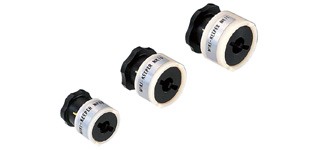

X-ray imaging equipment -Power-Lock-
The adoption of Power-Lock allows for safe transport without compromising the performance of the bed.
Because there is no backlash, unlike keyway fastening, no play occurs even when operating in forward or reverse directions.
- Quality maintenance
Learn more about Power-Lock
For questions about the product, please click here

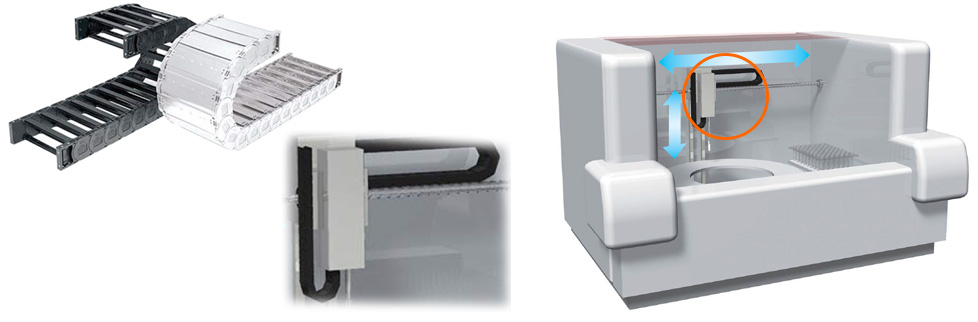

Sample device -Cable Carrier (CABLEVEYOR)-
Tsubaki Cable Carrier (CABLEVEYOR) offer a lineup of low-noise and low-dust generation types.
It operates quietly, maintains a clean environment, and smoothly moves the bed. A white finish is also available upon request.
- Quiet
More about Cable Carrier (CABLEVEYOR)
For questions about the product, please click here

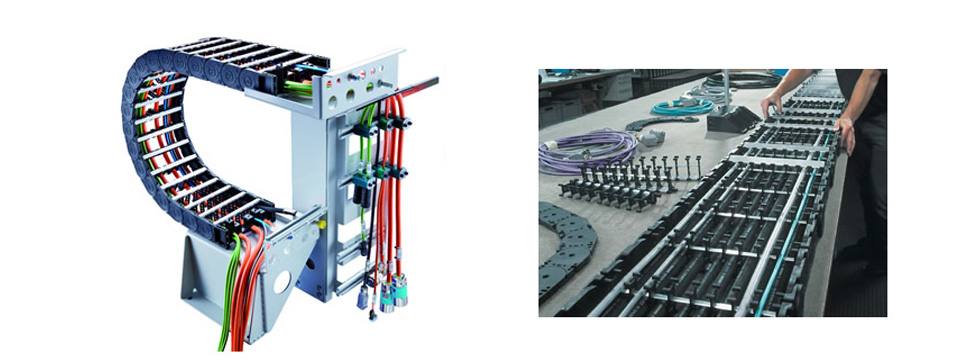

TOTALTRAX
TOTALTRAX is a service that delivers Cable Carrier (CABLEVEYOR) and cables/hoses as a set.
We deliver pre-terminated cables and hoses mounted on Cable Carrier (CABLEVEYOR), enabling quick installation into machinery and equipment after receiving them. Furthermore, centralizing your supply chain reduces ordering time and effort.
medical devices
PCs for tilting functions
"Tsubaki" offers a wide range of products for tilting functions in medical devices, leveraging its technology cultivated through a proven track record and experience. It meets the functional and quality requirements of medical devices, contributing to the realization of reliable equipment.

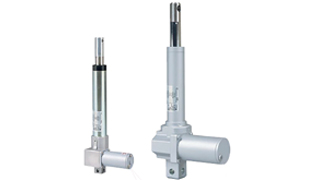

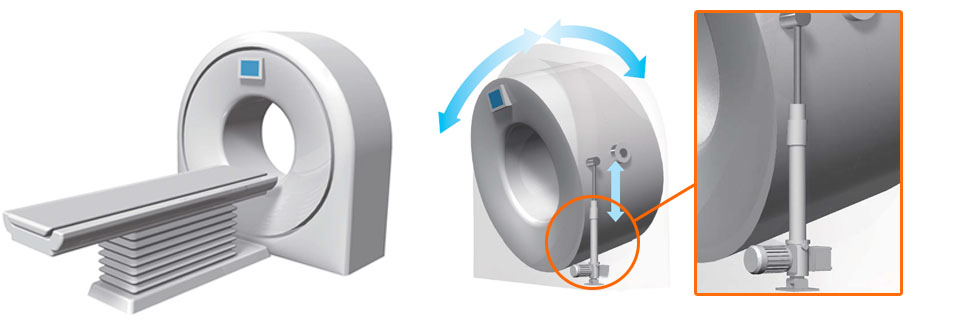

CT (Computed Tomography) / MRI (Magnetic Resonance Imaging) -Power Cylinder-
Power Cylinder are used to tilt the gantry for image processing of areas that are difficult to photograph.
Power Cylinder employs a worm gear, achieving both safety through self-locking and quiet operation.
- Self-locking
- Quiet
More details about Power Cylinder
For product inquiries, please contact us here.
medical devices
Products for suspension functions
"Tsubaki" offers a wide range of products for medical device suspension functions, leveraging its technology cultivated through a proven track record and experience. It meets the functional and quality requirements of medical devices, contributing to the realization of reliable equipment.

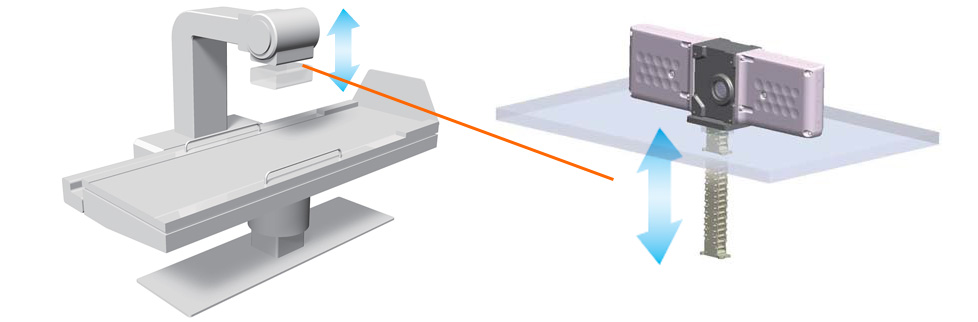

X-ray imaging equipment -Zip Chain Actuator (for suspended use) -
Compared to various linear actuator, it can be installed in a smaller space.
Because Zip Chain Actuator can be mounted in any direction, it can also be used by installing it on a rotating body.
- Compact

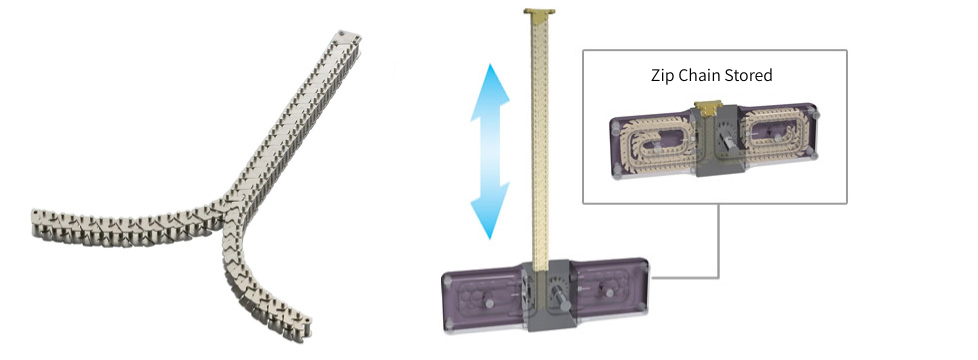

What is Zip Chain?
This chain consists of two chains that interlock like a zipper, forming a single, strong column that allows for Long travel length "pushing and pulling" motions. Zip Chain Actuator is linear actuator using this chain that has been commercialized by Tsubaki.
Learn more about Zip Chain Actuator
For questions about the product, please click here
medical devices
Products for swivel functions
"Tsubaki" offers a wide range of products for the rotation function of medical devices, leveraging its technology cultivated through a proven track record and experience. We meet the functional and quality requirements of medical devices, contributing to the realization of reliable equipment.

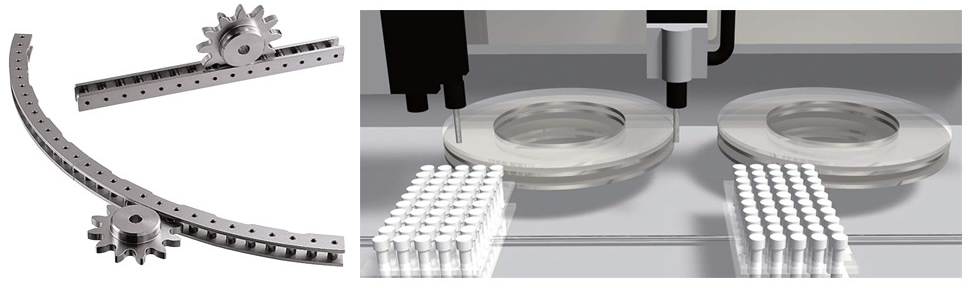

Sample device -Pin gear drive unit-
Because Zip Chain Actuator can be mounted in any direction, it can also be used by installing it on a rotating body.
- Compact

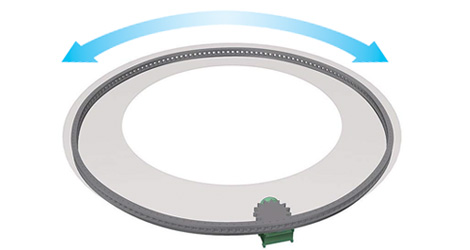

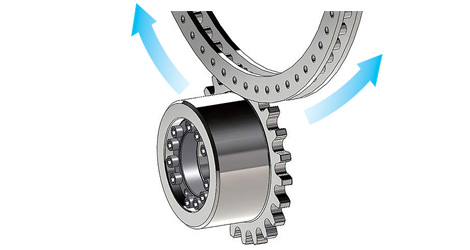

Pin gear drive unit layout example
By placing the gears on the inside, the sample device can be designed to be more compact.
Pin gear drive unit layout example
It's possible to position the gears not only on the inside, but also on the outside.
More information about Pin gear drive unit
For questions about the product, please click here

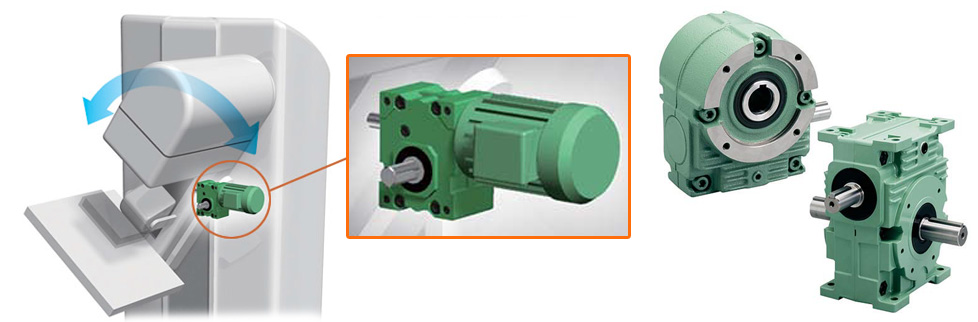

Mammography - Worm gear reducer (Worm Power Drive) -
Mammography machines utilize worm gear reducers in their rotation, compression, and lifting mechanisms. The self-locking mechanism ensures safety and quiet operation, allowing for a comfortable and worry-free examination.
- Self-locking
- Quiet
Learn more about Worm Power Drive
For questions about the product, please click here

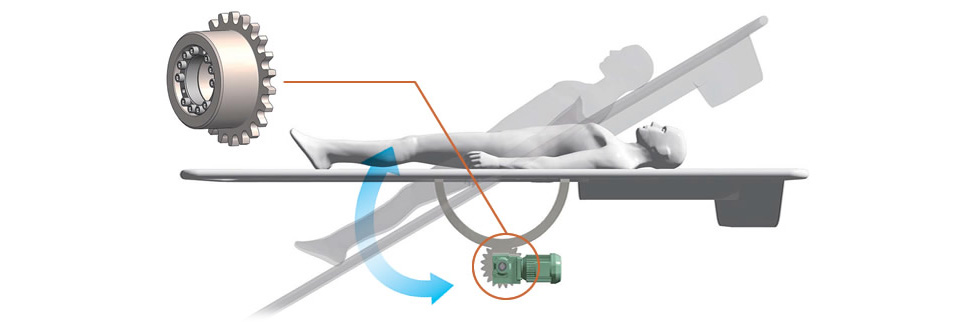

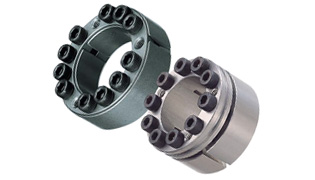

X-ray imaging equipment -Power-Lock-
The adoption of Power-Lock eliminates backlash.
Unlike keyways, this design prevents play during forward and reverse operation, allowing for safe rotation without compromising the performance of the bed.
- Self-locking
- Quiet
Learn more about Power-Lock
For questions about the product, please click here
Other Tsubaki products for swivel functions
Synchronous Belts
Belt Sprockets
Mini Keeper
