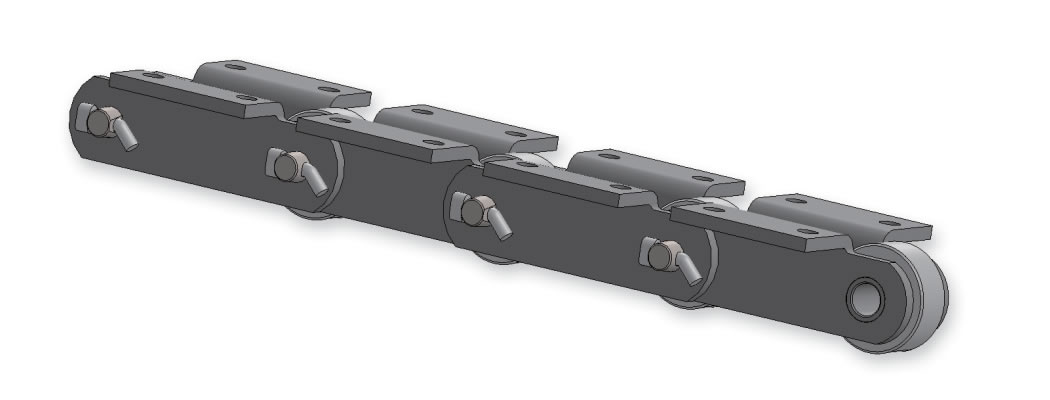

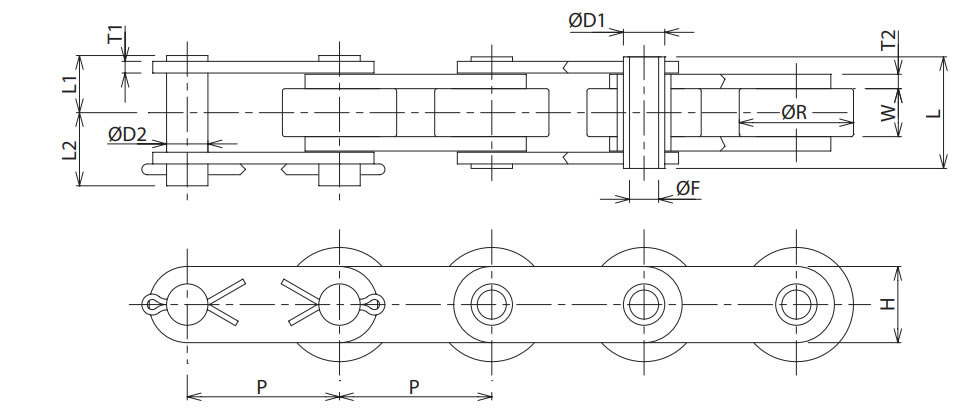

Sugarcane harvester

Our cane harvester chains are manufactured at ISO-certified manufacturing facilities based on Tsubakimoto's own rigorous design and quality standards.

All components are shot-peened, and static preload is applied to the entire chain to enhance wear resistance.
This ensures excellent abrasion resistance and long service life, even in the harsh working environment of sugarcane fields, which are characterized by a large amount of soil and fiber waste and significant load fluctuations.

Units (top row): mm
Units (bottom row): inches
Chain No. P R W T1 T2 H D1 D2 F L L1 L2
RF264HP 50.8
2.00		 38.1
1.50		 16
0.63		 3.9
0.15		 4.8
0.19		 25.4
1.00		 13.8
0.54		 13.8
0.54		 9.7
0.38		 37.2
1.46		 19.05
0.75		 24.4
0.96

For product inquiries, please contact us here

Contact form

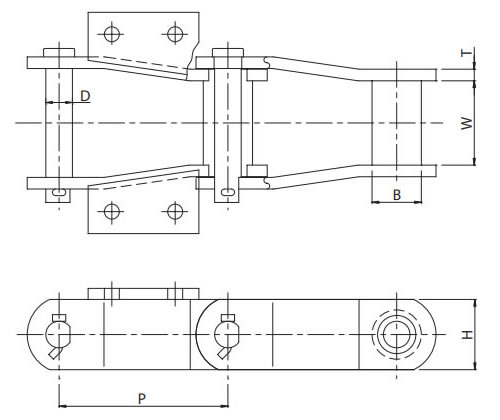

Mud conveyor chain

Our company offers a wide range of mud conveyor chains designed for use in humid environments.
To enhance corrosion resistance and wear resistance, we offer models with stainless steel pins and bushings, among other specifications designed to withstand harsh conditions.
Furthermore, additional sizes and other series can be provided on a case-by-case basis depending on the application and equipment requirements.

Units (top row): mm
Units (bottom row): inches
Chain No. P B W T H D
BOP152.4 152.4
6.00		 31.75
1.25		 61.9
2.44		 9.7
0.38		 38.1
1.50		 19.5
0.77

For product inquiries, please contact us here

Contact form

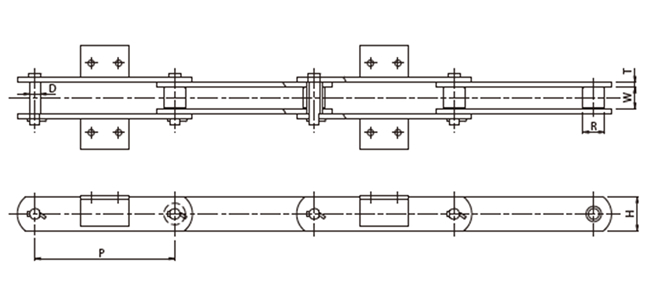

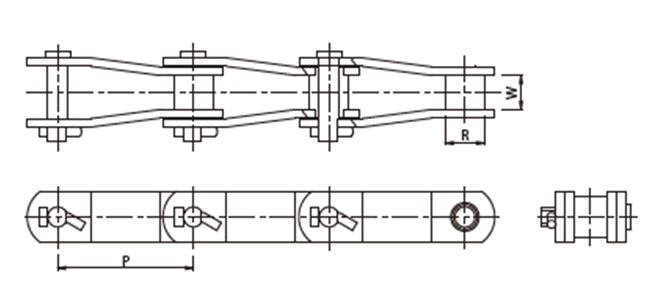

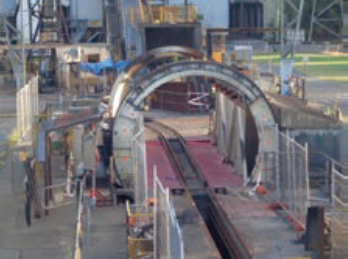

Sugarcane transport machine

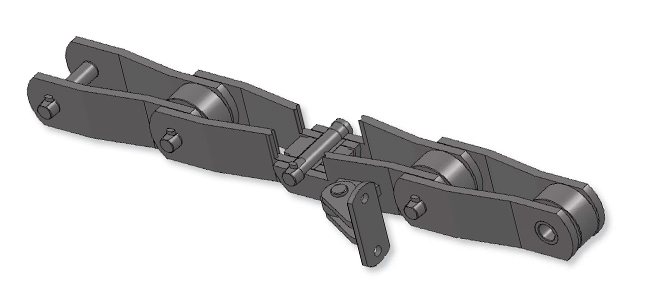

Cane carrier chain

Cane carrier chains are used under particularly harsh conditions within sugar factories.
Tsubakimoto Chain offers a wide range of cane carrier chains with excellent durability and wear resistance.
We select the optimal materials and perform heat treatment according to the application conditions, providing specifications that reliably meet on-site requirements.

Units (top row): mm
Units (bottom row): inches
Chain No. P R W
RF205 78.11
3.075		 31.8
1.25		 37.1
1.46
RF2188 101.6
4.00		 44.45
1.75		 31.6
1.24
RF0904 101.6
4.00		 50.8
4.00		 29.4
1.16
RF1113 102.6
4.039		 50.8
4.00		 31.6
1.24
RF2124 152.4
6.00		 69.9
2.75		 37.1
1.46
RF0906 152.4
6.00		 69.9
2.75		 37.1
1.46
RF09060 152.4
6.00		 69.9
2.75		 37.1
1.46
RF09061 152.4
6.00		 69.9
2.75		 37.1
1.46
RF2178A 152.4
6.00		 69.9
2.75		 38.1
1.5
RF2198A 152.4
6.00		 69.9
2.75		 38.1
1.5
RF09063 152.4
6.00		 76.2
3.00		 36.5
1.44
RF2315 228.6
9.00		 76.2
3.00		 43
1.69
RF2129 228.6
9.00		 82.5
3.25		 37.1
1.46
attachment

For product inquiries, please contact us here

Contact form

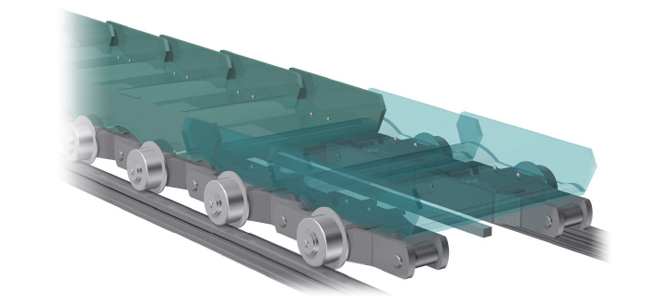

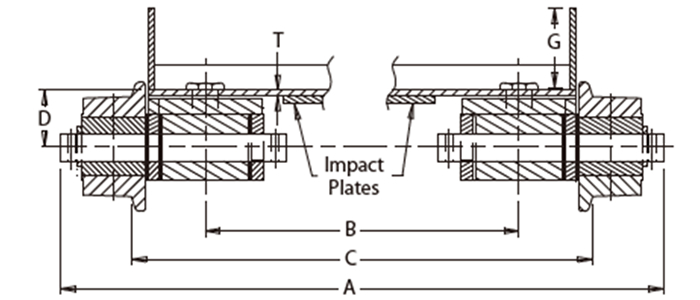

Bagasse Carrier

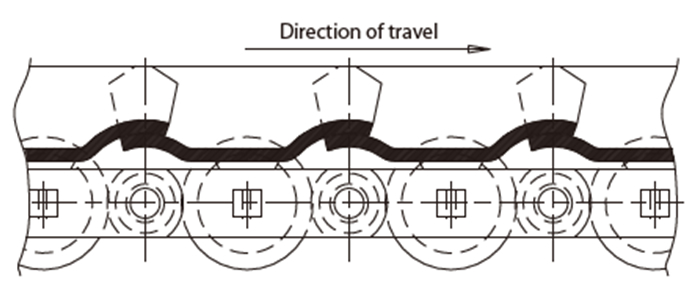

Bagasse carrier chain with outboard roller

Its unique outer roller structure streamlines maintenance work. The bearing surface is designed to stably maintain a thin lubricating film, contributing to the extended lifespan of the entire system.

Furthermore, by optimizing the roller arrangement, it is possible to replace only the damaged roller without disassembling the entire system.
This reduces unnecessary and costly downtime.

Units (top row): mm
Units (bottom row): inches
Style Chain No. Pitch Width Centerline Chain to Top of Pan Bead Base Dimension Pan Thick. Max. Work Load kg (Lbs.) Weights/Lbs.
Overall Center to Center Sprocket Track Gauge Conveyor Wt. Per Meter (Ft.) 457.20mm (18") Pan Approx. Wt. Each 25.40mm (1") Added to Height Wt. Added Each 152.40mm (6") of Width
A B C D G T
Style A OBR Aprons 961R 228.6
9.00		 712.72
28.06		 374.65
14.75		 573.02
22.56		 73.15
2.88		 101.6
4.00		 6.35
0.25		 8,164.75
18,000		 52.3
115.2		 1.3
2.9		 3.8
8.3
2397R 304.8
12.00		 692.15
27.25		 385.83
15.19		 553.97
21.81		 95.25
3.75		 101.6
4.00		 6.35
0.25		 8,346.19
18,400		 42.0
92.5		 1.2
2.6		 3.4
7.5
1706R 304.8
12.00		 712.72
28.06		 374.65
14.75		 573.02
22.56		 95.25
3.75		 101.6
4.00		 6.35
0.25		 12,700.72
28,000		 49.3
108.7		 1.2
2.6		 3.4
7.5
2614R 304.8
12.00		 703.33
27.69		 360.43
14.19		 560.32
22.06		 107.95
4.25		 101.6
4.00		 6.35
0.25		 15,875.90
35,000		 71.3
157.1		 1.2
2.6		 3.4
7.5
2614R 304.8
12.00		 703.33
27.69		 360.43
14.19		 560.32
22.06		 111.25
4.38		 101.6
4.00		 9.652
0.38		 15,875.90
35,000		 78.2
172.4		 1.8
4.0		 5.1
11.3

For product inquiries, please contact us here.
*This will open the US TSUBAKI POWER TRANSMISSION, LLC website.

Contact form

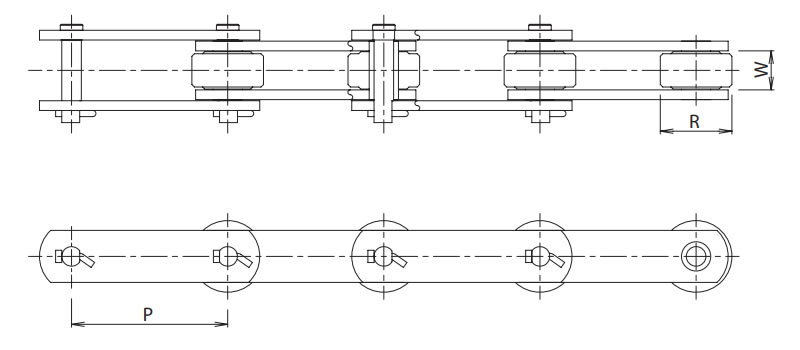

Intermediate bagasse carrier chain

For intermediate and bagasse carrier chains, achieving both corrosion resistance and wear resistance is essential.
Tsubaki's intermediate carrier chains/bagasse carrier chains reliably meet these requirements while also exhibiting superior durability.

Units (top row): mm
Units (bottom row): inches
Chain No. P R W
RO1112 93.7
3.688		 44.45
1.75		 27.6
1.09
RO1124 101.6
4.00		 50.8
2.00		 32.3
1.27
RO1125 101.6
4.00		 50.8
2.00		 32.6
1.28
RO0904 101.6
4.00		 50.8
2.00		 29.4
1.16
RO1113 102.6
4.04		 50.8
2.00		 37.5
1.48
RO1130 152.4
6.00		 63.5
2.50		 37.6
1.48
RO2184 152.4
6.00		 76.2
3.00		 34.9
1.37
RO2184A 152.4
6.00		 76.2
3.00		 34.9
1.37
RO0906 152.4
6.00		 69.9
2.75		 37.1
1.46
RO09060 152.4
6.00		 69.9
2.75		 37.1
1.46
RO09061 152.4
6.00		 69.9
2.75		 37.1
1.46
RO2178A 152.4
6.00		 69.9
2.75		 38.1
1.5
RO203.2 203.2
8.00		 89
3.50		 46.1
1.81
RO228.6 228.6
9.00		 89
3.50		 46.1
1.81
RO228.6 228.6
9.00		 99
3.90		 47
1.85
RO228.6 228.6
9.00		 99
3.90		 48
1.89
attachment

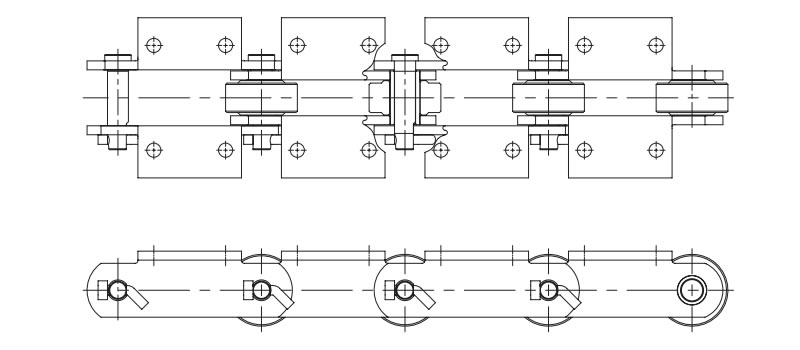

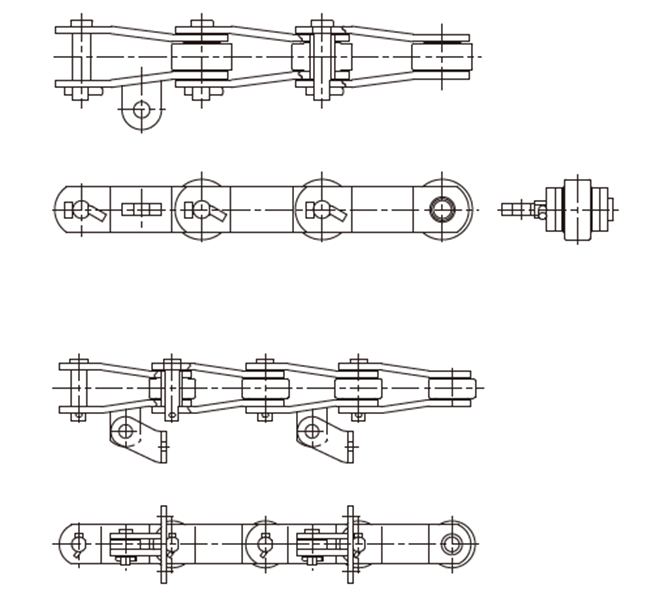

BO/BOP Type Chain
attachment
Units (top row): mm
Units (bottom row): inches
Chain No. P R W
B009060 152.4
6.00		 35
1.38		 37.1
1.46
B02184A 152.4
6.00		 42
1.65		 34.9
1.37
BOP160 160
6.30		 48
1.89		 56
2.20
Units (top row): mm
Units (bottom row): inches
Chain No. P R W
BOP160A 160
6.30		 48
1.89		 56
2.20
BOP200 200
7.87		 48
1.89		 56
2.20
BOP200A 200
7.87		 48
1.89		 56
2.20

For product inquiries, please contact us here

Contact form

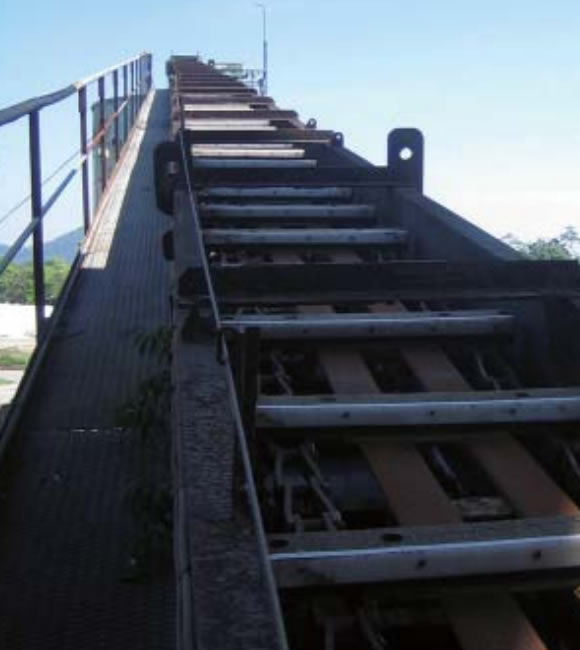

Sugarcane elevator

Elevator chain

ANSI standard bushed chain are specifically designed for elevator and conveyor applications, offering high performance and durability.
These high-strength chains are compatible with cast iron combination chain sprockets.

Large size conveyor chain BT Series

It has approximately twice Maximum allowable load compared to CT Series.
Maximum allowable load of Large size conveyor chain CT Series has been increased (by approximately double).
We offer both metric and inch-pitch systems, and a variety of attachments are available.

Learn more about BT Series Large size conveyor chain

Go to product details page

For product inquiries, please contact us here

Contact form

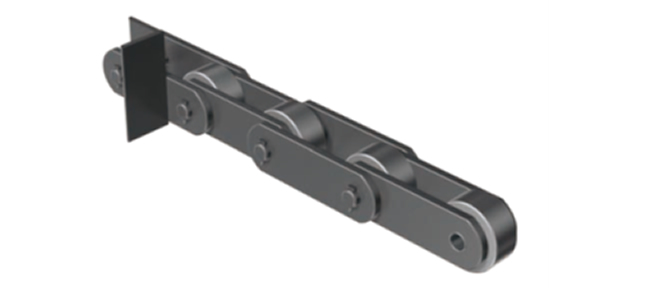

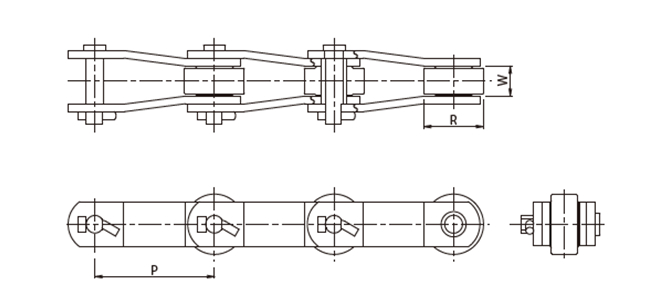

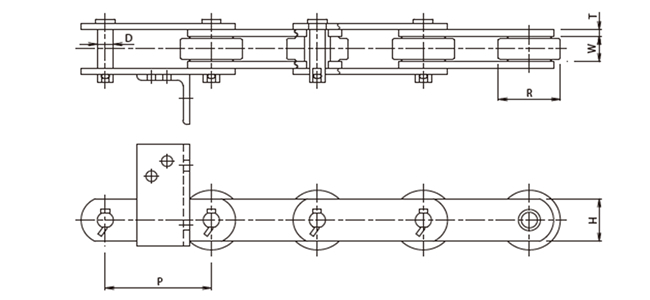

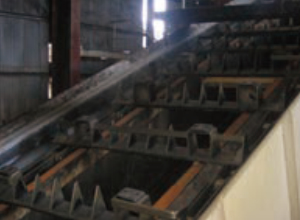

Intermediate carrier

Intermediate carrier chain

RF conveyor type

The RF series intermediate carrier chains are manufactured using carefully selected materials.
The pins and bushings are made of a special stainless steel developed for bagasse reclaimer applications, providing enhanced corrosion and wear resistance.

Additionally, molybdenum disulfide (MoS₂) grease is applied to the pins and bushings during assembly.
Since this chain does not typically require additional lubrication during operation, this MoS2 grease is baked on to ensure supplementary lubrication.
Depending on your application and equipment requirements, we can also provide additional sizes and other series as needed.

Units (top row): mm
Units (bottom row): inches
Chain No. P R W T H D
RFP457.2S 457.2
18.00		 70
2.76		 70
2.76		 16
0.63		 110
4.33		 35
1.38

For product inquiries, please contact us here

Contact form

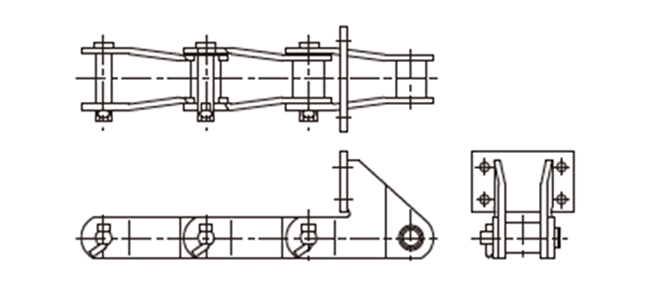

Bagasse Reclaimer

Bagasses Claimer Chain

The bagasse creamer is a piece of equipment that supports the entire sugar production process and is one of the most important applications in the chain.
Tsubakimoto Chain has developed and adopted stainless steel materials that combine high levels of corrosion resistance, strength, and wear resistance through extensive market research and on-site field testing.
In addition to this proprietary stainless steel, the pins undergo full-section hardening and induction hardening to maximize wear life.

Furthermore, assuming that no lubrication is performed during operation, molybdenum disulfide (MoS2) grease is applied to the pins and bushings during assembly, and some parts are treated with a baking process.
Furthermore, the attachments are mounted to the chain using robotic welding, ensuring deep and high-strength welds.

Units (top row): mm
Units (bottom row): inches
Chain No. P R W T H D
RFP152.4R-6LF2 152.4
6.00		 88.9
3.50		 31.8
1.25		 9.5
0.37		 63.5
2.50		 23.2
0.91
RFP152.4R-6LF2-H 152.4
6.00		 88.9
3.50		 31.8
1.25		 9.5
0.37		 63.5
2.50		 31.8
1.25

For product inquiries, please contact us here

Contact form

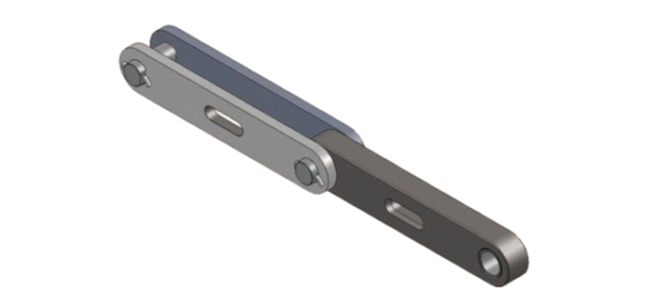

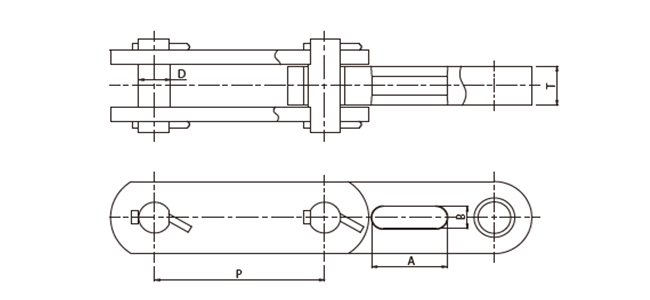

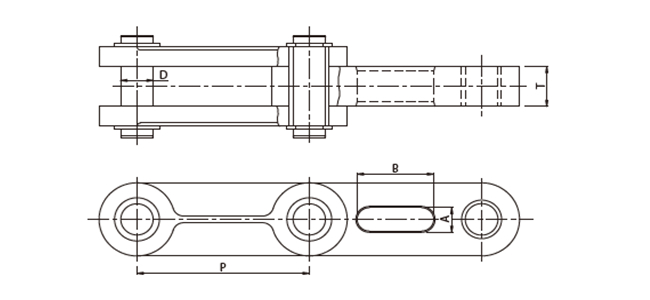

Diffuser system

Diffuser Chain

Similar to bagasse carrier chains and elevator chains, Tsubakimoto's diffuser chains utilize a proprietary stainless steel material developed by Tsubakimoto that combines wear resistance, corrosion resistance, and durability.
This product is used in sugar factories around the world.

Type 1

Type 2

Units (top row): mm
Units (bottom row): inches
Chain No. Type P D T A B
NEF250 1,2 250
9.84		 47
1.85		 60
2.36		 111
4.37		 35
1.38
NEF500 2 500
19.685		 49
1.93		 60
2.36		 135
5.31		 35
1.38

For product inquiries, please contact us here

Contact form

Other equipment

Adjusting the position of sugarcane boxes

Power Cylinder offer a wide range of options, including limit switches, rotary encoders, and potentiometers, to meet positioning requirements.
Depending on your application and equipment requirements, we can also provide additional sizes and other series as needed.

More details about Power Cylinder
