What is Pin gear drive unit?^​​

This is a transmission part that has the same function as a gear or rack and pinion, and converts rotation into linear motion or rotation into another type of rotational motion by combining a pin-mechanical wheel rack with a dedicated gear. It has been delivered to a variety of devices.

Features

• - Uses a segment system, making installation easy
• The pin gear is designed with a generous module, and the excellent balance with the pin wheel/pin rack allows for large transmission torque.
• ・Wide variety to suit your needs

Product Info shows the standard dimensions. We can also consider other dimensions, so please let us know your requirements.

Pin gear drive unit Structure^​​

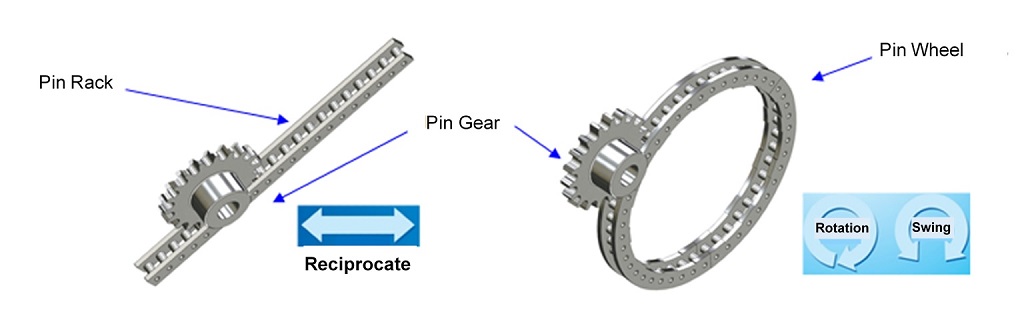

The unit consists of a pin rack or pin wheel and pin gear.

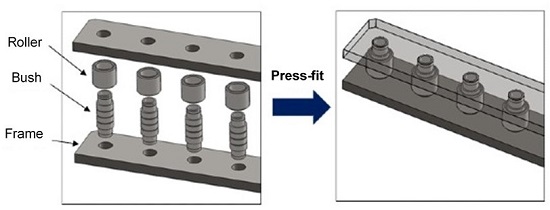

The basic structure of a pin rack/pin wheel is almost the same as that of a chain, with bushings press fit into a frame of any shape and rollers inserted.

<Reference> Chain structure

Pin gear drive unit^​Unit Application Examples

Our wide range of Pin gear drive unit are used in a variety of applications.

Other application examples can be found here

Movements that Pin gear drive unit can provide

・Rotate

Application examples:

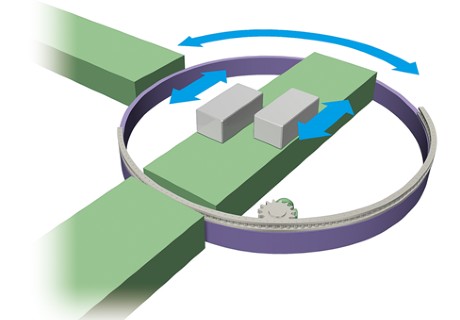

turntable

point:
Segment system allows for large diameter layouts
It has been used on tables with a diameter of 10m or more.

Turning

・Rotate

Application examples:

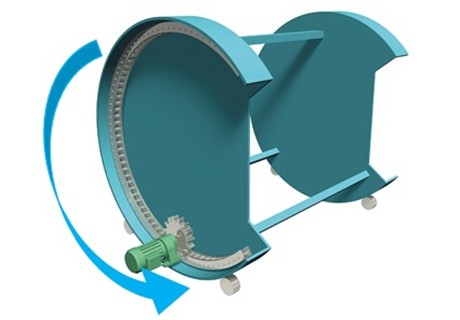

rotary kiln

point:
Easier to install than large gears
Effective even when it is difficult to produce a perfect circle on the equipment side

rotate

・Going straight and back

Application examples:

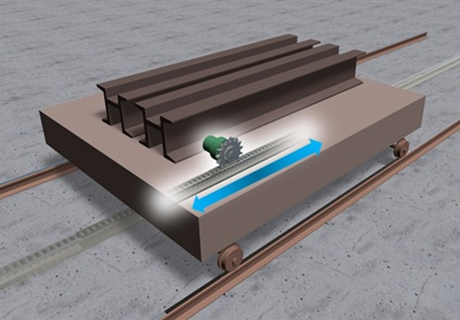

Transport cart

point:
Supports a variety of layouts
Smooth transition from straight to curved lines

straight line + curve

A lineup of specifications to suit your application

Type and specifications	Steel Type Standard Specifications	Steel Type Electroless Nickel Plating specification	Steel Type Highly rust-resistant	Flexible Type	Stainless steel type Standard Specifications	Special specifications
Recommendation	Can be used for general purposes	Standard environments where rust prevention performance is required	Wet environments	Difficult to install	Corrosive atmosphere	Various uses

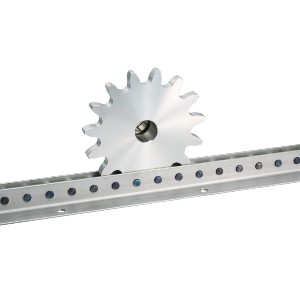

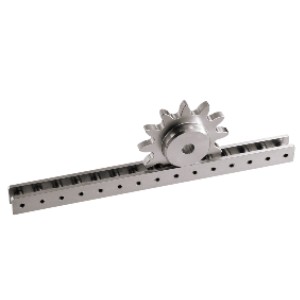

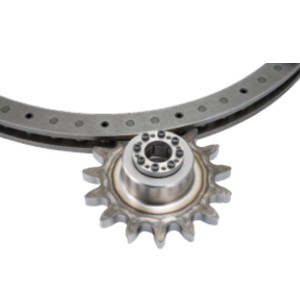

Features	The most versatile type that is compatible with all frame sizes	Uniform surface treatment provides stable corrosion resistance and provides excellent rust prevention performance in standard usage environments.	The allowable tangential load is the same as the standard specification, but the special surface treatment improves corrosion resistance. Demonstrates strong rust prevention properties in severe corrosive environments such as outdoors, near water, and coastal areas.	This type has a wider tolerance for center distance accuracy than the steel type. It is also effective when the installation position of equipment that undergoes thermal expansion is changed during operation.	Suitable for use in corrosive environments such as water, acidic, and alkaline environments. Usable in temperatures ranging from -20°C to 400°C.	Surface treatment specifications, lock pin gear specifications, small backlash specifications, etc. are available. Please contact us.
